Engine Cooling of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Engine Cooling

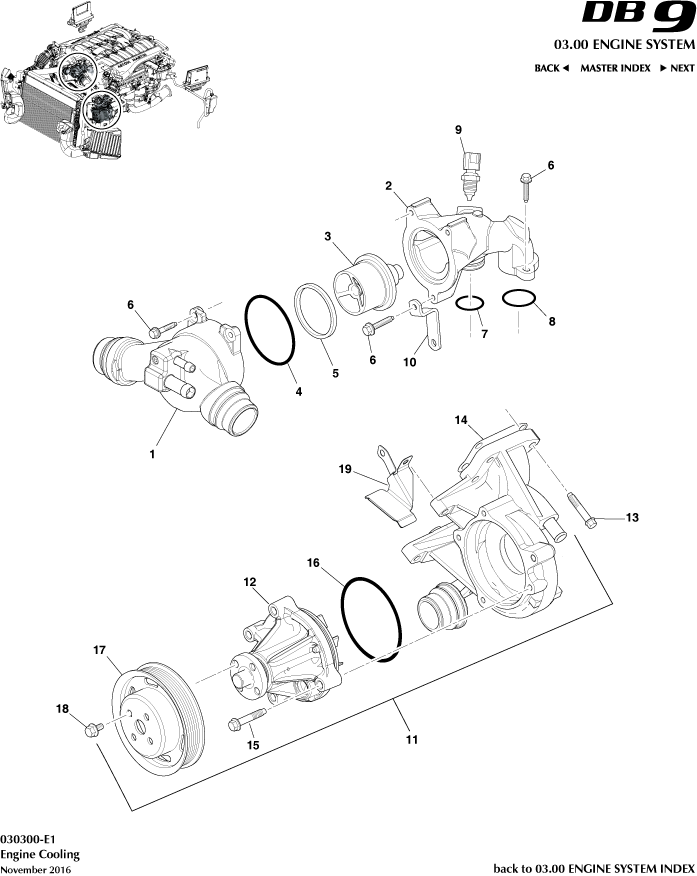

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7G438A586AA	Thermostat Housing	7G438A586AA Thermostat Housing Up To 08MY	-	1	Enquire
-	8G438A586AC	Housing & Connection Assy, Engine Thermostat	8G438A586AC Housing & Connection Assy, Engine Thermostat From 08MY	-	1	Enquire
-	673016533	LH FRONT PILLAR MEMBER REINF	673016533 LH FRONT PILLAR MEMBER REINF From 08MY	-	1	Enquire
-	7G438A588AA	Bracket, Engine Thermostat Connector	7G438A588AA Bracket, Engine Thermostat Connector From 08MY	-	1	Enquire
-	8G438K168AA	WATER PUMP ASSEMBLY	8G438K168AA WATER PUMP ASSEMBLY 08MY	-	1	Enquire
-	8G438K168BA	WATER PUMP ASSEMBLY	8G438K168BA WATER PUMP ASSEMBLY From 09MY	-	1	Enquire
-	697741	BOLT-M8 x 49.3 FLG	697741 BOLT-M8 x 49.3 FLG -	-	3	Enquire
1	673016549	RH FRONT DOOR STRICKER REINF	673016549 RH FRONT DOOR STRICKER REINF Up To 08MY	-	1	Enquire
2	673016492	CPL FRONT HEAD-REST BLACK-R	673016492 CPL FRONT HEAD-REST BLACK-R -	-	1	Enquire
3	4G4E8575AB	Thermostat ARRIVING SOON	4G4E8575AB Thermostat - ARRIVING SOON	-	1	Enquire
4	3285114	O Ring - Seal Housing	3285114 O Ring - Seal Housing -	-	1	Enquire
5	3285116	Seal Thermostat ARRIVING SOON	3285116 Seal Thermostat - ARRIVING SOON	-	1	Enquire
6	702855	BOLT &WASHER-M6x30 HEX FLG PIL	702855 BOLT &WASHER-M6x30 HEX FLG PIL -	-	5	Enquire
7	3285113	O RING SEAL ARRIVING SOON	3285113 O RING SEAL - ARRIVING SOON	-	1	Enquire
8	3285112	O Ring - Water Outlet	3285112 O Ring - Water Outlet -	-	1	Enquire
9	6G433910080	Sensor, Engine Coolant Temperature ARRIVING SOON	6G433910080 Sensor, Engine Coolant Temperature - ARRIVING SOON	-	1	Enquire
10	3285115	BRACKET-WTR X-OVER	3285115 BRACKET-WTR X-OVER Up To 08MY	-	1	Enquire
11	7G438K168AB	WATER PUMP ASSY	7G438K168AB WATER PUMP ASSY Up To 08MY	-	1	Enquire
12	4G430510957	WATER PUMP (NOSE CONE ASSEMBLY)	4G430510957 WATER PUMP (NOSE CONE ASSEMBLY) -	-	1	Enquire
13	702842	Bolt, M8 x 1.25 x 41, Hex Flange Head	702842 Bolt, M8 x 1.25 x 41, Hex Flange Head -	-	3	Enquire
14	585382	Gasket, Water Pump	585382 Gasket, Water Pump Housing to Block	-	1	Enquire
15	22AB711GP	PLUG 23X1.7-2.2	22AB711GP PLUG 23X1.7-2.2 -	$20.95	4
16	1R123210531	WATER PUMP PRESS IN SEAL	1R123210531 WATER PUMP PRESS IN SEAL -	-	1	Enquire
17	585104	Pulley, Water Pump	585104 Pulley, Water Pump -	-	1	Enquire
18	702843	Screw and Washer, M8 x 1.25 x 19, Hex Head	702843 Screw and Washer, M8 x 1.25 x 19, Hex Head -	-	4	Enquire
19	4G4318482AA	Hose Guard, Water Pump	4G4318482AA Hose Guard, Water Pump -	-	1	Enquire
