Engine Cooling (Line Fit) of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

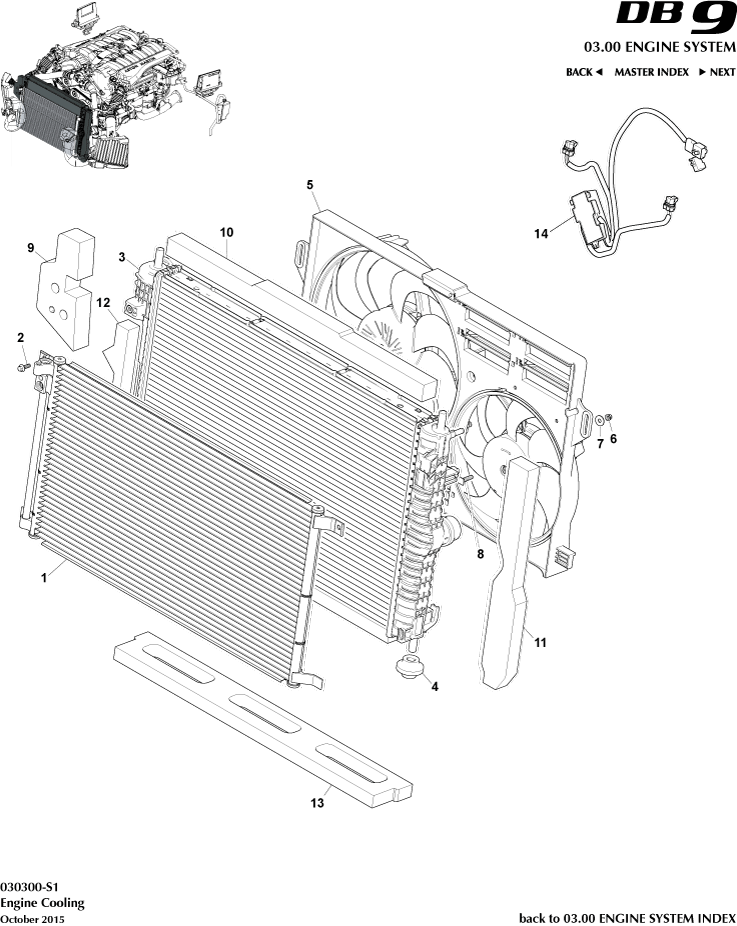

Aston Martin GT DB9 (2004-2017) - Engine Cooling (Line Fit)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D338005AC	RADIATOR	8D338005AC RADIATOR From 08MY	-	1	Enquire
-	673016169	CPL OUTER ROOF PANEL	673016169 CPL OUTER ROOF PANEL Extreme cooling pack	-	1	Enquire
-	6G438B414AA	MOUNTING BUSH	6G438B414AA MOUNTING BUSH Extreme cooling pack	-	4	Enquire
-	8D338C607AC	FAN MODULE	8D338C607AC FAN MODULE From 08MY	-	1	Enquire
-	703168	NUT M6 HF PTM 8	703168 NUT M6 HF PTM 8 From 08MY	-	2	Enquire
-	8D338N301AA	Foam Seal - Upper Fan Module	8D338N301AA Foam Seal - Upper Fan Module From 08MY	-	1	Enquire
-	6G438N301AA	Seal, radiator upper	6G438N301AA Seal, radiator upper Extreme cooling pack	-	1	Enquire
-	8D33F8B171AA	FOAM SEAL - L/HAND	8D33F8B171AA FOAM SEAL - L/HAND From 08MY	-	1	Enquire
-	8D33F8B170AA	FOAM SEAL - R/HAND	8D33F8B170AA FOAM SEAL - R/HAND From 08MY	-	1	Enquire
-	4G43F8B171AA	SEAL RADIATOR -LH/RH	4G43F8B171AA SEAL RADIATOR -LH/RH Extreme Cooling Pack	-	1	Enquire
-	8D338C477AA	FOAM SEAL - LOWER	8D338C477AA FOAM SEAL - LOWER From 08MY	-	1	Enquire
-	6G438C477AA	Seal, radiator lower	6G438C477AA Seal, radiator lower Extreme cooling pack	-	1	Enquire
-	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	4G433710962 FUSE 80 AMP- COOLING FAN MOTOR -	-	1	Enquire
-	1R12322666AAPK	COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	1R12322666AAPK COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12 -	-	A/R	Enquire
1	9G4319710AA	Condenser	9G4319710AA Condenser -	-	1	Enquire
2	703750	Bolt, M6 x 20, Hex Flg Hd	703750 Bolt, M6 x 20, Hex Flg Hd -	-	1	Enquire
3	32121574AD	Radiator	32121574AD Radiator Up To 08MY	-	1	Enquire
4	3285101PK	Bush Mounting Upper (Pack of 2)	3285101PK Bush Mounting Upper (Pack of 2) -	-	4	Enquire
5	4G438C607AA	Assembly Cooling Fan Cowl	4G438C607AA Assembly Cooling Fan Cowl Up To 08MY	-	1	Enquire
6	697122	NUT M6 NYLOC	697122 NUT M6 NYLOC Up To 08MY	-	2	Enquire
7	699614	WASHER 22 X 6.8 X 2 STAINLESS	699614 WASHER 22 X 6.8 X 2 STAINLESS -	-	2	Enquire
8	703728	Screw, M6 x 19, Square Head	703728 Screw, M6 x 19, Square Head -	-	2	Enquire
9	4G43C8585BA	Foam Pad	4G43C8585BA Foam Pad -	-	1	Enquire
10	4G438N301AB	SEAL RADIATOR UPPER	4G438N301AB SEAL RADIATOR UPPER Up To 08MY	-	1	Enquire
11	4G43F8B171AA	SEAL RADIATOR -LH/RH	4G43F8B171AA SEAL RADIATOR -LH/RH Up To 08MY	-	1	Enquire
12	4G43F8B171AA	SEAL RADIATOR -LH/RH	4G43F8B171AA SEAL RADIATOR -LH/RH Up To 08MY	-	1	Enquire
13	4G438C477AB	Foam Seal - Bottom	4G438C477AB Foam Seal - Bottom Up To 08MY	-	1	Enquire
14	4G433710479	ELECTRONIC MODULATOR - COOLING FAN & COWL ASSEMBLY ARRIVING SOON	4G433710479 ELECTRONIC MODULATOR - COOLING FAN & COWL ASSEMBLY Up To 08MY ARRIVING SOON	-	1	Enquire
