Accessory Drive of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Accessory Drive

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

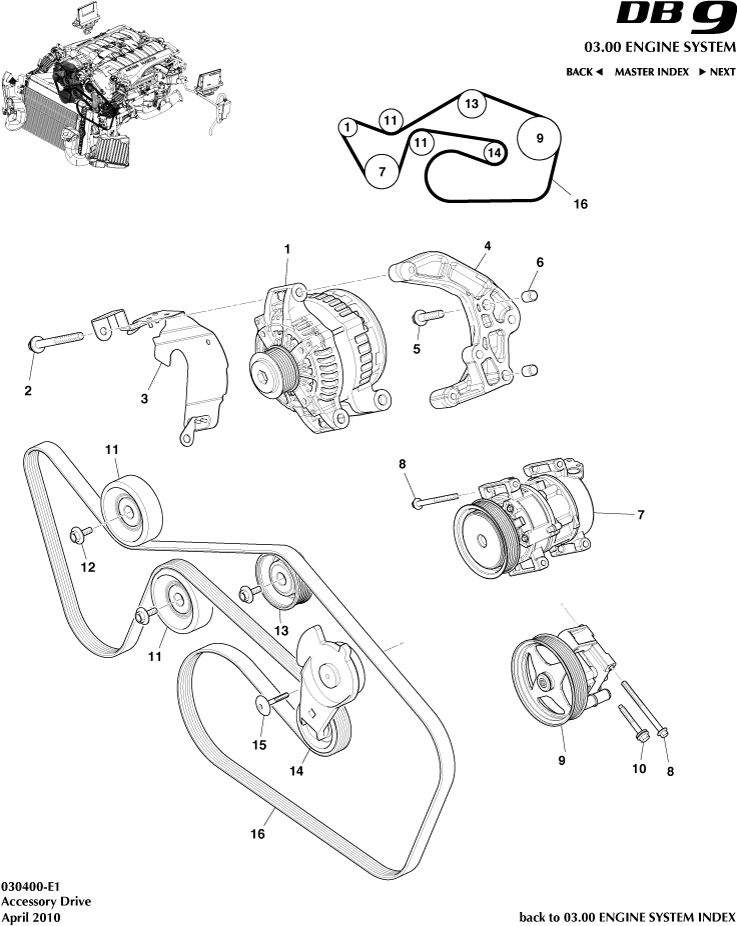

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4310A380AA	CAP ASY ALT	4G4310A380AA CAP ASY ALT 07/08MY	-	1	Enquire
-	4G4310300AC	ALT ASY	4G4310300AC ALT ASY 07/08MY	-	1	Enquire
-	702554	Bolt, M10 x 140	702554 Bolt, M10 x 140 -	-	1	Enquire
-	673015447	RH CPL GUIDE	673015447 RH CPL GUIDE -	-	1	Enquire
-	8G4310239BB	BRKT ASY ALT MTG	8G4310239BB BRKT ASY ALT MTG -	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	4	Enquire
-	701147	Bolt and Washer, M8 x 55, Hex Flg Hd	701147 Bolt and Washer, M8 x 55, Hex Flg Hd -	-	2	Enquire
1	8D3310300AA	Alternator, 200A	8D3310300AA Alternator, 200A 09MY	-	1	Enquire
2	702856	BOLT&WASHER-M10x97.5	702856 BOLT&WASHER-M10x97.5 -	-	2	Enquire
3	AD4310A346AA	HEAT SHIELD ALTERNATOR	AD4310A346AA HEAT SHIELD ALTERNATOR -	-	1	Enquire
4	8G4310239CA	BRKT ASY ALT MTG	8G4310239CA BRKT ASY ALT MTG -	-	1	Enquire
5	703692	Bolt, flg, M10x45, Alt bkt to cl hd	703692 Bolt, flg, M10x45, Alt bkt to cl hd -	-	3	Enquire
6	697759	Dowel, hollow, 14.0 X 17.5	697759 Dowel, hollow, 14.0 X 17.5 -	-	2	Enquire
7	6G3319D629AA	COMPRESSOR & CLUTCH	6G3319D629AA COMPRESSOR & CLUTCH -	-	1	Enquire
8	702557	BOLT M8 X 100 HF 8	702557 BOLT M8 X 100 HF 8 09MY	-	6	Enquire
9	4G433A696AC	P/STRG PUMP & PULLEY (ENGINE MOUNTED)	4G433A696AC P/STRG PUMP & PULLEY (ENGINE MOUNTED) -	-	1	Enquire
10	702558	BOLT M8 X 60	702558 BOLT M8 X 60 09MY	-	2	Enquire
11	1R120510488	Pulley, Engine Idler	1R120510488 Pulley, Engine Idler -	-	2	Enquire
12	703702	BOLT M8x1.25x24.5	703702 BOLT M8x1.25x24.5 -	-	3	Enquire
13	1R120510530	Idler Pulley Grooved	1R120510530 Idler Pulley Grooved -	-	3	Enquire
14	585368	Tensioner Drive Belt	585368 Tensioner Drive Belt -	-	1	Enquire
15	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Part of item 14	-	1	Enquire
16	ED238620AA	Feed Drive Belt	ED238620AA Feed Drive Belt -	-	1	Enquire
