Engine Structure of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

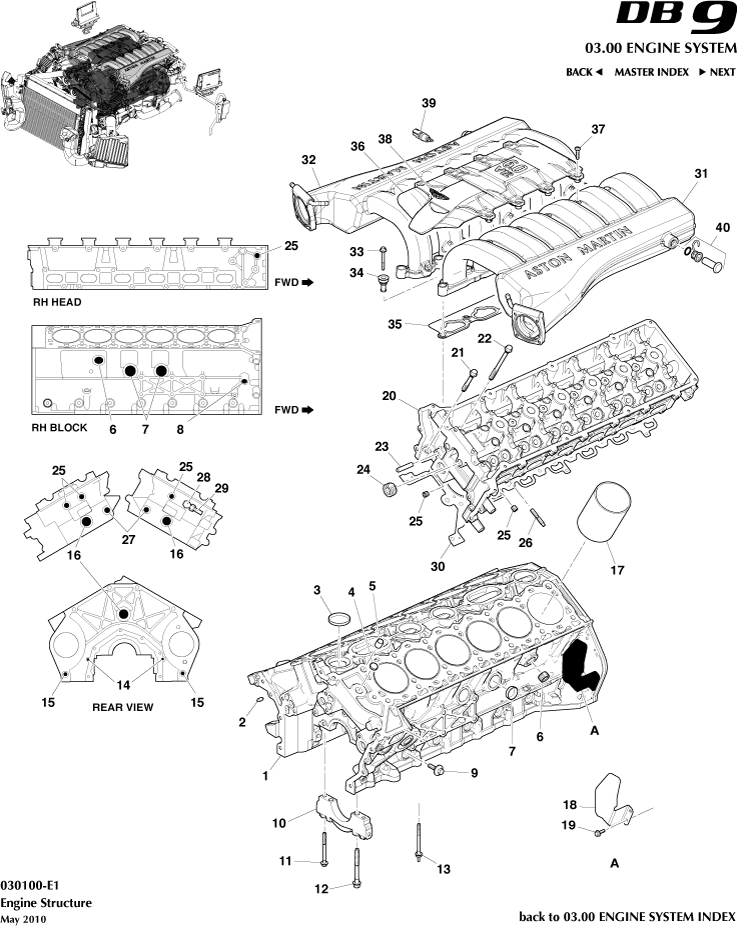

Aston Martin GT DB9 (2004-2017) - Engine Structure

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G436007AA	ENGINE ASSY 6.0L V12	4G436007AA ENGINE ASSY 6.0L V12 Up to (V) A06677 (Up to 06MY)	-	1	Enquire
-	900000871	2 ARMS (installation include	900000871 2 ARMS (installation include Up to (V) A06677 (Up to 06MY)	-	1	Enquire
-	7G436007AA	ENGINE ASSEMBLY 6.0L V12	7G436007AA ENGINE ASSEMBLY 6.0L V12 From (V) A06678 (07MY and 08MY)	-	1	Enquire
-	900000549	DEA EQUIPMENT FOR BAHREIN	900000549 DEA EQUIPMENT FOR BAHREIN From (V) A06678 (07MY and 08MY)	-	1	Enquire
-	7G436007BA	ENGINE ASSY 6.0L V12	7G436007BA ENGINE ASSY 6.0L V12 Le Mans	-	1	Enquire
-	900000489	Workshop Furniture for SUNGS	900000489 Workshop Furniture for SUNGS Le Mans	-	1	Enquire
-	8G436007AA	ENGINE ASSEMBLY 6.0L V12	8G436007AA ENGINE ASSEMBLY 6.0L V12 09MY - 10MY	-	1	Enquire
-	673017487	WINDSHIELD GLASS	673017487 WINDSHIELD GLASS 09MY - 10MY	-	1	Enquire
-	BG436007AA	ENGINE ASSEMBLY 6.0L V12	BG436007AA ENGINE ASSEMBLY 6.0L V12 11MY	-	1	Enquire
-	4G430610846	CYL HEAD ASSY-LH	4G430610846 CYL HEAD ASSY-LH -	-	1	Enquire
-	4G430610845	CYL HEAD ASSY-RH	4G430610845 CYL HEAD ASSY-RH -	-	1	Enquire
-	8G436F093AA	HD ASY CYL W CMPNT	8G436F093AA HD ASY CYL W CMPNT -	-	1	Enquire
-	1R120610468	CYL HEAD GASKET-RH	1R120610468 CYL HEAD GASKET-RH -	-	1	Enquire
-	4G4E9424HC	INTAKE MANIFOLD ASSY	4G4E9424HC INTAKE MANIFOLD ASSY From (V) B04712	-	1	Enquire
-	4G4E9424KA	MANF ASY INTK LH	4G4E9424KA MANF ASY INTK LH 08MY/ 09MY	-	1	Enquire
-	673017136	FRONT HOOD BONNET	673017136 FRONT HOOD BONNET Le Mans	-	1	Enquire
-	4G4E9424GC	INTAKE MAN ASSY RH	4G4E9424GC INTAKE MAN ASSY RH From (V) B04712	-	1	Enquire
-	4G4E9424JA	MANF ASY INTK RH	4G4E9424JA MANF ASY INTK RH 08MY	-	1	Enquire
-	673017126	CPL REAR LID	673017126 CPL REAR LID Le Mans	-	1	Enquire
-	8G439424AB	MANF ASY INTK (RH)	8G439424AB MANF ASY INTK (RH) 09MY	-	1	Enquire
-	673016619	ARMREST WINDOW REGULATOR CAP	673016619 ARMREST WINDOW REGULATOR CAP Le Mans	-	1	Enquire
-	8G439J444AA	SUPPORT BRACE INTAKE MANIFOLD	8G439J444AA SUPPORT BRACE INTAKE MANIFOLD 09MY	-	1	Enquire
-	703703	Bolt, Flange Head M8 x 16	703703 Bolt, Flange Head M8 x 16 Le Mans	-	20	Enquire
-	4G436007AA	ENGINE ASSY 6.0L V12	4G436007AA ENGINE ASSY 6.0L V12 Up to (V) A06677 (Up to 06MY)	-	1	Enquire
-	900000871	2 ARMS (installation include	900000871 2 ARMS (installation include Up to (V) A06677 (Up to 06MY)	-	1	Enquire
-	7G436007AA	ENGINE ASSEMBLY 6.0L V12	7G436007AA ENGINE ASSEMBLY 6.0L V12 From (V) A06678 (07MY and 08MY)	-	1	Enquire
-	900000549	DEA EQUIPMENT FOR BAHREIN	900000549 DEA EQUIPMENT FOR BAHREIN From (V) A06678 (07MY and 08MY)	-	1	Enquire
-	7G436007BA	ENGINE ASSY 6.0L V12	7G436007BA ENGINE ASSY 6.0L V12 Le Mans	-	1	Enquire
-	900000489	Workshop Furniture for SUNGS	900000489 Workshop Furniture for SUNGS Le Mans	-	1	Enquire
-	8G436007AA	ENGINE ASSEMBLY 6.0L V12	8G436007AA ENGINE ASSEMBLY 6.0L V12 09MY - 10MY	-	1	Enquire
-	673017487	WINDSHIELD GLASS	673017487 WINDSHIELD GLASS 09MY - 10MY	-	1	Enquire
-	BG436007AA	ENGINE ASSEMBLY 6.0L V12	BG436007AA ENGINE ASSEMBLY 6.0L V12 11MY	-	1	Enquire
-	4G430610846	CYL HEAD ASSY-LH	4G430610846 CYL HEAD ASSY-LH -	-	1	Enquire
-	4G430610845	CYL HEAD ASSY-RH	4G430610845 CYL HEAD ASSY-RH -	-	1	Enquire
-	8G436F093AA	HD ASY CYL W CMPNT	8G436F093AA HD ASY CYL W CMPNT -	-	1	Enquire
-	1R120610468	CYL HEAD GASKET-RH	1R120610468 CYL HEAD GASKET-RH -	-	1	Enquire
-	4G4E9424HC	INTAKE MANIFOLD ASSY	4G4E9424HC INTAKE MANIFOLD ASSY From (V) B04712	-	1	Enquire
-	4G4E9424KA	MANF ASY INTK LH	4G4E9424KA MANF ASY INTK LH 08MY/ 09MY	-	1	Enquire
-	673017136	FRONT HOOD BONNET	673017136 FRONT HOOD BONNET Le Mans	-	1	Enquire
-	4G4E9424GC	INTAKE MAN ASSY RH	4G4E9424GC INTAKE MAN ASSY RH From (V) B04712	-	1	Enquire
-	4G4E9424JA	MANF ASY INTK RH	4G4E9424JA MANF ASY INTK RH 08MY	-	1	Enquire
-	673017126	CPL REAR LID	673017126 CPL REAR LID Le Mans	-	1	Enquire
-	8G439424AB	MANF ASY INTK (RH)	8G439424AB MANF ASY INTK (RH) 09MY	-	1	Enquire
-	673016619	ARMREST WINDOW REGULATOR CAP	673016619 ARMREST WINDOW REGULATOR CAP Le Mans	-	1	Enquire
-	8G439J444AA	SUPPORT BRACE INTAKE MANIFOLD	8G439J444AA SUPPORT BRACE INTAKE MANIFOLD 09MY	-	1	Enquire
-	703703	Bolt, Flange Head M8 x 16	703703 Bolt, Flange Head M8 x 16 Le Mans	-	20	Enquire
1	4G4E6010AC	CYLINDER BLOCK ASSY	4G4E6010AC CYLINDER BLOCK ASSY -	-	1	Enquire
1	4G4E6010AC	CYLINDER BLOCK ASSY	4G4E6010AC CYLINDER BLOCK ASSY -	-	1	Enquire
2	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18 -	-	2	Enquire
2	184995	Dowel, 8 x 18	184995 Dowel, 8 x 18 -	-	2	Enquire
3	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup -	-	4	Enquire
3	185000	Plug, 52.6 dia cup	185000 Plug, 52.6 dia cup -	-	4	Enquire
4	185001	Plug, Cup Expansion	185001 Plug, Cup Expansion -	-	1	Enquire
4	185001	Plug, Cup Expansion	185001 Plug, Cup Expansion -	-	1	Enquire
5	184994	Dowel, 16 x 19 IN STOCK	184994 Dowel, 16 x 19 - IN STOCK	-	4	Enquire
5	184994	Dowel, 16 x 19 IN STOCK	184994 Dowel, 16 x 19 - IN STOCK	-	4	Enquire
6	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	2	Enquire
6	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	2	Enquire
7	184997	Plug 1.26 Cup (32mm) IN STOCK	184997 Plug 1.26 Cup (32mm) - IN STOCK	-	4	Enquire
7	184997	Plug 1.26 Cup (32mm) IN STOCK	184997 Plug 1.26 Cup (32mm) - IN STOCK	-	4	Enquire
8	184999	PLUG-PIPE-SHORT	184999 PLUG-PIPE-SHORT -	-	7	Enquire
8	184999	PLUG-PIPE-SHORT	184999 PLUG-PIPE-SHORT -	-	7	Enquire
9	4G430110819	Bolt Main Bearing Cap IN STOCK	4G430110819 Bolt Main Bearing Cap ALWAYS REPLACE. DO NOT RE-USE IN STOCK	-	14	Enquire
9	4G430110819	Bolt Main Bearing Cap IN STOCK	4G430110819 Bolt Main Bearing Cap ALWAYS REPLACE. DO NOT RE-USE IN STOCK	-	14	Enquire
10	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	1R120110678 CAP-CRANKSHAFT MAIN BRG-REAR -	-	7	Enquire
10	1R120110678	CAP-CRANKSHAFT MAIN BRG-REAR	1R120110678 CAP-CRANKSHAFT MAIN BRG-REAR -	-	7	Enquire
11	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91 ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
11	4G430110203	Bolt, M10 x 1.5 x 91	4G430110203 Bolt, M10 x 1.5 x 91 ALWAYS REPLACE. DO NOT RE-USE	-	14	Enquire
12	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head IN STOCK	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head ALWAYS REPLACE. DO NOT RE-USE IN STOCK	-	10	Enquire
12	4G430110202	Bolt, M8 x 1.25 x 82, Hex Head IN STOCK	4G430110202 Bolt, M8 x 1.25 x 82, Hex Head ALWAYS REPLACE. DO NOT RE-USE IN STOCK	-	10	Enquire
13	185133	Stud Bolt, Bearing Caps IN STOCK	185133 Stud Bolt, Bearing Caps ALWAYS REPLACE. DO NOT RE-USE IN STOCK	-	4	Enquire
13	185133	Stud Bolt, Bearing Caps IN STOCK	185133 Stud Bolt, Bearing Caps ALWAYS REPLACE. DO NOT RE-USE IN STOCK	-	4	Enquire
14	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	2	Enquire
14	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	2	Enquire
15	699134	Dowel, Hollow	699134 Dowel, Hollow -	-	2	Enquire
15	699134	Dowel, Hollow	699134 Dowel, Hollow -	-	2	Enquire
16	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	3	Enquire
16	703705	PLUG 3/4x14 PIPE	703705 PLUG 3/4x14 PIPE -	-	3	Enquire
17	7G436055AA	Cylinder Liner, V12 IN STOCK	7G436055AA Cylinder Liner, V12 - IN STOCK	-	12	Enquire
17	7G436055AA	Cylinder Liner, V12 IN STOCK	7G436055AA Cylinder Liner, V12 - IN STOCK	-	12	Enquire
18	8G436K342BB	CRANK SENSOR HEATSHIELD	8G436K342BB CRANK SENSOR HEATSHIELD -	-	1	Enquire
18	8G436K342BB	CRANK SENSOR HEATSHIELD	8G436K342BB CRANK SENSOR HEATSHIELD -	-	1	Enquire
19	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head - IN STOCK	-	2	Enquire
19	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head - IN STOCK	-	2	Enquire
20	SY9Y9142WA	FAN STONE PROTECTION	SY9Y9142WA FAN STONE PROTECTION -	-	1	Enquire
20	SY9Y9142WA	FAN STONE PROTECTION	SY9Y9142WA FAN STONE PROTECTION -	-	1	Enquire
21	703690	Bolt M8 x 63 Hex Flange Head IN STOCK	703690 Bolt M8 x 63 Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE IN STOCK	-	4	Enquire
21	703690	Bolt M8 x 63 Hex Flange Head IN STOCK	703690 Bolt M8 x 63 Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE IN STOCK	-	4	Enquire
22	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	28	Enquire
22	686044	Bolt M10 x 1.5 x 151.5, Hex Flange Head	686044 Bolt M10 x 1.5 x 151.5, Hex Flange Head ALWAYS REPLACE. DO NOT RE-USE	-	28	Enquire
23	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25 -	-	2	Enquire
23	184996	DOWEL-10x49.25	184996 DOWEL-10x49.25 -	-	2	Enquire
24	685032	PLUG-1 x 11.5	685032 PLUG-1 x 11.5 -	-	2	Enquire
24	685032	PLUG-1 x 11.5	685032 PLUG-1 x 11.5 -	-	2	Enquire
25	184999	PLUG-PIPE-SHORT	184999 PLUG-PIPE-SHORT -	-	2	Enquire
25	184999	PLUG-PIPE-SHORT	184999 PLUG-PIPE-SHORT -	-	2	Enquire
26	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head -	-	24	Enquire
26	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head -	-	24	Enquire
27	685031	PLUG-3/8 x 14	685031 PLUG-3/8 x 14 -	-	2	Enquire
27	685031	PLUG-3/8 x 14	685031 PLUG-3/8 x 14 -	-	2	Enquire
28	1R1E9B339AB	FTG-OIL PRESS SDR	1R1E9B339AB FTG-OIL PRESS SDR -	-	1	Enquire
28	1R1E9B339AB	FTG-OIL PRESS SDR	1R1E9B339AB FTG-OIL PRESS SDR -	-	1	Enquire
29	1R123910532	Switch, Oil Pressure IN STOCK	1R123910532 Switch, Oil Pressure - IN STOCK	-	1	Enquire
29	1R123910532	Switch, Oil Pressure IN STOCK	1R123910532 Switch, Oil Pressure - IN STOCK	-	1	Enquire
30	1R120610469	CYL HEAD GASKET-LH	1R120610469 CYL HEAD GASKET-LH -	-	1	Enquire
30	1R120610469	CYL HEAD GASKET-LH	1R120610469 CYL HEAD GASKET-LH -	-	1	Enquire
31	4G4E9424HB	INTAKE MANIFOLD ASSEMBLY LH	4G4E9424HB INTAKE MANIFOLD ASSEMBLY LH Up to (V) B04711	-	1	Enquire
31	4G4E9424HB	INTAKE MANIFOLD ASSEMBLY LH	4G4E9424HB INTAKE MANIFOLD ASSEMBLY LH Up to (V) B04711	-	1	Enquire
32	4G4E9424GB	INTAKE MANIFOLD ASSEMBLY RH	4G4E9424GB INTAKE MANIFOLD ASSEMBLY RH Up to (V) B04711	-	1	Enquire
32	4G4E9424GB	INTAKE MANIFOLD ASSEMBLY RH	4G4E9424GB INTAKE MANIFOLD ASSEMBLY RH Up to (V) B04711	-	1	Enquire
33	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 IN STOCK	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 - IN STOCK	-	14	Enquire
33	702852	BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 IN STOCK	702852 BOLT-M6x1.0x47 HEX FLANGE HEAD GRADE 8.8 - IN STOCK	-	14	Enquire
34	4G430810002	Isolator, Intake, Manifold IN STOCK	4G430810002 Isolator, Intake, Manifold - IN STOCK	-	14	Enquire
34	4G430810002	Isolator, Intake, Manifold IN STOCK	4G430810002 Isolator, Intake, Manifold - IN STOCK	-	14	Enquire
35	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2) IN STOCK	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) - IN STOCK	-	2	Enquire
35	1R120810077PK	Inlet Manifold Head Gasket (Pack of 2) IN STOCK	1R120810077PK Inlet Manifold Head Gasket (Pack of 2) - IN STOCK	-	2	Enquire
36	4G4E9J444CA	SUPPORT BRACE INTAKE MANIFOLD	4G4E9J444CA SUPPORT BRACE INTAKE MANIFOLD -	-	1	Enquire
36	4G4E9J444CA	SUPPORT BRACE INTAKE MANIFOLD	4G4E9J444CA SUPPORT BRACE INTAKE MANIFOLD -	-	1	Enquire
37	702847	SCREW-M6x25 PAN INT LOB 8 IN STOCK	702847 SCREW-M6x25 PAN INT LOB 8 - IN STOCK	-	8	Enquire
37	702847	SCREW-M6x25 PAN INT LOB 8 IN STOCK	702847 SCREW-M6x25 PAN INT LOB 8 - IN STOCK	-	8	Enquire
38	4G43001B46BB	MANIFOLD BADGE	4G43001B46BB MANIFOLD BADGE -	-	1	Enquire
38	4G43001B46BB	MANIFOLD BADGE	4G43001B46BB MANIFOLD BADGE -	-	1	Enquire
39	6G430810064	AIR TEMP SENSOR	6G430810064 AIR TEMP SENSOR -	-	1	Enquire
39	6G430810064	AIR TEMP SENSOR	6G430810064 AIR TEMP SENSOR -	-	1	Enquire
40	705136	CARTRIDGE ASSY	705136 CARTRIDGE ASSY -	-	1	Enquire
40	705136	CARTRIDGE ASSY	705136 CARTRIDGE ASSY -	-	1	Enquire
