Front Seat Assembly of Aston Martin Aston Martin DBS V12

View All

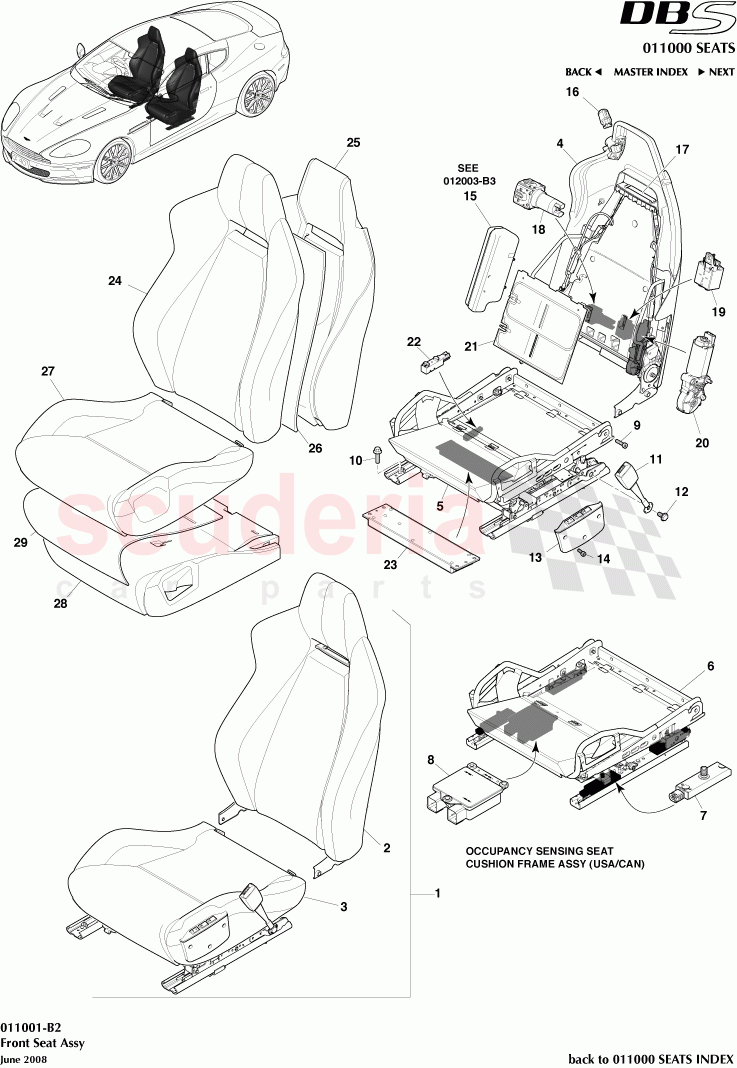

Aston Martin DBS V12 - Front Seat Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D3360008BAW	ASSY FRONT SEAT RHS	Enquire	To Order
	8D3360009BAW	ASSY FRONT SEAT LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3360136BAW	FRONT SEAT SQUAB RH TRIMMED ASSY	Enquire	To Order
	8D3360137BAW	FRONT SEAT SQUAB LH TRIMMED ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3360050BAW	FRONT SEAT CUSHION TRIMMED ASSY RH	Enquire	To Order
	8D3360051BAW	COVER ASSY FRONT SEAT CUSHION LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4364800AC	Squab Frame, Front Seat, RH, Memory	Enquire	To Order
	CG4364802AC	Squab Frame, Front Seat, LH, Memory	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	Enquire	To Order
	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43625B02AB	Sensor, passenger seat weight	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43625B00CC	Module, Passenger Seat Weight	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4361538AB	M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	706423	SCREW-M8 x 25 HF PI	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43613K22BD	Buckle Assembly, Front Seatbelt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	Enquire	To Order
	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43N014740AA	Screw, M6 x 16, Socket Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410690	Airbag, Side, RH	Enquire	To Order
	4G437410689	Airbag, Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33062A00BB	GLOVEBOX SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43605W00ACW	Strap, Squab Release, Manual Override	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3365532AA	Pump, Lumbar Support Air	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3365524AA	Valve, Lumbar Support Air	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410127	Kit, Squab Motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3365500AA	LUMBAR SUPPORT BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314B426AB	Sensor, seat track position	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	92057	SEAT ECU-DRIVER	Enquire	To Order
	92057	SEAT ECU-DRIVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD3364572BAW	COVER ASSY SPORTS SEAT	Enquire	To Order
	AD3364573BAW	COVER ASSY SQUAB SPORTS SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G434D9514AB	SEAT BACK FOAM LH	Enquire	To Order
	7G434D9513AB	SQUAB FOAM RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314D696AB	Heating Element, Squab	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3362900BAW	COVER ASSY FRONT SEAT CUSHION RH	Enquire	To Order
	8D3362901BAW	COVER ASSY FRONT SEAT CUSHION LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439515AD	Foam, cushion, RH	Enquire	To Order
	8G439516AD	Foam, cushion, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G437411070	SEAT HARNESS	Enquire	To Order
	7G4314D698AC	Element, Seat Base Heater	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D3360008BAW	ASSY FRONT SEAT RHS	8D3360008BAW ASSY FRONT SEAT RHS	-	1	Enquire
1	8D3360009BAW	ASSY FRONT SEAT LHS	8D3360009BAW ASSY FRONT SEAT LHS	-	1	Enquire
2	8D3360136BAW	FRONT SEAT SQUAB RH TRIMMED ASSY	8D3360136BAW FRONT SEAT SQUAB RH TRIMMED ASSY	-	1	Enquire
2	8D3360137BAW	FRONT SEAT SQUAB LH TRIMMED ASSY	8D3360137BAW FRONT SEAT SQUAB LH TRIMMED ASSY	-	1	Enquire
3	8D3360050BAW	FRONT SEAT CUSHION TRIMMED ASSY RH	8D3360050BAW FRONT SEAT CUSHION TRIMMED ASSY RH	-	1	Enquire
3	8D3360051BAW	COVER ASSY FRONT SEAT CUSHION LH	8D3360051BAW COVER ASSY FRONT SEAT CUSHION LH	-	1	Enquire
4	CG4364800AC	Squab Frame, Front Seat, RH, Memory	CG4364800AC Squab Frame, Front Seat, RH, Memory	-	1	Enquire
4	CG4364802AC	Squab Frame, Front Seat, LH, Memory	CG4364802AC Squab Frame, Front Seat, LH, Memory	-	1	Enquire
5	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting USA/Can	-	1	Enquire
5	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting ROW	-	2	Enquire
6	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS USA/Can	-	1	Enquire
7	7G43625B02AB	Sensor, passenger seat weight	7G43625B02AB Sensor, passenger seat weight USA/Can	-	1	Enquire
8	7G43625B00CC	Module, Passenger Seat Weight	7G43625B00CC Module, Passenger Seat Weight USA/Can	-	1	Enquire
9	4G4361538AB	M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	-	4	Enquire
10	706423	SCREW-M8 x 25 HF PI	706423 SCREW-M8 x 25 HF PI	-	4	Enquire
11	4G43613K22BD	Buckle Assembly, Front Seatbelt	4G43613K22BD Buckle Assembly, Front Seatbelt	-	2	Enquire
13	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	-	1	Enquire
13	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	7G4314E693BA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	-	2	Enquire
14	7G43N014740AA	Screw, M6 x 16, Socket Head	7G43N014740AA Screw, M6 x 16, Socket Head	-	3	Enquire
15	4G437410690	Airbag, Side, RH	4G437410690 Airbag, Side, RH	-	1	Enquire
15	4G437410689	Airbag, Side, LH	4G437410689 Airbag, Side, LH	-	1	Enquire
16	6G33062A00BB	GLOVEBOX SWITCH	6G33062A00BB GLOVEBOX SWITCH	-	1	Enquire
17	7G43605W00ACW	Strap, Squab Release, Manual Override	7G43605W00ACW Strap, Squab Release, Manual Override	-	2	Enquire
18	8G3365532AA	Pump, Lumbar Support Air	8G3365532AA Pump, Lumbar Support Air	-	1	Enquire
19	8G3365524AA	Valve, Lumbar Support Air	8G3365524AA Valve, Lumbar Support Air	-	1	Enquire
20	4G437410127	Kit, Squab Motor	4G437410127 Kit, Squab Motor	-	1	Enquire
21	8G3365500AA	LUMBAR SUPPORT BAG	8G3365500AA LUMBAR SUPPORT BAG	-	1	Enquire
22	7G4314B426AB	Sensor, seat track position	7G4314B426AB Sensor, seat track position	-	1	Enquire
23	92057	SEAT ECU-DRIVER	92057 SEAT ECU-DRIVER Passenger	-	1	Enquire
23	92057	SEAT ECU-DRIVER	92057 SEAT ECU-DRIVER Driver	-	1	Enquire
24	AD3364572BAW	COVER ASSY SPORTS SEAT	AD3364572BAW COVER ASSY SPORTS SEAT	-	1	Enquire
24	AD3364573BAW	COVER ASSY SQUAB SPORTS SEAT	AD3364573BAW COVER ASSY SQUAB SPORTS SEAT	-	1	Enquire
25	7G434D9514AB	SEAT BACK FOAM LH	7G434D9514AB SEAT BACK FOAM LH	-	1	Enquire
25	7G434D9513AB	SQUAB FOAM RH	7G434D9513AB SQUAB FOAM RH	-	1	Enquire
26	7G4314D696AB	Heating Element, Squab	7G4314D696AB Heating Element, Squab	-	2	Enquire
27	8D3362900BAW	COVER ASSY FRONT SEAT CUSHION RH	8D3362900BAW COVER ASSY FRONT SEAT CUSHION RH	-	1	Enquire
27	8D3362901BAW	COVER ASSY FRONT SEAT CUSHION LH	8D3362901BAW COVER ASSY FRONT SEAT CUSHION LH	-	1	Enquire
28	8G439515AD	Foam, cushion, RH	8G439515AD Foam, cushion, RH	-	1	Enquire
28	8G439516AD	Foam, cushion, LH	8G439516AD Foam, cushion, LH	-	1	Enquire
29	7G437411070	SEAT HARNESS	7G437411070 SEAT HARNESS Not illustrated	-	1	Enquire
29	7G4314D698AC	Element, Seat Base Heater	7G4314D698AC Element, Seat Base Heater	-	2	Enquire
