Body Side Quarter Trim Assembly (Coupe) of Aston Martin Aston Martin DBS V12

View All

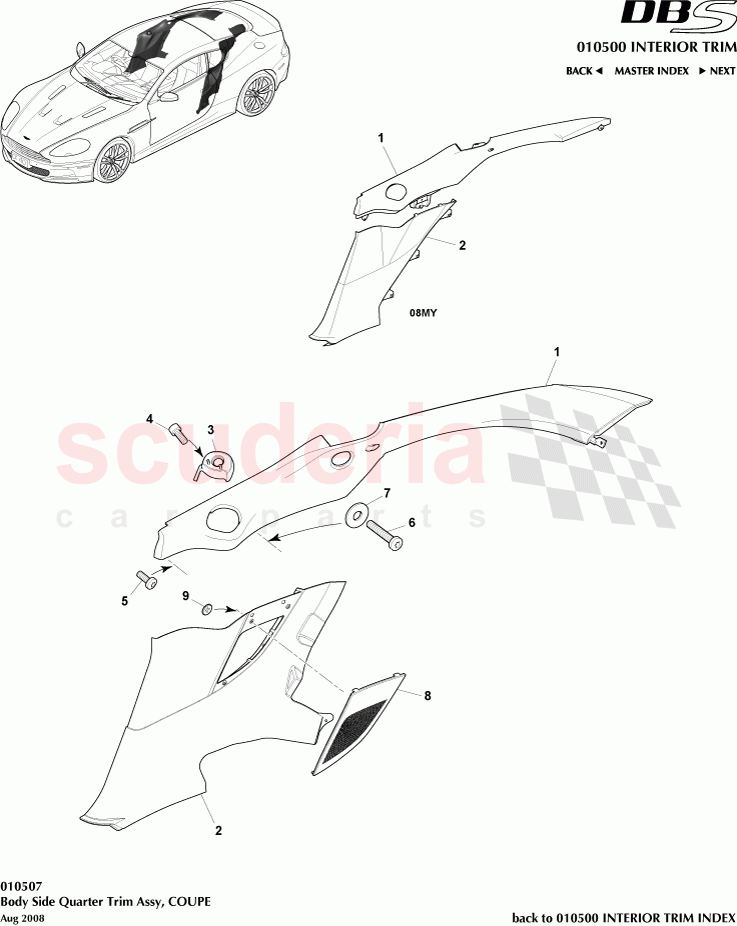

Aston Martin DBS V12 - Body Side Quarter Trim Assembly (Coupe)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9D3331112AAW	ASSY REAR QUARTER UPPER TRIMMED RH	Enquire	To Order
	9D3331113AAW	ASSY REAR QUARTER UPPER TRIMMED LH	Enquire	To Order
	8D3331112AFW	ASSY REAR QUARTER UPPER TRIMMED RH	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9D3331012BAW	PANEL ASSSY QUARTER TRIM LOWERS RH 2+2	Enquire	To Order
	9D3331013BAW	PANEL ASSY QUARTER TRIM LOWERS LH 2+2	Enquire	To Order
	9D3331012AAW	Panel, rear qrtr lower trimmed, RH, B&O	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4324858AEW	Bezel Assembly, Front Seat Belt, RH	Enquire	To Order
	4G4324859AEW	Bezel Assembly, Front Seat Belt, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43V850063AA	Screw, Cap Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703175	SCREW M4 x 10 PAN TORX CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703177	M5 TORX SCREW CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33310B08BA	Speaker Grille, Black Rear Quarter Lower, RH	Enquire	To Order
	9D33310B09BA	Speaker Grille, Black Rear Quarter Lower, LH	Enquire	To Order
	9D33310B08AC	Speaker Grille, Rear Quarter Lower, RH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9D3334793AA	Washer, Lock	Enquire	To Order
	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9D3331112AAW	ASSY REAR QUARTER UPPER TRIMMED RH	9D3331112AAW ASSY REAR QUARTER UPPER TRIMMED RH 9.5MY	-	1	Enquire
1	9D3331113AAW	ASSY REAR QUARTER UPPER TRIMMED LH	9D3331113AAW ASSY REAR QUARTER UPPER TRIMMED LH 9.5MY	-	1	Enquire
1	8D3331112AFW	ASSY REAR QUARTER UPPER TRIMMED RH	8D3331112AFW ASSY REAR QUARTER UPPER TRIMMED RH	-	1	Enquire
1	8D3331113AFW	ASSY REAR QUARTER UPPER TRIMMED LH	8D3331113AFW ASSY REAR QUARTER UPPER TRIMMED LH	-	1	Enquire
1	8D3331012ABW	PANEL ASSY QUARTER TRIM LOWERS RH	8D3331012ABW PANEL ASSY QUARTER TRIM LOWERS RH	-	1	Enquire
2	9D3331012BAW	PANEL ASSSY QUARTER TRIM LOWERS RH 2+2	9D3331012BAW PANEL ASSSY QUARTER TRIM LOWERS RH 2+2 9.5MY	-	1	Enquire
2	9D3331013BAW	PANEL ASSY QUARTER TRIM LOWERS LH 2+2	9D3331013BAW PANEL ASSY QUARTER TRIM LOWERS LH 2+2 9.5MY	-	1	Enquire
2	9D3331012AAW	Panel, rear qrtr lower trimmed, RH, B&O	9D3331012AAW Panel, rear qrtr lower trimmed, RH, B&O 9.5MY	-	1	Enquire
2	9D3331013AAW	Panel, rear qrtr lower trimmed, LH, B&O	9D3331013AAW Panel, rear qrtr lower trimmed, LH, B&O 9.5MY	-	1	Enquire
2	8D3331013ABW	PANEL ASSY QUARTER TRIM LOWERS LH	8D3331013ABW PANEL ASSY QUARTER TRIM LOWERS LH	-	1	Enquire
3	4G4324858AEW	Bezel Assembly, Front Seat Belt, RH	4G4324858AEW Bezel Assembly, Front Seat Belt, RH	-	1	Enquire
3	4G4324859AEW	Bezel Assembly, Front Seat Belt, LH	4G4324859AEW Bezel Assembly, Front Seat Belt, LH	-	1	Enquire
4	4G43V850063AA	Screw, Cap Hd	4G43V850063AA Screw, Cap Hd	-	2	Enquire
5	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE	-	2	Enquire
6	703177	M5 TORX SCREW CHROME FREE	703177 M5 TORX SCREW CHROME FREE	-	2	Enquire
7	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	2	Enquire
8	9D33310B08BA	Speaker Grille, Black Rear Quarter Lower, RH	9D33310B08BA Speaker Grille, Black Rear Quarter Lower, RH Carbon Edition	-	1	Enquire
8	9D33310B09BA	Speaker Grille, Black Rear Quarter Lower, LH	9D33310B09BA Speaker Grille, Black Rear Quarter Lower, LH Carbon Edition	-	1	Enquire
8	9D33310B08AC	Speaker Grille, Rear Quarter Lower, RH	9D33310B08AC Speaker Grille, Rear Quarter Lower, RH 9.5MY	-	1	Enquire
8	9D33310B09AC	Speaker Grille, Rear Quarter Lower, LH	9D33310B09AC Speaker Grille, Rear Quarter Lower, LH 9.5MY	-	1	Enquire
8	8D33310B08AA	GRILL ASSY SPEAKER QUARTER	8D33310B08AA GRILL ASSY SPEAKER QUARTER	-	1	Enquire
8	8D33310B09AA	GRILL ASSY SPEAKER QUARTER	8D33310B09AA GRILL ASSY SPEAKER QUARTER	-	1	Enquire
9	9D3334793AA	Washer, Lock	9D3334793AA Washer, Lock 3 per grille	-	6	Enquire
9	7G43C2437AAW	CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	7G43C2437AAW CUT FROM ROLL STOCK VELOUR ANTI- SQUEAK TAPE	-	-	Enquire
