Find Your Part

Rear Environment Trim Assembly of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Rear Environment Trim Assembly

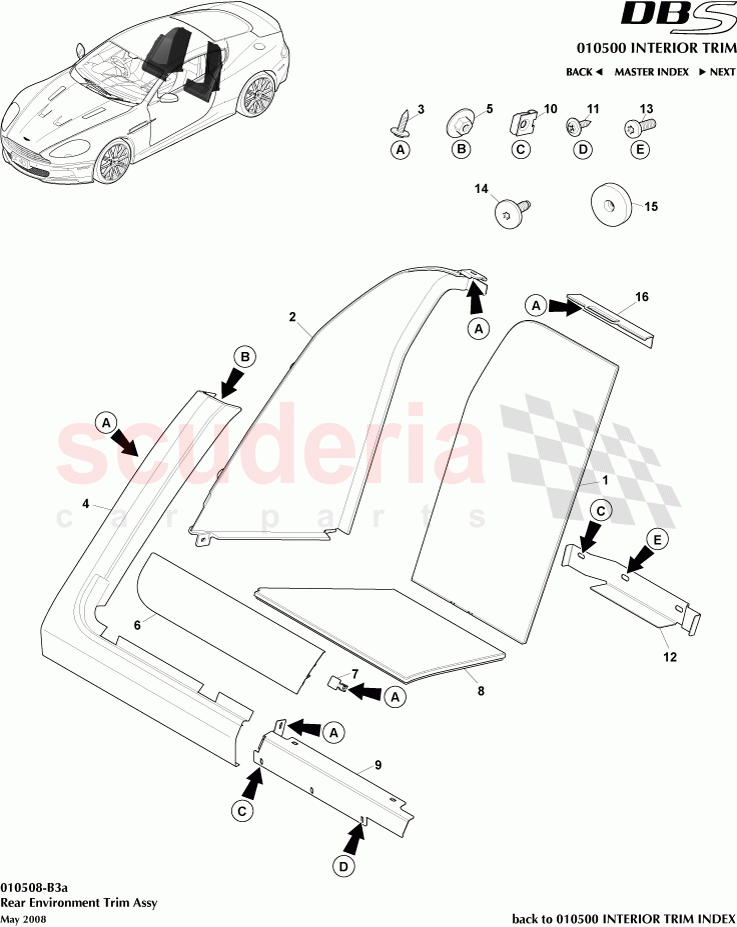

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D3360028ACW	Panel assy, cover rear bulk head, RH	Enquire	To Order
	8D3360029ABW	PNL ASY CVR RR BLK HD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33045C62ACW	Panel assy, stowage compartment, RH	Enquire	To Order
	8D33045C63ACW	Panel assy, stowage compartment, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3360026ADW	PANEL ASSY BLK HD OTR RH	Enquire	To Order
	8D3360027ADW	PANEL ASSY BLK HD OTR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33674A08AC	Finisher, cabin, RH	Enquire	To Order
	8D33674A09AC	Finisher, cabin, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33313A72AB	Bracket, Cabin Finisher, Outboard, RH	Enquire	To Order
	8D33313A73AB	Bracket, Cabin Finisher, Outboard, LH	Enquire	To Order
	8D33313A74AB	Bracket, Cabin Finisher, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D3311766AAW	Panel Assy, Stowage Compartment Lower, RH	Enquire	To Order
	8D3311767AAW	PNL ASY STWG CMPT LWR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33314A96AC	Bracket, Rear Heel Board, RH	Enquire	To Order
	8D33314A97AC	Bracket, Rear Heel Board, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707613	SCREW M4.2 X 13 FLANGE BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33310A84AB	Bracket, Bulk Head Side, RH	Enquire	To Order
	8D33310A85AB	BRKT BLK HD SD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704701	Screw, M6 x 20, Socket Head Button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C045F70AB	RETAINER PASSENGER AIRBAG COVER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3311768AA	Panel assy, stwg compartment upper, RH	Enquire	To Order
	8D3311769AA	Panel assy, stwg compartment upper, LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D3360028ACW	Panel assy, cover rear bulk head, RH	8D3360028ACW Panel assy, cover rear bulk head, RH	-	1	Enquire
1	8D3360029ABW	PNL ASY CVR RR BLK HD LH	8D3360029ABW PNL ASY CVR RR BLK HD LH	-	1	Enquire
2	8D33045C62ACW	Panel assy, stowage compartment, RH	8D33045C62ACW Panel assy, stowage compartment, RH	-	1	Enquire
2	8D33045C63ACW	Panel assy, stowage compartment, LH	8D33045C63ACW Panel assy, stowage compartment, LH	-	1	Enquire
3	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	28	Enquire
4	8D3360026ADW	PANEL ASSY BLK HD OTR RH	8D3360026ADW PANEL ASSY BLK HD OTR RH	-	1	Enquire
4	8D3360027ADW	PANEL ASSY BLK HD OTR LH	8D3360027ADW PANEL ASSY BLK HD OTR LH	-	1	Enquire
5	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	2	Enquire
6	8D33674A08AC	Finisher, cabin, RH	8D33674A08AC Finisher, cabin, RH	-	1	Enquire
6	8D33674A09AC	Finisher, cabin, LH	8D33674A09AC Finisher, cabin, LH	-	1	Enquire
7	8D33313A72AB	Bracket, Cabin Finisher, Outboard, RH	8D33313A72AB Bracket, Cabin Finisher, Outboard, RH	-	1	Enquire
7	8D33313A73AB	Bracket, Cabin Finisher, Outboard, LH	8D33313A73AB Bracket, Cabin Finisher, Outboard, LH	-	1	Enquire
7	8D33313A74AB	Bracket, Cabin Finisher, RH	8D33313A74AB Bracket, Cabin Finisher, RH	-	1	Enquire
7	8D33313A75AB	Bracket, Cabin Finisher, LH	8D33313A75AB Bracket, Cabin Finisher, LH	-	1	Enquire
8	8D3311766AAW	Panel Assy, Stowage Compartment Lower, RH	8D3311766AAW Panel Assy, Stowage Compartment Lower, RH	-	1	Enquire
8	8D3311767AAW	PNL ASY STWG CMPT LWR LH	8D3311767AAW PNL ASY STWG CMPT LWR LH	-	1	Enquire
9	8D33314A96AC	Bracket, Rear Heel Board, RH	8D33314A96AC Bracket, Rear Heel Board, RH	-	1	Enquire
9	8D33314A97AC	Bracket, Rear Heel Board, LH	8D33314A97AC Bracket, Rear Heel Board, LH	-	1	Enquire
10	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	14	Enquire
11	707613	SCREW M4.2 X 13 FLANGE BLACK	707613 SCREW M4.2 X 13 FLANGE BLACK	-	5	Enquire
12	8D33310A84AB	Bracket, Bulk Head Side, RH	8D33310A84AB Bracket, Bulk Head Side, RH	-	1	Enquire
12	8D33310A85AB	BRKT BLK HD SD LH	8D33310A85AB BRKT BLK HD SD LH	-	1	Enquire
13	704701	Screw, M6 x 20, Socket Head Button	704701 Screw, M6 x 20, Socket Head Button	-	2	Enquire
14	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	2	Enquire
15	4G43C045F70AB	RETAINER PASSENGER AIRBAG COVER PAD	4G43C045F70AB RETAINER PASSENGER AIRBAG COVER PAD	-	10	Enquire
16	8D3311768AA	Panel assy, stwg compartment upper, RH	8D3311768AA Panel assy, stwg compartment upper, RH	-	1	Enquire
16	8D3311769AA	Panel assy, stwg compartment upper, LH	8D3311769AA Panel assy, stwg compartment upper, LH	-	1	Enquire
