Instrument Panel, Sat Nav of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Instrument Panel, Sat Nav

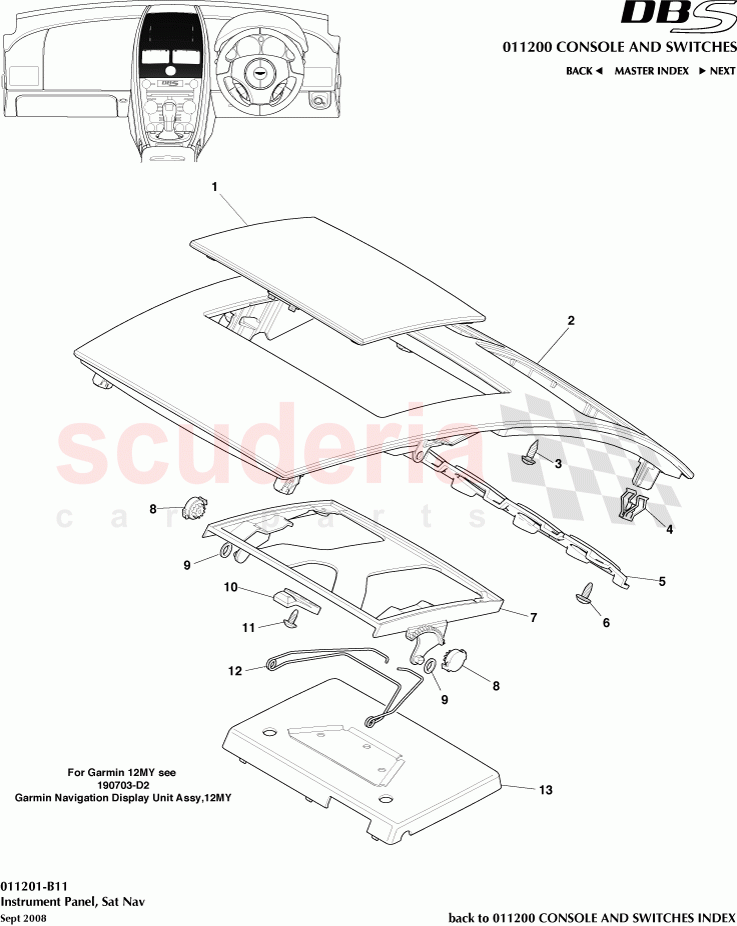

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D33045G37AA	DOOR CONSOLE NAV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BD33045J10DC	VNR NAV AUTO/BLK CF	Enquire	To Order
	CG43045J10PE	NAV SURROUND PIANO	Enquire	To Order
	CG43045J10NE	SAT NAV TRIM SURROUND BLACK	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314A462AB	Retainer, control switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33104101BA	M4 THRD FORM SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318C917AB	BRACKET - NAVIGATION MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3338392AA	SPINDLE DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G338979AA	WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314163AB	LOCATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33104101BA	M4 THRD FORM SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3319363AE	SPRING TORSION 100 x 75 x 1.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33047A05AA	Bezel assy, instrument panel, piano black, auto	Enquire	To Order
	4G436911546	RTI COVER-NAV DISPLY	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D33045G37AA	DOOR CONSOLE NAV	8D33045G37AA DOOR CONSOLE NAV	-	1	Enquire
2	BD33045J10DC	VNR NAV AUTO/BLK CF	BD33045J10DC VNR NAV AUTO/BLK CF Carbon Edition	-	1	Enquire
2	CG43045J10PE	NAV SURROUND PIANO	CG43045J10PE NAV SURROUND PIANO 09MY	-	1	Enquire
2	CG43045J10NE	SAT NAV TRIM SURROUND BLACK	CG43045J10NE SAT NAV TRIM SURROUND BLACK 09MY	-	1	Enquire
2	8D33047A04DA	BEZEL ASSY I/PNL CNTRL SAT MAN	8D33047A04DA BEZEL ASSY I/PNL CNTRL SAT MAN	-	1	Enquire
2	8D33047A04CA	BEZEL ASSY I/PNL CNTRL SAT AUTO	8D33047A04CA BEZEL ASSY I/PNL CNTRL SAT AUTO	-	1	Enquire
3	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED) 09MY	-	12	Enquire
4	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	-	4	Enquire
5	6G3314A462AB	Retainer, control switch	6G3314A462AB Retainer, control switch	-	1	Enquire
6	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW	-	12	Enquire
7	6G3318C917AB	BRACKET - NAVIGATION MOUNTING	6G3318C917AB BRACKET - NAVIGATION MOUNTING	-	1	Enquire
8	6G3338392AA	SPINDLE DAMPER	6G3338392AA SPINDLE DAMPER	-	2	Enquire
9	6G338979AA	WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	6G338979AA WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	-	2	Enquire
10	6G3314163AB	LOCATOR	6G3314163AB LOCATOR	-	2	Enquire
11	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW	-	1	Enquire
12	6G3319363AE	SPRING TORSION 100 x 75 x 1.8	6G3319363AE SPRING TORSION 100 x 75 x 1.8	-	1	Enquire
13	8D33047A05AA	Bezel assy, instrument panel, piano black, auto	8D33047A05AA Bezel assy, instrument panel, piano black, auto 09MY	-	1	Enquire
13	4G436911546	RTI COVER-NAV DISPLY	4G436911546 RTI COVER-NAV DISPLY	-	1	Enquire
