Front Side Door Trim of Aston Martin Aston Martin DBS V12

View All

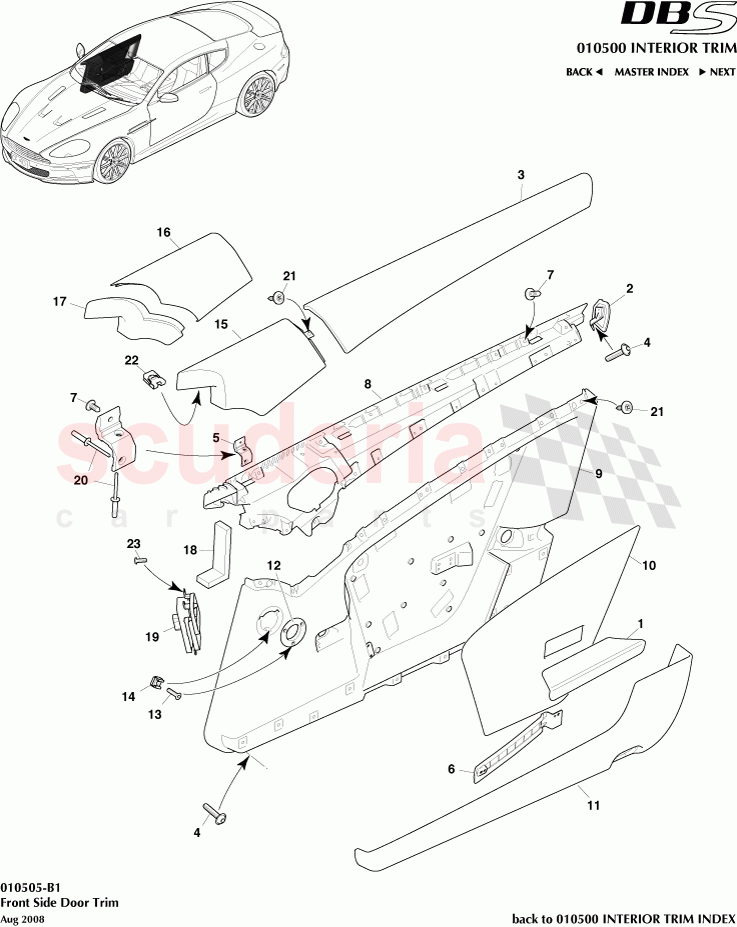

Aston Martin DBS V12 - Front Side Door Trim

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D3324070AC	Pad assy, door armrest upper, RH	Enquire	To Order
	8D3324071AC	Pad assy, door armrest upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33237A76AAW	CAP FRT DR TR RR RH	Enquire	To Order
	8D33237A77AAW	CAP FRT DR TR RR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3323928AAW	LEATHER TOP ROLL RHS	Enquire	To Order
	9D3323929AAW	LEATHER TOP ROLL LHS	Enquire	To Order
	8D3323928ABW	PNL ASSY DR TR ALPQ RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	707623	Screw and Washer, M4 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4320838BA	Retainer, Door Trim Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33240A28AAW	A/RST ASY FRT DR TR RH	Enquire	To Order
	8D33240A29AAW	A/RST ASY FRT DR TR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707613	SCREW M4.2 X 13 FLANGE BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3323900AA	Panel, Front Door Trim Upper, RH	Enquire	To Order
	9D3323901AA	Panel, Front Door Trim Upper, LH	Enquire	To Order
	4G4323900AB	PANEL DOOR TRIM UPPER RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9D3323936AAW	PNL ASSY FRT DR TR LWR RHS	Enquire	To Order
	9D3323937AAW	PNL ASSY FRT DR TR LWR LHS	Enquire	To Order
	8D3323936AAW	Panel assy, front door trim lower, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9D3323864AAW	INSERT ASSEMBLY DOOR TRIM PANEL - RH	Enquire	To Order
	9D3323865AAW	INSERT ASSEMBLY DOOR TRIM PANEL - LH	Enquire	To Order
	8D3323864AAW	INSERT ASSEMBLY DOOR TRIM PANEL - RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D3323718AAW	PKT ASSY DR	Enquire	To Order
	8D3323719AAW	PKT ASSY DR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33C237898AA	Bezel, door trim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4348963AA	Nut, M4 cage	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33C18978AB	Speaker Assy, RH Side Door Top Speaker Grille silver	Enquire	To Order
	9D33C18979AB	Speaker Assy, LH Side Door Top Speaker Grille silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33C18978BA	RH FRONT DOOR B&O SPEAKER GRILLE BLACK	Enquire	To Order
	9D33C18979BA	LEFT HAND SIDE DOOR TOP SPEAKER GRILLE BLACK	Enquire	To Order
	9D33C18978AA	Grill, speaker, front, RH B&O	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	9D3323940AAW	Cover assy, door trim panel upper, RH B&O	Enquire	To Order
	9D3323941AAW	Cover assy, door trim panel upper, LH B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	Enquire	To Order
	4G4302276AB	Seal Venair Outlet Duct Door Lower LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3314717AA	PASSENGER WINDOW LIFT SWITCH	Enquire	To Order
	9D3314540AA	DRIVERS WINDOW LIFT SWITCH	Enquire	To Order
	8G3314717AA	Switch, passenger window	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	701655	Rivet, 4.8 x 6.3-12.7	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703027	SCREW M4x10 PAN HD TORX S/TAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9D3323942EAW	PNL ASY FRT DR TR CO RH	9D3323942EAW PNL ASY FRT DR TR CO RH LHD 9.5MY	-	1	Enquire
-	9D3323942FAW	PNL ASY FRT DR TR CO RH	9D3323942FAW PNL ASY FRT DR TR CO RH RHD 9.5MY	-	1	Enquire
-	9D3323943EAW	Panel assy, front door trim leather, LH B&O	9D3323943EAW Panel assy, front door trim leather, LH B&O LHD 9.5MY	-	1	Enquire
-	9D3323943FAW	PNL ASY FRT DR TR CO LH	9D3323943FAW PNL ASY FRT DR TR CO LH RHD 9.5MY	-	1	Enquire
-	9D3323942GAW	PNL ASY FRT DR TR CO RH	9D3323942GAW PNL ASY FRT DR TR CO RH LHD 9.5MY	-	1	Enquire
-	9D3323942HAW	PNL ASY FRT DR TR CO RH	9D3323942HAW PNL ASY FRT DR TR CO RH RHD 9.5MY	-	1	Enquire
-	9D3323943GAW	Panel assy, front door trim plain, LH B&O	9D3323943GAW Panel assy, front door trim plain, LH B&O LHD 9.5MY	-	1	Enquire
-	9D3323943HAW	Panel assy, front door trim plain, LH B&O	9D3323943HAW Panel assy, front door trim plain, LH B&O RHD 9.5MY	-	1	Enquire
-	8D3323942AAW	PNL ASY FRT DR TR CO RH	8D3323942AAW PNL ASY FRT DR TR CO RH LHD	-	1	Enquire
-	8D3323942BAW	Panel assy, front door trim complete, RH	8D3323942BAW Panel assy, front door trim complete, RH RHD	-	1	Enquire
-	8D3323943AAW	PNL ASY FRT DR TR CO LH	8D3323943AAW PNL ASY FRT DR TR CO LH LHD	-	1	Enquire
-	8D3323943BAW	Panel assy, front door trim complete, LH	8D3323943BAW Panel assy, front door trim complete, LH RHD	-	1	Enquire
1	8D3324070AC	Pad assy, door armrest upper, RH	8D3324070AC Pad assy, door armrest upper, RH	-	1	Enquire
1	8D3324071AC	Pad assy, door armrest upper, LH	8D3324071AC Pad assy, door armrest upper, LH	-	1	Enquire
2	8D33237A76AAW	CAP FRT DR TR RR RH	8D33237A76AAW CAP FRT DR TR RR RH	-	1	Enquire
2	8D33237A77AAW	CAP FRT DR TR RR LH	8D33237A77AAW CAP FRT DR TR RR LH	-	1	Enquire
3	9D3323928AAW	LEATHER TOP ROLL RHS	9D3323928AAW LEATHER TOP ROLL RHS 9.5MY	-	1	Enquire
3	9D3323929AAW	LEATHER TOP ROLL LHS	9D3323929AAW LEATHER TOP ROLL LHS 9.5MY	-	1	Enquire
3	8D3323928ABW	PNL ASSY DR TR ALPQ RH	8D3323928ABW PNL ASSY DR TR ALPQ RH	-	1	Enquire
3	8D3323929ABW	PNL ASSY DR TR ALPQ LH	8D3323929ABW PNL ASSY DR TR ALPQ LH	-	1	Enquire
4	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head	-	12	Enquire
5	AG4320838BA	Retainer, Door Trim Upper	AG4320838BA Retainer, Door Trim Upper	-	8	Enquire
6	8D33240A28AAW	A/RST ASY FRT DR TR RH	8D33240A28AAW A/RST ASY FRT DR TR RH	-	1	Enquire
6	8D33240A29AAW	A/RST ASY FRT DR TR LH	8D33240A29AAW A/RST ASY FRT DR TR LH	-	1	Enquire
7	707613	SCREW M4.2 X 13 FLANGE BLACK	707613 SCREW M4.2 X 13 FLANGE BLACK	-	22	Enquire
8	9D3323900AA	Panel, Front Door Trim Upper, RH	9D3323900AA Panel, Front Door Trim Upper, RH 9.5MY	-	1	Enquire
8	9D3323901AA	Panel, Front Door Trim Upper, LH	9D3323901AA Panel, Front Door Trim Upper, LH 9.5MY	-	1	Enquire
8	4G4323900AB	PANEL DOOR TRIM UPPER RH	4G4323900AB PANEL DOOR TRIM UPPER RH	-	1	Enquire
8	4G4323901AB	PANEL DOOR TRIM UPPER LH	4G4323901AB PANEL DOOR TRIM UPPER LH	-	1	Enquire
9	9D3323936AAW	PNL ASSY FRT DR TR LWR RHS	9D3323936AAW PNL ASSY FRT DR TR LWR RHS 9.5MY	-	1	Enquire
9	9D3323937AAW	PNL ASSY FRT DR TR LWR LHS	9D3323937AAW PNL ASSY FRT DR TR LWR LHS 9.5MY	-	1	Enquire
9	8D3323936AAW	Panel assy, front door trim lower, RH	8D3323936AAW Panel assy, front door trim lower, RH	-	1	Enquire
9	8D3323937AAW	Panel assy, front door trim lower, LH	8D3323937AAW Panel assy, front door trim lower, LH	-	1	Enquire
10	9D3323864AAW	INSERT ASSEMBLY DOOR TRIM PANEL - RH	9D3323864AAW INSERT ASSEMBLY DOOR TRIM PANEL - RH 9.5MY	-	1	Enquire
10	9D3323865AAW	INSERT ASSEMBLY DOOR TRIM PANEL - LH	9D3323865AAW INSERT ASSEMBLY DOOR TRIM PANEL - LH 9.5MY	-	1	Enquire
10	8D3323864AAW	INSERT ASSEMBLY DOOR TRIM PANEL - RH	8D3323864AAW INSERT ASSEMBLY DOOR TRIM PANEL - RH	-	1	Enquire
10	8D3323865AAW	Insert assy, door trim panel, LH	8D3323865AAW Insert assy, door trim panel, LH	-	1	Enquire
11	8D3323718AAW	PKT ASSY DR	8D3323718AAW PKT ASSY DR	-	1	Enquire
11	8D3323719AAW	PKT ASSY DR	8D3323719AAW PKT ASSY DR	-	1	Enquire
12	8D33C237898AA	Bezel, door trim	8D33C237898AA Bezel, door trim	-	2	Enquire
13	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black	-	6	Enquire
14	4G4348963AA	Nut, M4 cage	4G4348963AA Nut, M4 cage	-	6	Enquire
15	9D33C18978AB	Speaker Assy, RH Side Door Top Speaker Grille silver	9D33C18978AB Speaker Assy, RH Side Door Top Speaker Grille silver	-	1	Enquire
15	9D33C18979AB	Speaker Assy, LH Side Door Top Speaker Grille silver	9D33C18979AB Speaker Assy, LH Side Door Top Speaker Grille silver	-	1	Enquire
16	9D33C18978BA	RH FRONT DOOR B&O SPEAKER GRILLE BLACK	9D33C18978BA RH FRONT DOOR B&O SPEAKER GRILLE BLACK Carbon Edition	-	1	Enquire
16	9D33C18979BA	LEFT HAND SIDE DOOR TOP SPEAKER GRILLE BLACK	9D33C18979BA LEFT HAND SIDE DOOR TOP SPEAKER GRILLE BLACK Carbon Edition	-	1	Enquire
16	9D33C18978AA	Grill, speaker, front, RH B&O	9D33C18978AA Grill, speaker, front, RH B&O 9.5MY	-	1	Enquire
16	9D33C18979AA	Grill, speaker, front, LH B&O	9D33C18979AA Grill, speaker, front, LH B&O 9.5MY	-	1	Enquire
17	9D3323940AAW	Cover assy, door trim panel upper, RH B&O	9D3323940AAW Cover assy, door trim panel upper, RH B&O 9.5MY	-	1	Enquire
17	9D3323941AAW	Cover assy, door trim panel upper, LH B&O	9D3323941AAW Cover assy, door trim panel upper, LH B&O 9.5MY	-	1	Enquire
18	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	4G4302275AB Seal Venair Outlet Duct Door Lower RH	-	1	Enquire
18	4G4302276AB	Seal Venair Outlet Duct Door Lower LH	4G4302276AB Seal Venair Outlet Duct Door Lower LH	-	1	Enquire
19	9D3314717AA	PASSENGER WINDOW LIFT SWITCH	9D3314717AA PASSENGER WINDOW LIFT SWITCH 9.5MY	-	1	Enquire
19	9D3314540AA	DRIVERS WINDOW LIFT SWITCH	9D3314540AA DRIVERS WINDOW LIFT SWITCH 9.5MY	-	1	Enquire
19	8G3314717AA	Switch, passenger window	8G3314717AA Switch, passenger window	-	1	Enquire
19	9G3314540AA	Switchpack, Window Lift, Drivers Side	9G3314540AA Switchpack, Window Lift, Drivers Side	-	1	Enquire
20	701655	Rivet, 4.8 x 6.3-12.7	701655 Rivet, 4.8 x 6.3-12.7	-	16	Enquire
21	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	14	Enquire
22	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	6	Enquire
23	703027	SCREW M4x10 PAN HD TORX S/TAP	703027 SCREW M4x10 PAN HD TORX S/TAP	-	8	Enquire
