Floor Trim (RHD) of Aston Martin Aston Martin DBS V12

View All

Aston Martin DBS V12 - Floor Trim (RHD)

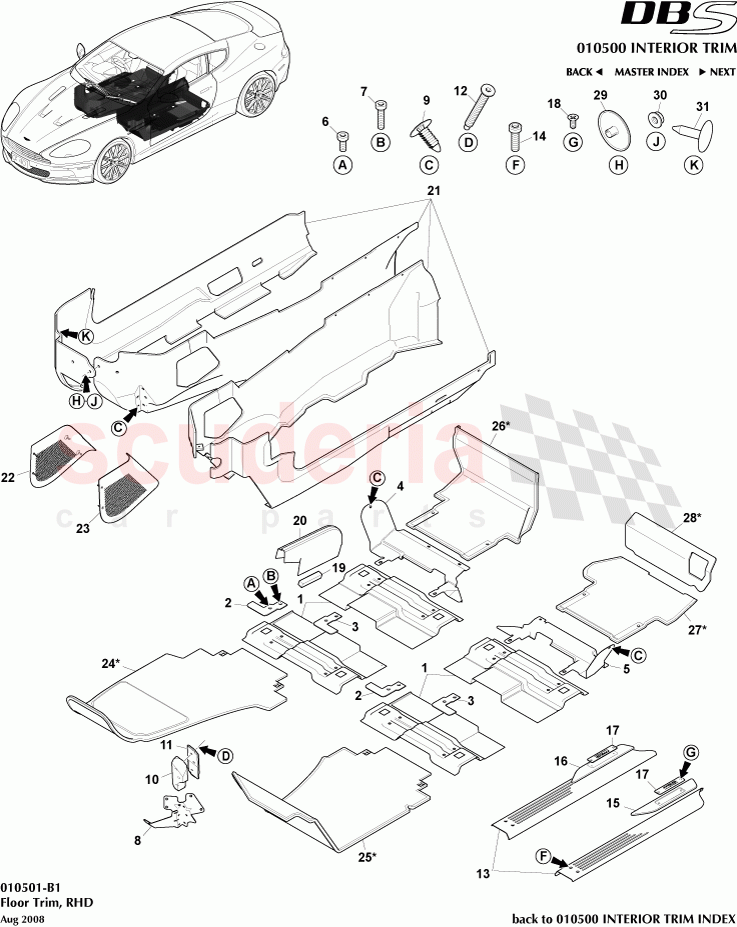

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D33M1H403AB	FLOOR PAN COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33666A40AB	Finisher, Carpet, Common, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33666A41AB	Finisher, Carpet, Common, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43100A90AA	Support Panel, Rear Floor, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43100A91AB	LH REAR FLOOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368D11BA	Screw, M5 x 20, Cap Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368D11AA	Screw, M5 x 12, Cap Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G333N234AB	BRACKET FOOTREST RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33044J08AA	Energy Absorber, Footrest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3312021AA	Cover Plate, Foot Rest, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4313242AC	Scuff Plate, front sill, kit. LH and RH supplied	Enquire	To Order
	8D3313242AE	KIT DOOR PLT SCF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33SS106209AB	Bolt, M6 x 20, Skt Hd	Enquire	To Order
	8D3368D11AA	M6 X 20 SOCKET LOW HEAD BOLT STAINLESS STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313255AAW	SILL NM PAD ASSY LETHER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313254AAW	SILL NM PAD ASSY LEATHER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33132A51AA	NAME PLATE FRONT SILL SCUFF CARBON BLACK DBS	Enquire	To Order
	CD33132A50AA	NM PLT FRT SILL SCF	Enquire	To Order
	8D338010011	NAMEPLATE-FRONT SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697687	SCREW No6 x 9.5 CSK BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43833016BBW	Handbrake gaiter assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33281B10CAW	Kit assy, side carpet, lightweight	Enquire	To Order
	9D33281B10DCW	KIT ASSEMBLY SIDE CARPET RHD HEAVYWEIGHT	Enquire	To Order
	8D33281B10ABW	KIT ASSEMBLY SIDE CARPET RHD LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33311A76DA	FOOTWELL SPKR GRL RH	Enquire	To Order
	9D33311A76CA	Speaker Grille, Footwell, RH, B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33311A77DA	FOOTWELL SPKR GRL LH	Enquire	To Order
	9D33311A77CA	Speaker Grille, Footwell, LH, B&O	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33130A12AAW	Carpet assy, front floor RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33130A10AAW	Carpet assy, front floor LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33130A36ABW	Carpet assy, rear floor RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33130A37ADW	Carpet assy, rear floor LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3310K973ABW	LH RR CARPET BOARD ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3313925AA	Push On Button, M5 x 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33100N00AA	Adhesive Tape, Double Sided	Enquire	To Order
	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D338310052	KIT ASSEMBLY FLOOR CARPET OBSIDIAN BLK RHD - EDGE TRIMMED	8D338310052 KIT ASSEMBLY FLOOR CARPET OBSIDIAN BLK RHD - EDGE TRIMMED	-	1	Enquire
-	8D338310022	KIT ASSEMBLY FLOOR CARPET RHD- EDGE TRIMMED	8D338310022 KIT ASSEMBLY FLOOR CARPET RHD- EDGE TRIMMED	-	1	Enquire
1	8D33M1H403AB	FLOOR PAN COVER	8D33M1H403AB FLOOR PAN COVER	-	4	Enquire
2	6G33666A40AB	Finisher, Carpet, Common, RHS	6G33666A40AB Finisher, Carpet, Common, RHS	-	2	Enquire
3	6G33666A41AB	Finisher, Carpet, Common, LHS	6G33666A41AB Finisher, Carpet, Common, LHS	-	2	Enquire
4	4G43100A90AA	Support Panel, Rear Floor, RH	4G43100A90AA Support Panel, Rear Floor, RH	-	1	Enquire
5	8G43100A91AB	LH REAR FLOOR SUPPORT	8G43100A91AB LH REAR FLOOR SUPPORT	-	1	Enquire
6	6G3368D11BA	Screw, M5 x 20, Cap Head	6G3368D11BA Screw, M5 x 20, Cap Head	-	4	Enquire
7	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head	-	4	Enquire
8	6G333N234AB	BRACKET FOOTREST RHD	6G333N234AB BRACKET FOOTREST RHD	-	1	Enquire
9	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	-	5	Enquire
10	6G33044J08AA	Energy Absorber, Footrest	6G33044J08AA Energy Absorber, Footrest	-	1	Enquire
11	9G3312021AA	Cover Plate, Foot Rest, RH	9G3312021AA Cover Plate, Foot Rest, RH	-	1	Enquire
12	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK	-	3	Enquire
13	AG4313242AC	Scuff Plate, front sill, kit. LH and RH supplied	AG4313242AC Scuff Plate, front sill, kit. LH and RH supplied Polished Alloy	-	1	Enquire
13	8D3313242AE	KIT DOOR PLT SCF	8D3313242AE KIT DOOR PLT SCF Black	-	1	Enquire
14	6G33SS106209AB	Bolt, M6 x 20, Skt Hd	6G33SS106209AB Bolt, M6 x 20, Skt Hd Stainless Steel	-	4	Enquire
14	8D3368D11AA	M6 X 20 SOCKET LOW HEAD BOLT STAINLESS STEEL	8D3368D11AA M6 X 20 SOCKET LOW HEAD BOLT STAINLESS STEEL Black	-	4	Enquire
15	8D3313255AAW	SILL NM PAD ASSY LETHER LH	8D3313255AAW SILL NM PAD ASSY LETHER LH	-	1	Enquire
16	8D3313254AAW	SILL NM PAD ASSY LEATHER RH	8D3313254AAW SILL NM PAD ASSY LEATHER RH	-	1	Enquire
17	AD33132A51AA	NAME PLATE FRONT SILL SCUFF CARBON BLACK DBS	AD33132A51AA NAME PLATE FRONT SILL SCUFF CARBON BLACK DBS Carbon Black Edition	-	2	Enquire
17	CD33132A50AA	NM PLT FRT SILL SCF	CD33132A50AA NM PLT FRT SILL SCF Carbon Edition	-	2	Enquire
17	8D338010011	NAMEPLATE-FRONT SILL	8D338010011 NAMEPLATE-FRONT SILL	-	2	Enquire
18	697687	SCREW No6 x 9.5 CSK BLACK	697687 SCREW No6 x 9.5 CSK BLACK	-	4	Enquire
19	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter	-	1	Enquire
20	4G43833016BBW	Handbrake gaiter assy	4G43833016BBW Handbrake gaiter assy	-	1	Enquire
21	9D33281B10CAW	Kit assy, side carpet, lightweight	9D33281B10CAW Kit assy, side carpet, lightweight 9.5MY	-	1	Enquire
21	9D33281B10DCW	KIT ASSEMBLY SIDE CARPET RHD HEAVYWEIGHT	9D33281B10DCW KIT ASSEMBLY SIDE CARPET RHD HEAVYWEIGHT 9.5MY	-	1	Enquire
21	8D33281B10ABW	KIT ASSEMBLY SIDE CARPET RHD LIGHT	8D33281B10ABW KIT ASSEMBLY SIDE CARPET RHD LIGHT	-	1	Enquire
22	9D33311A76DA	FOOTWELL SPKR GRL RH	9D33311A76DA FOOTWELL SPKR GRL RH Carbon Edition	-	1	Enquire
22	9D33311A76CA	Speaker Grille, Footwell, RH, B&O	9D33311A76CA Speaker Grille, Footwell, RH, B&O 9.5MY	-	1	Enquire
23	9D33311A77DA	FOOTWELL SPKR GRL LH	9D33311A77DA FOOTWELL SPKR GRL LH Carbon Edition	-	1	Enquire
23	9D33311A77CA	Speaker Grille, Footwell, LH, B&O	9D33311A77CA Speaker Grille, Footwell, LH, B&O 9.5MY	-	1	Enquire
24	8D33130A12AAW	Carpet assy, front floor RH	8D33130A12AAW Carpet assy, front floor RH	-	1	Enquire
25	8D33130A10AAW	Carpet assy, front floor LH	8D33130A10AAW Carpet assy, front floor LH	-	1	Enquire
26	8D33130A36ABW	Carpet assy, rear floor RH	8D33130A36ABW Carpet assy, rear floor RH	-	1	Enquire
27	8D33130A37ADW	Carpet assy, rear floor LH	8D33130A37ADW Carpet assy, rear floor LH	-	1	Enquire
28	8D3310K973ABW	LH RR CARPET BOARD ASSY	8D3310K973ABW LH RR CARPET BOARD ASSY	-	1	Enquire
29	6G3313925AA	Push On Button, M5 x 35	6G3313925AA Push On Button, M5 x 35	-	3	Enquire
30	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	3	Enquire
31	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided	-	-	Enquire
31	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20)	-	2	Enquire
