Instrument Panel, Leather Covered

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Instrument Panel, Leather Covered

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D33C06010AAW GLOVEBOX DOOR ASSY Enquire To Order
Photo Part No Description Price (each) Stock
4G436910058 HINGE-GLOVEBOX DOOR Enquire To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
701448 Spring Nut, U Type, 4.2 x 2.1 Enquire To Order
Photo Part No Description Price (each) Stock
703170 SCREW 4x8 PAN T/H CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
6G3356240AC Shield, sight, glovebox assy Enquire To Order
Photo Part No Description Price (each) Stock
8D33C043K93BCW PASS LOWER RHD Enquire To Order
8D33C043K93AAW Panel assy, passenger side lower, LHD Enquire To Order
Photo Part No Description Price (each) Stock
4G433710067 Actuator Assy, Fuel Filler Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
4G43C044W04DB LATCH HOUSING LOWER Enquire To Order
Photo Part No Description Price (each) Stock
4G43C044W04CB LATCH HOUSING UPPER Enquire To Order
Photo Part No Description Price (each) Stock
701580PK Rivet Dome Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
AG4340180BA Cable, Fuel Filler Flap Release Enquire To Order
4G432K625AA Abutment, Fuel Filler Cable Enquire To Order
Photo Part No Description Price (each) Stock
8D33044H41AAC Cover, I/panel, RH centre, leather Enquire To Order
Photo Part No Description Price (each) Stock
4G43044B95AA Spacer, Cover, Instrument Panel Enquire To Order
Photo Part No Description Price (each) Stock
4G43044B93AA Cover Spacer, Instrument Panel Enquire To Order
Photo Part No Description Price (each) Stock
8D33044B92CAW Leather End Cover, Instrument Panel, LH Enquire To Order
Photo Part No Description Price (each) Stock
8D33044B92AAW Leather End Cover, Instrument Panel, RH Enquire To Order
Photo Part No Description Price (each) Stock
8D33C044H58BCW PASS AIRBAG DOOR RHD Enquire To Order
8D33C044H58ACW PASS AIRBAG DOOR LHD Enquire To Order
Photo Part No Description Price (each) Stock
8D33C04635BCW PASS UPP OUTER RHD Enquire To Order
8D33C04635ACW DRIVER UPP OUTER LHD Enquire To Order
Photo Part No Description Price (each) Stock
9D33C043C54DCW PASS UPPER RHD Enquire To Order
9D33C043C54CCW PASS UPP LHD Enquire To Order
8D33C043C54DAW PASSENGER UPPER RHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
9D33C043C54BCW DRIVER UPPER RHD Enquire To Order
9D33C043C54ACW DRIVER UPPER LHD Enquire To Order
8D33C043C54BAW DRIVER UPPER RHD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8D33C04634DDW DRIVER UPP INNER RHD Enquire To Order
8D33C04634BDW DRIVER UPP INNER LHD Enquire To Order
Photo Part No Description Price (each) Stock
8D33C04634CCW DRIVER UPP OUTER RHD Enquire To Order
8D33C04634ACW DRIVER UPP OUTER LHD Enquire To Order
Photo Part No Description Price (each) Stock
8D3310862ACW BINNACLE HOOD Enquire To Order
Photo Part No Description Price (each) Stock
4G433T501ACW COVER STEERING COLUMN UPPER Enquire To Order
Photo Part No Description Price (each) Stock
4G4311A665AD Bezel, Light Switch Enquire To Order
Photo Part No Description Price (each) Stock
4G4360K51DA Knee Protector, RHD Enquire To Order
4G4360K51CA Knee Protector, LHD Enquire To Order
Photo Part No Description Price (each) Stock
8D33C04325BCW DRIVER LOWER RHD Enquire To Order
8D33C04325ACW DRIVER LOWER LHD Enquire To Order
Photo Part No Description Price (each) Stock
702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) Enquire To Order
Photo Part No Description Price (each) Stock
4G43C06102AB Damper, Glovebox Enquire To Order
View All

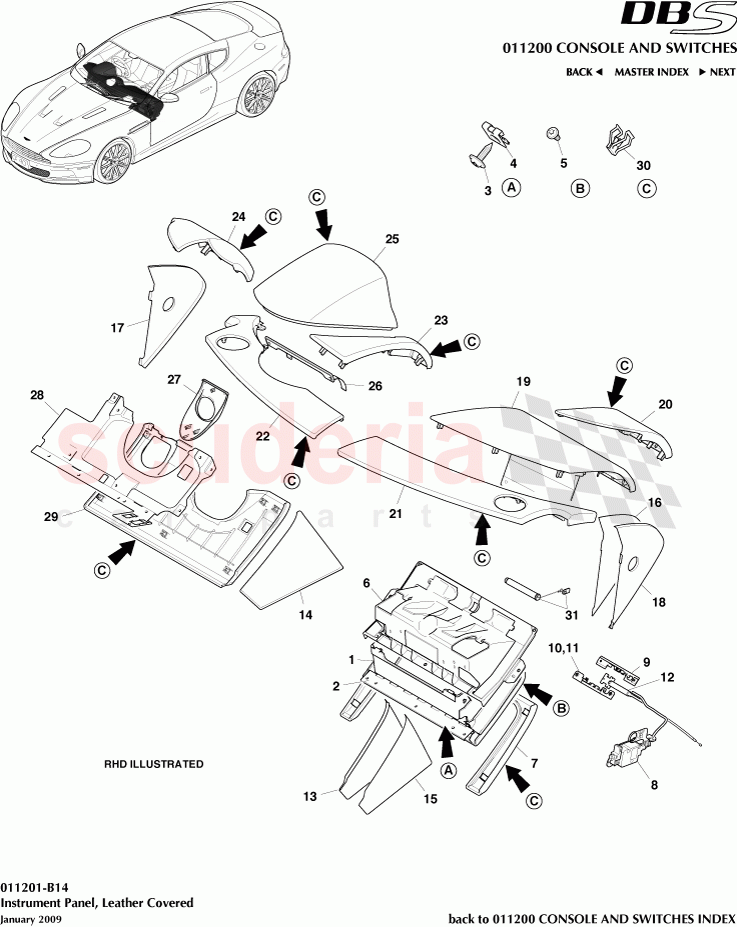

Instrument Panel, Leather Covered of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D33C06010AAW
GLOVEBOX DOOR ASSY 		- 1 Enquire
2 4G436910058
HINGE-GLOVEBOX DOOR 		- 1 Enquire
3 701157PK
Screw & Washer 4.2 x 16 (Pack of 10) 		- 3 Enquire
4 701448
Spring Nut, U Type, 4.2 x 2.1 		- 3 Enquire
5 703170
SCREW 4x8 PAN T/H CHROME FREE 		- 6 Enquire
6 6G3356240AC
Shield, sight, glovebox assy 		- 1 Enquire
7 8D33C043K93BCW
PASS LOWER RHD 		- 1 Enquire
7 8D33C043K93AAW
Panel assy, passenger side lower, LHD 		- 1 Enquire
8 4G433710067
Actuator Assy, Fuel Filler
ARRIVING SOON 		- 1 Enquire
9 4G43C044W04DB
LATCH HOUSING LOWER 		- 1 Enquire
10 4G43C044W04CB
LATCH HOUSING UPPER 		- 1 Enquire
11 701580PK
Rivet Dome Head (Pack of 20) 		- 2 Enquire
12 AG4340180BA
Cable, Fuel Filler Flap Release 		- 1 Enquire
12 4G432K625AA
Abutment, Fuel Filler Cable 		- 1 Enquire
14 8D33044H41AAC
Cover, I/panel, RH centre, leather 		- 1 Enquire
15 4G43044B95AA
Spacer, Cover, Instrument Panel 		- 1 Enquire
16 4G43044B93AA
Cover Spacer, Instrument Panel 		- 1 Enquire
17 8D33044B92CAW
Leather End Cover, Instrument Panel, LH 		- 1 Enquire
18 8D33044B92AAW
Leather End Cover, Instrument Panel, RH 		- 1 Enquire
19 8D33C044H58BCW
PASS AIRBAG DOOR RHD 		- 1 Enquire
19 8D33C044H58ACW
PASS AIRBAG DOOR LHD 		- 1 Enquire
20 8D33C04635BCW
PASS UPP OUTER RHD 		- 1 Enquire
20 8D33C04635ACW
DRIVER UPP OUTER LHD 		- 1 Enquire
21 9D33C043C54DCW
PASS UPPER RHD
B&O 		- 1 Enquire
21 9D33C043C54CCW
PASS UPP LHD
B&O 		- 1 Enquire
21 8D33C043C54DAW
PASSENGER UPPER RHD 		- 1 Enquire
21 8D33C043C54CAW
PASSENGER UPPER LHD 		- 1 Enquire
22 9D33C043C54BCW
DRIVER UPPER RHD
B&O 		- 1 Enquire
22 9D33C043C54ACW
DRIVER UPPER LHD
B&O 		- 1 Enquire
22 8D33C043C54BAW
DRIVER UPPER RHD 		- 1 Enquire
22 8D33C043C54AAW
DRIVER UPPER LHD 		- 1 Enquire
23 8D33C04634DDW
DRIVER UPP INNER RHD 		- 1 Enquire
23 8D33C04634BDW
DRIVER UPP INNER LHD 		- 1 Enquire
24 8D33C04634CCW
DRIVER UPP OUTER RHD 		- 1 Enquire
24 8D33C04634ACW
DRIVER UPP OUTER LHD 		- 1 Enquire
25 8D3310862ACW
BINNACLE HOOD 		- 1 Enquire
26 4G433T501ACW
COVER STEERING COLUMN UPPER 		- 1 Enquire
27 4G4311A665AD
Bezel, Light Switch 		- 1 Enquire
28 4G4360K51DA
Knee Protector, RHD 		- 1 Enquire
28 4G4360K51CA
Knee Protector, LHD 		- 1 Enquire
29 8D33C04325BCW
DRIVER LOWER RHD 		- 1 Enquire
29 8D33C04325ACW
DRIVER LOWER LHD 		- 1 Enquire
30 702520PK
Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) 		- 37 Enquire
31 4G43C06102AB
Damper, Glovebox 		- 1 Enquire
