Centre Console Panel Assembly (Ash Receptacle) (Auto) (9.5My)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Centre Console Panel Assembly (Ash Receptacle) (Auto) (9.5MY)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9D33045A66BB PANEL CONSOLE PANEL CTR PIANO Enquire To Order
9D33045A66AB PANEL CONSOLE PANEL CTR SILVER Enquire To Order
Photo Part No Description Price (each) Stock
701157PK Screw & Washer 4.2 x 16 (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
4G438010960 ASHTRAY ASSEMBLY IRIDIUM SILVR-MANUAL Enquire To Order
4G438010961 UTILITY TRAY ASSY- IRIDIUM SILVER Enquire To Order
8D338010046 ASHTRAY ASSEMBLY MANUAL-CHROME Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6G33048A64AA BOX CNSL PNL RR ASH- RECEPTICLE Enquire To Order
Photo Part No Description Price (each) Stock
8D33043K78BA DOOR UTILITY TRAY LGT STN CHROME Enquire To Order
Photo Part No Description Price (each) Stock
703176PK SCREW-M4x6 CHROME FREE PACK OF 10 Enquire To Order
Photo Part No Description Price (each) Stock
4G43045N20AAW Cover, coin holder Enquire To Order
Photo Part No Description Price (each) Stock
4G438678AA Foam, Coin Holder Enquire To Order
Photo Part No Description Price (each) Stock
4G43045J82AA Bracket, Coin Holder Enquire To Order
Photo Part No Description Price (each) Stock
703176PK SCREW-M4x6 CHROME FREE PACK OF 10 Enquire To Order
Photo Part No Description Price (each) Stock
4G4313D720AA Switch Bracket, Console Panel Enquire To Order
Photo Part No Description Price (each) Stock
703176PK SCREW-M4x6 CHROME FREE PACK OF 10 Enquire To Order
Photo Part No Description Price (each) Stock
703170 SCREW 4x8 PAN T/H CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
4G43044J84AA Container assy Enquire To Order
Photo Part No Description Price (each) Stock
703176PK SCREW-M4x6 CHROME FREE PACK OF 10 Enquire To Order
View All

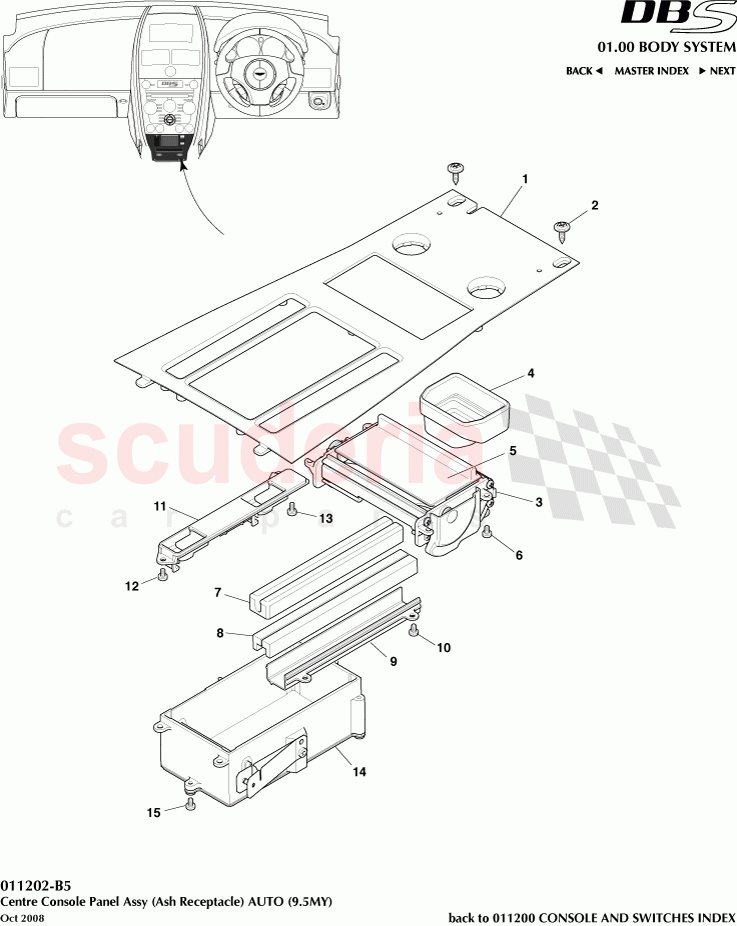

Centre Console Panel Assembly (Ash Receptacle) (Auto) (9.5MY) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9D33045A66BB
PANEL CONSOLE PANEL CTR PIANO 		- 1 Enquire
1 9D33045A66AB
PANEL CONSOLE PANEL CTR SILVER 		- 1 Enquire
2 701157PK
Screw & Washer 4.2 x 16 (Pack of 10) 		- 2 Enquire
3 4G438010960
ASHTRAY ASSEMBLY IRIDIUM SILVR-MANUAL 		- 1 Enquire
3 4G438010961
UTILITY TRAY ASSY- IRIDIUM SILVER 		- 1 Enquire
3 8D338010046
ASHTRAY ASSEMBLY MANUAL-CHROME 		- 1 Enquire
3 8D338010045
UTILITY TRAY ASSY- CHROME 		- 1 Enquire
4 6G33048A64AA
BOX CNSL PNL RR ASH- RECEPTICLE 		- 1 Enquire
5 8D33043K78BA
DOOR UTILITY TRAY LGT STN CHROME 		- 1 Enquire
6 703176PK
SCREW-M4x6 CHROME FREE PACK OF 10 		- 2 Enquire
7 4G43045N20AAW
Cover, coin holder 		- 1 Enquire
8 4G438678AA
Foam, Coin Holder 		- 2 Enquire
9 4G43045J82AA
Bracket, Coin Holder 		- 1 Enquire
10 703176PK
SCREW-M4x6 CHROME FREE PACK OF 10 		- 2 Enquire
11 4G4313D720AA
Switch Bracket, Console Panel 		- 1 Enquire
12 703176PK
SCREW-M4x6 CHROME FREE PACK OF 10 		- 2 Enquire
13 703170
SCREW 4x8 PAN T/H CHROME FREE 		- 2 Enquire
14 4G43044J84AA
Container assy 		- 1 Enquire
15 703176PK
SCREW-M4x6 CHROME FREE PACK OF 10 		- 4 Enquire
