30 - HVAC - 30.2 - HVAC FLUIDS CIRCUIT of McLaren McLaren Ultimate Series McLaren Speedtail

View All

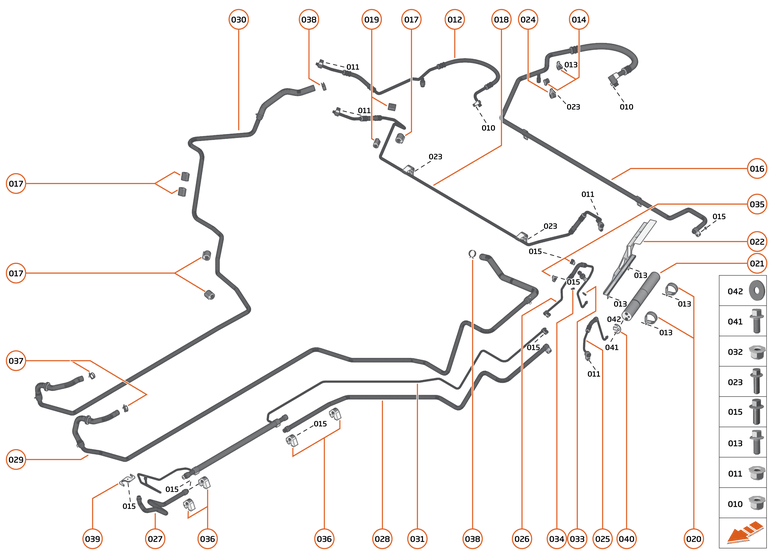

McLaren Ultimate Series McLaren Speedtail - 30 - HVAC - 30.2 - HVAC FLUIDS CIRCUIT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11A4061CP	Connection O-ring Kit - HVAC	11A4061CP Connection O-ring Kit - HVAC Row ID: ID__11A4061CP_ContPgHS;	-	1	Enquire
000	11A4547CP	Cap Set - HVAC Fill Point	11A4547CP Cap Set - HVAC Fill Point Row ID: ID__11A4547CP_ContPgHS;	-	1	Enquire
010	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID__00RA011_ContPgHS;	-	2	Enquire
011	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS;	-	4	Enquire
012	23AA860CP	ASSY-HOSE-COMPRESSOR-CONDENSOR	23AA860CP ASSY-HOSE-COMPRESSOR-CONDENSOR Row ID: ID__23AA860CP_ContPgHS;	-	1	Enquire
013	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	5	Enquire
014	00RB005	P CLIP - DIA 16	00RB005 P CLIP - DIA 16 Row ID: ID__00RB005_ContPgHS;	-	2	Enquire
015	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	7	Enquire
016	23AA862CP	ASSY-HOSE-HVAC-COMPRESSOR-REAR	23AA862CP ASSY-HOSE-HVAC-COMPRESSOR-REAR Row ID: ID__23AA862CP_ContPgHS;	-	1	Enquire
017	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID Row ID: ID__00RA367_ContPgHS;	-	5	Enquire
018	23AA864CP	ASSY HOSE-CONDENSOR LATERAL	23AA864CP ASSY HOSE-CONDENSOR LATERAL Row ID: ID__23AA864CP_ContPgHS;	-	1	Enquire
019	00RA357	PIPE PROTECTOR	00RA357 PIPE PROTECTOR Row ID: ID__00RA357_ContPgHS;	-	2	Enquire
020	00RB029	P CLIP - DIA 45-M6	00RB029 P CLIP - DIA 45-M6 Row ID: ID__00RB029_ContPgHS;	-	2	Enquire
021	12A2757CP	RECEIVER DRIER - HVAC	12A2757CP RECEIVER DRIER - HVAC Row ID: ID__12A2757CP_ContPgHS;	-	1	Enquire
022	23LA349CP	BRKT - DRYER AND CANISTER	23LA349CP BRKT - DRYER AND CANISTER Row ID: ID__23LA349CP_ContPgHS;	-	1	Enquire
023	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID__00RA061_ContPgHS;	-	3	Enquire
024	00RB060	P CLIP - DIA 20	00RB060 P CLIP - DIA 20 Row ID: ID__00RB060_ContPgHS;	-	1	Enquire
025	23AA870CP	ASSY-HOSE-CONDENSER-RECIEVER D	23AA870CP ASSY-HOSE-CONDENSER-RECIEVER D Row ID: ID__23AA870CP_ContPgHS;	-	1	Enquire
026	23AA872CP	ASSY-HOSE-RECEIVER-DRIER-HVAC-	23AA872CP ASSY-HOSE-RECEIVER-DRIER-HVAC- Row ID: ID__23AA872CP_ContPgHS;	-	1	Enquire
027	23AA874CP	SUCTN PIPE - EVAP TO IHX	23AA874CP SUCTN PIPE - EVAP TO IHX Row ID: ID__23AA874CP_ContPgHS;	-	1	Enquire
028	23AA876CP	SUCTN PIPE - IHX TO COMPRSR	23AA876CP SUCTN PIPE - IHX TO COMPRSR Row ID: ID__23AA876CP_ContPgHS;	-	1	Enquire
029	23AA401CP	HOSE-HEATER-HVAC-ENGINE	23AA401CP HOSE-HEATER-HVAC-ENGINE Row ID: ID__23AA401CP_ContPgHS;	-	1	Enquire
029	23LA340CP	HOSE-HEATER-HVAC-ENGINE	23LA340CP HOSE-HEATER-HVAC-ENGINE Row ID: ID__23LA340CP_ContPgHS;	-	1	Enquire
030	23AA400CP	HOSE-HEATER-PUMP-HVAC	23AA400CP HOSE-HEATER-PUMP-HVAC Row ID: ID__23AA400CP_ContPgHS;	-	1	Enquire
031	23AA404CP	ASSY-TUNNEL IHX UNIT	23AA404CP ASSY-TUNNEL IHX UNIT Row ID: ID__23AA404CP_ContPgHS;	-	1	Enquire
032	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	2	Enquire
033	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	00RB019 CLIP - 90DEG - FEMALE - 10-12MM Row ID: ID__00RB019_ContPgHS;	-	1	Enquire
034	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE Row ID: ID__00RB045_ContPgHS;	-	1	Enquire
035	00RB098	P-CLIP - DIA 10 - SILICONE	00RB098 P-CLIP - DIA 10 - SILICONE Row ID: ID__00RB098_ContPgHS;	-	2	Enquire
036	23LA236CP	CLIP AIRCON SUCTION AND IHX	23LA236CP CLIP AIRCON SUCTION AND IHX Row ID: ID__23LA236CP_ContPgHS;	-	4	Enquire
037	00RB202	CLAMP - SPRING BAND - 23X12	00RB202 CLAMP - SPRING BAND - 23X12 Row ID: ID__00RB202_ContPgHS;	-	2	Enquire
038	00RB145	CLAMP - SPRING BAND - 26/12	00RB145 CLAMP - SPRING BAND - 26/12 Row ID: ID__00RB145_ContPgHS;	-	1	Enquire
039	11A4434CP	CLAMP PLATE - HVAC EVAPORATOR CONNECTION	11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION Row ID: ID__11A4434CP_ContPgHS;	-	1	Enquire
040	11A4433CP	CLAMP PLATE - RECEIVER DRIER - HVAC	11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC Row ID: ID__11A4433CP_ContPgHS;	-	1	Enquire
041	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID__00RA002_ContPgHS;	-	1	Enquire
042	00RC038	WASHER - WAVE M8	00RC038 WASHER - WAVE M8 Row ID: ID__00RC038_ContPgHS;	-	1	Enquire
