23 - Nvh - Heat Insulation - 23.1 - Insulation - Powertrain Mounted

McLaren Ultimate Series McLaren Speedtail

Find Your Part

McLaren Ultimate Series McLaren Speedtail - 23 - NVH - HEAT INSULATION - 23.1 - INSULATION - POWERTRAIN MOUNTED

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

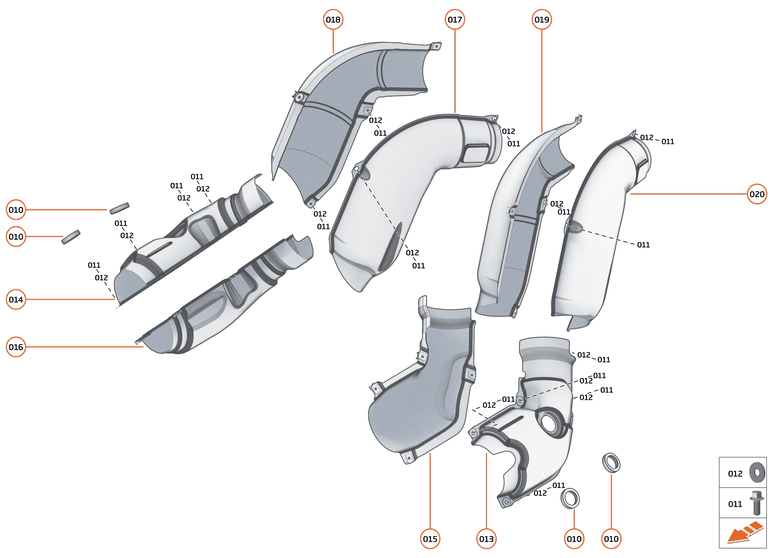

23 - NVH - HEAT INSULATION - 23.1 - INSULATION - POWERTRAIN MOUNTED of McLaren McLaren Ultimate Series McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11E0092CP
Heatshield - Lambda Sensor
Row ID: ID__11E0092CP_ContPgHS; 		- 4 Enquire
011 00RA064
BOLT - M5X12 - HEX
Row ID: ID__00RA064_ContPgHS; 		- 16 Enquire
012 00RC063
Washer - M5x20x1
Row ID: ID__00RC063_ContPgHS; 		- 16 Enquire
013 11E0149CP
Heatshield - Link Pipe - Lower - Outer - LH
Row ID: ID__11E0149CP_ContPgHS; 		- 1 Enquire
014 11E0150CP
Heatshield - Link Pipe - Lower - Outer - RH
Row ID: ID__11E0150CP_ContPgHS; 		- 1 Enquire
015 11E0151CP
Heatshield - Link Pipe - Lower - Inner - LH
Row ID: ID__11E0151CP_ContPgHS; 		- 1 Enquire
016 11E0152CP
Heatshield - Link Pipe - Lower - Inner - RH
Row ID: ID__11E0152CP_ContPgHS; 		- 1 Enquire
017 12E0028CP
HEATSHIELD - LINK PIPE - UPPER - INNER - RH
Row ID: ID__12E0028CP_ContPgHS; 		- 1 Enquire
018 12E0072CP
HEATSHIELD - LINK PIPE - UPPER - OUTER - RH
Row ID: ID__12E0072CP_ContPgHS; 		- 1 Enquire
019 12E0029CP
HEATSHIELD - LINK PIPE - UPPER - INNER - LH
Row ID: ID__12E0029CP_ContPgHS; 		- 1 Enquire
020 12E0071CP
HEATSHIELD - LINK PIPE - UPPER - OUTER - LH
Row ID: ID__12E0071CP_ContPgHS; 		- 1 Enquire
