McLaren Ultimate Series McLaren Speedtail - 30 - HVAC - 30.1 - HVAC INLET AND DISTRIBUTION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

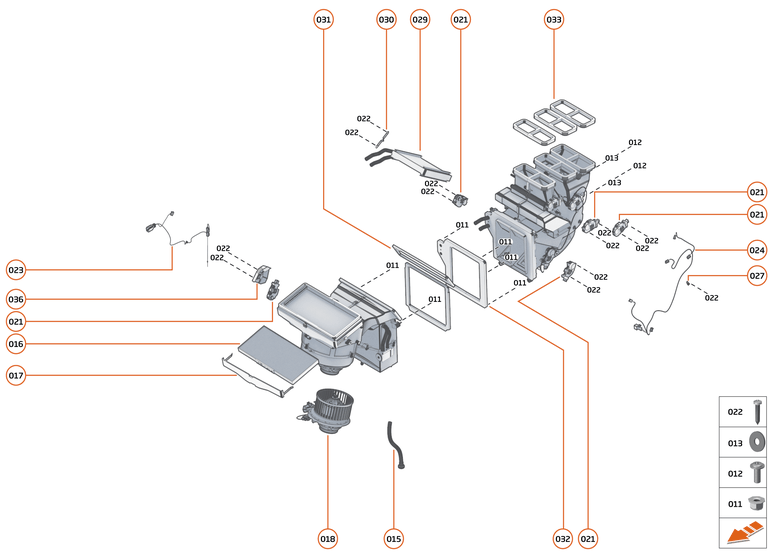

30 - HVAC - 30.1 - HVAC INLET AND DISTRIBUTION of McLaren McLaren Ultimate Series McLaren Speedtail

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	3	Enquire
010	23AA031CP	HVAC DISTRIBUTION UNIT	23AA031CP HVAC DISTRIBUTION UNIT Row ID: ID__23AA031CP_ContPgHS;	-	1	Enquire
011	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	4	Enquire
012	00RA369	SCREW - PLAS TECH - M6X16MM	00RA369 SCREW - PLAS TECH - M6X16MM Row ID: ID__00RA369_ContPgHS;	-	2	Enquire
013	00RC075	WASHER - NYLON - 14.35X6.45X2.39	00RC075 WASHER - NYLON - 14.35X6.45X2.39 Row ID: ID__00RC075_ContPgHS;	-	2	Enquire
014	13A5729CP	INTAKE UNIT - HVAC - R1234YF	13A5729CP INTAKE UNIT - HVAC - R1234YF Row ID: ID__13A5729CP_ContPgHS;	-	1	Enquire
015	11A7034CP	Drain Tube - HVAC	11A7034CP Drain Tube - HVAC Row ID: ID__11A7034CP_ContPgHS;	-	1	Enquire
016	11A4152CP	HVAC CABIN AIR FILTER IN STOCK	11A4152CP HVAC CABIN AIR FILTER Row ID: ID__11A4152CP_ContPgHS; IN STOCK	$81.22	1
017	11A4612CP	ACCESS PANEL-HVAC-FILTER	11A4612CP ACCESS PANEL-HVAC-FILTER Row ID: ID__11A4612CP_ContPgHS;	$71.07	1
018	11A4153CP	HVAC FAN AND MODULE	11A4153CP HVAC FAN AND MODULE Row ID: ID__11A4153CP_ContPgHS;	$704.93	1
021	11A4134CP	Motor - Flap - HVAC	11A4134CP Motor - Flap - HVAC Row ID: ID__11A4134CP_ContPgHS;	-	1	Enquire
022	11A4137CP	Screw - HVAC	11A4137CP Screw - HVAC Row ID: ID__11A4137CP_ContPgHS;	-	1	Enquire
023	11A4135CP	HVAC HARNESS 24	11A4135CP HVAC HARNESS 24 Row ID: ID__11A4135CP_ContPgHS;	$181.26	1
024	11A4136CP	HVAC HARNESS DISTR24UTION	11A4136CP HVAC HARNESS DISTR24UTION Row ID: ID__11A4136CP_ContPgHS;	$261.81	1
027	11A4144CP	P-Clip - Harness - HVAC	11A4144CP P-Clip - Harness - HVAC Row ID: ID__11A4144CP_ContPgHS;	-	1	Enquire
029	11A4146CP	HVAC HEATER MATRIX	11A4146CP HVAC HEATER MATRIX Row ID: ID__11A4146CP_ContPgHS;	$426.52	1
030	11A4147CP	Clamp - Heater Matrix - HVAC	11A4147CP Clamp - Heater Matrix - HVAC Row ID: ID__11A4147CP_ContPgHS;	-	1	Enquire
031	11A4149CP	HVAC BULKHEAD SEAL INTAKE UNIT	11A4149CP HVAC BULKHEAD SEAL INTAKE UNIT Row ID: ID__11A4149CP_ContPgHS;	$101.53	1
032	11A4150CP	HVAC BULKHEAD SEAL24IST UNIT	11A4150CP HVAC BULKHEAD SEAL24IST UNIT Row ID: ID__11A4150CP_ContPgHS;	$101.53	1
033	11A4151CP	HVAC DUCT FACIA SEAL SET	11A4151CP HVAC DUCT FACIA SEAL SET Row ID: ID__11A4151CP_ContPgHS;	$71.07	1
036	11A4857CP	HVAC-COVER-FLAP MOTOR	11A4857CP HVAC-COVER-FLAP MOTOR Row ID: ID__11A4857CP_ContPgHS;	$30.46	1
