29 - COOLING SYSTEM - 29.6 - HYBRID COOLING CIRCUIT & PIPES of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 29 - COOLING SYSTEM - 29.6 - HYBRID COOLING CIRCUIT & PIPES

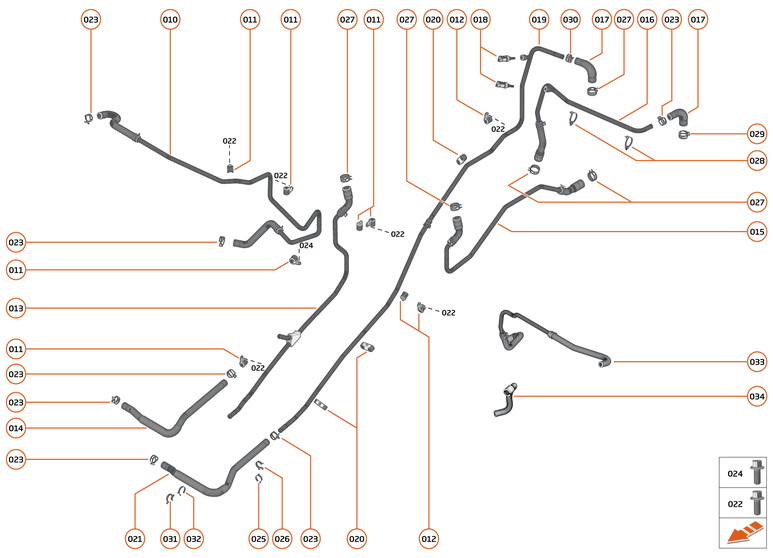

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	23LA086CP	MCU TO E-MOTOR-MTR CIRCUIT	23LA086CP MCU TO E-MOTOR-MTR CIRCUIT Row ID: ID__23LA086CP_ContPgHS;	-	1	Enquire
011	00RB003	P Clip - DIA 14	00RB003 P Clip - DIA 14 Row ID: ID__00RB003_ContPgHS;	-	3	Enquire
012	00RB191	P-CLIP - 14X15	00RB191 P-CLIP - 14X15 Row ID: ID__00RB191_ContPgHS;	-	3	Enquire
013	23LA076CP	BATT TO CLTHCLLR-MTR CIRCUIT	23LA076CP BATT TO CLTHCLLR-MTR CIRCUIT Row ID: ID__23LA076CP_ContPgHS;	-	1	Enquire
014	23LA131CP	PIPE BATT COOLER WEG OUTLET	23LA131CP PIPE BATT COOLER WEG OUTLET Row ID: ID__23LA131CP_ContPgHS;	-	1	Enquire
015	23LA081CP	CLTHCLLR TO PUMP-MTR CIRCUIT	23LA081CP CLTHCLLR TO PUMP-MTR CIRCUIT Row ID: ID__23LA081CP_ContPgHS;	-	1	Enquire
016	23LA083CP	PUMP TO RAD-MTR CIRCUIT	23LA083CP PUMP TO RAD-MTR CIRCUIT Row ID: ID__23LA083CP_ContPgHS;	-	1	Enquire
017	23LA315CP	HOSE-RAD TO PIPE-MTR CIRCUIT	23LA315CP HOSE-RAD TO PIPE-MTR CIRCUIT Row ID: ID__23LA315CP_ContPgHS;	-	2	Enquire
018	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE Row ID: ID__11L0247CP_ContPgHS;	-	2	Enquire
019	23LA085CP	RAD TO BATT-MTR CIRCUIT	23LA085CP RAD TO BATT-MTR CIRCUIT Row ID: ID__23LA085CP_ContPgHS;	-	1	Enquire
020	00RB131	HOSE SEPERATOR PHS6	00RB131 HOSE SEPERATOR PHS6 Row ID: ID__00RB131_ContPgHS;	-	3	Enquire
021	23LA130CP	PIPE BATT COOLER WEG INLET	23LA130CP PIPE BATT COOLER WEG INLET Row ID: ID__23LA130CP_ContPgHS;	-	1	Enquire
022	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID__00RA061_ContPgHS;	-	2	Enquire
023	00RB201	CLAMP - SPRING BAND - 21X12	00RB201 CLAMP - SPRING BAND - 21X12 Row ID: ID__00RB201_ContPgHS;	-	2	Enquire
024	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID__00RX001_ContPgHS;	-	1	Enquire
025	00RB008	CLIP - 18-20MM - MALE	00RB008 CLIP - 18-20MM - MALE Row ID: ID__00RB008_ContPgHS;	-	1	Enquire
026	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID__00RB007_ContPgHS;	-	1	Enquire
027	00RB145	CLAMP - SPRING BAND - 26/12	00RB145 CLAMP - SPRING BAND - 26/12 Row ID: ID__00RB145_ContPgHS;	-	5	Enquire
028	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS;	-	2	Enquire
029	00RB233	CLMP-SPRGBAND-LO PRO-25X12-STL	00RB233 CLMP-SPRGBAND-LO PRO-25X12-STL Row ID: ID__00RB233_ContPgHS;	-	1	Enquire
030	00RB130	CLIP - SPRING BAND - 22/12	00RB130 CLIP - SPRING BAND - 22/12 Row ID: ID__00RB130_ContPgHS;	-	1	Enquire
031	00RG020	Swivel Clip - 20-24.5mm - Female	00RG020 Swivel Clip - 20-24.5mm - Female Row ID: ID__00RG020_ContPgHS;	-	1	Enquire
032	00RG018	SWIVEL CLIP - 22-24MM -MALE	00RG018 SWIVEL CLIP - 22-24MM -MALE Row ID: ID__00RG018_ContPgHS;	-	1	Enquire
033	23LA328CP	ASSY-PIPE-PUMP TO MCU	23LA328CP ASSY-PIPE-PUMP TO MCU Row ID: ID__23LA328CP_ContPgHS;	-	1	Enquire
034	23LA385CP	MCU TO E-MOTOR- BY-PASS VALVE-HOSE	23LA385CP MCU TO E-MOTOR- BY-PASS VALVE-HOSE Row ID: ID__23LA385CP_ContPgHS;	-	1	Enquire
