25 - ACOUSTIC SYSTEM - 25.1 - EXHAUST SOUND GENERATOR (ESG) of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 25 - ACOUSTIC SYSTEM - 25.1 - EXHAUST SOUND GENERATOR (ESG)

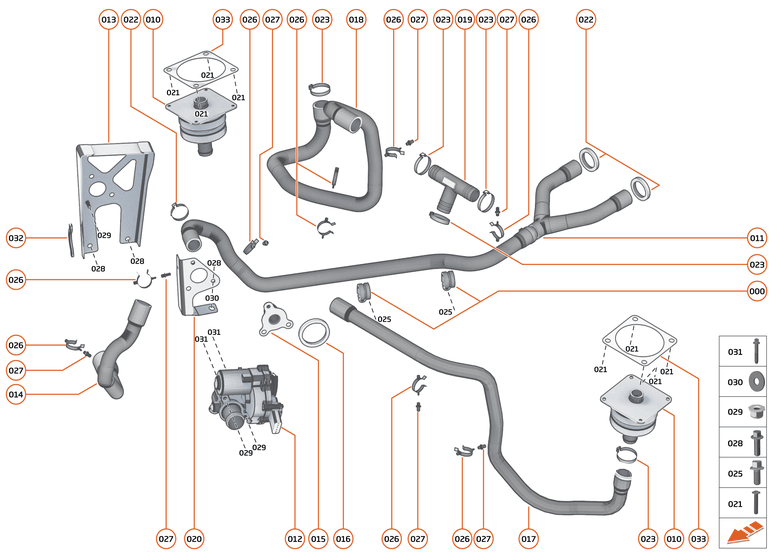

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14F0664CP	SYMPOSER - ISG \ ESG	14F0664CP SYMPOSER - ISG \ ESG Row ID: ID__14F0664CP_ContPgHS;	-	2	Enquire
011	23HA094CP	HOSE-ESG-T PIECE TO THROTTLE	23HA094CP HOSE-ESG-T PIECE TO THROTTLE Row ID: ID__23HA094CP_ContPgHS;	-	1	Enquire
012	23HA055CP	THROTTLE-ESG	23HA055CP THROTTLE-ESG Row ID: ID__23HA055CP_ContPgHS;	-	1	Enquire
013	23HA096CP	BRKT ESG-THROTTLE	23HA096CP BRKT ESG-THROTTLE Row ID: ID__23HA096CP_ContPgHS;	-	1	Enquire
014	23HA095CP	HOSE-ESG-THROTTLE TO T PIECE	23HA095CP HOSE-ESG-THROTTLE TO T PIECE Row ID: ID__23HA095CP_ContPgHS;	-	1	Enquire
015	23HA087CP	ESG THROTTLE ADAPTER	23HA087CP ESG THROTTLE ADAPTER Row ID: ID__23HA087CP_ContPgHS;	-	1	Enquire
016	00RB163	HOSE CLAMP - STEPLESS EAR - 42 DIA	00RB163 HOSE CLAMP - STEPLESS EAR - 42 DIA Row ID: ID__00RB163_ContPgHS;	-	1	Enquire
017	23HA051CP	HOSE LH-ESG-T PIECE TO SYMPOSE	23HA051CP HOSE LH-ESG-T PIECE TO SYMPOSE Row ID: ID__23HA051CP_ContPgHS;	-	1	Enquire
018	23HA052CP	HOSE RH-ESG-T PIECE TO SYMPOSE	23HA052CP HOSE RH-ESG-T PIECE TO SYMPOSE Row ID: ID__23HA052CP_ContPgHS;	-	1	Enquire
019	12F0419CP	ADAPTOR - INTAKE SOUND GENERATOR - HOSE TO SERVICE PANEL - LH	12F0419CP ADAPTOR - INTAKE SOUND GENERATOR - HOSE TO SERVICE PANEL - LH Row ID: ID__12F0419CP_ContPgHS;	-	1	Enquire
020	23HA098CP	BRKT ESG-THROTTLE - SUPPORT	23HA098CP BRKT ESG-THROTTLE - SUPPORT Row ID: ID__23HA098CP_ContPgHS;	-	1	Enquire
021	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS;	-	8	Enquire
022	00RB065	STEPLESS EAR CLAMP - 30.1-706	00RB065 STEPLESS EAR CLAMP - 30.1-706 Row ID: ID__00RB065_ContPgHS;	-	3	Enquire
023	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	00RB139 STEPLESS EAR CLAMP - 34.6-706DR Row ID: ID__00RB139_ContPgHS;	-	5	Enquire
024	00RB097	P-CLIP - DIA 25 - M6	00RB097 P-CLIP - DIA 25 - M6 Row ID: ID__00RB097_ContPgHS;	-	2	Enquire
025	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	2	Enquire
026	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Row ID: ID__00RG028_ContPgHS;	-	9	Enquire
027	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Row ID: ID__00RG019_ContPgHS;	-	7	Enquire
028	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID__00RA083_ContPgHS;	-	3	Enquire
029	00RA577	NUT-HX-FL-M6X1-8-ZFB	00RA577 NUT-HX-FL-M6X1-8-ZFB Row ID: ID__00RA577_ContPgHS;	-	3	Enquire
030	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS;	-	1	Enquire
031	00RA627	BOLT - HEX - FLANGED - M6X80	00RA627 BOLT - HEX - FLANGED - M6X80 Row ID: ID__00RA627_ContPgHS;	-	2	Enquire
032	00RE014	EDGE PROTECTOR - WATER CHARGE AIR COOLER	00RE014 EDGE PROTECTOR - WATER CHARGE AIR COOLER Row ID: ID__00RE014_ContPgHS;	-	1	Enquire
033	14FA121CP	SEAL - ISG \ ESG - BULKHEAD	14FA121CP SEAL - ISG \ ESG - BULKHEAD Row ID: ID__14FA121CP_ContPgHS;	-	2	Enquire
