29 - COOLING SYSTEM - 29.1 - HIGH TEMPERATURE CIRCUIT & PIPES of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 29 - COOLING SYSTEM - 29.1 - HIGH TEMPERATURE CIRCUIT & PIPES

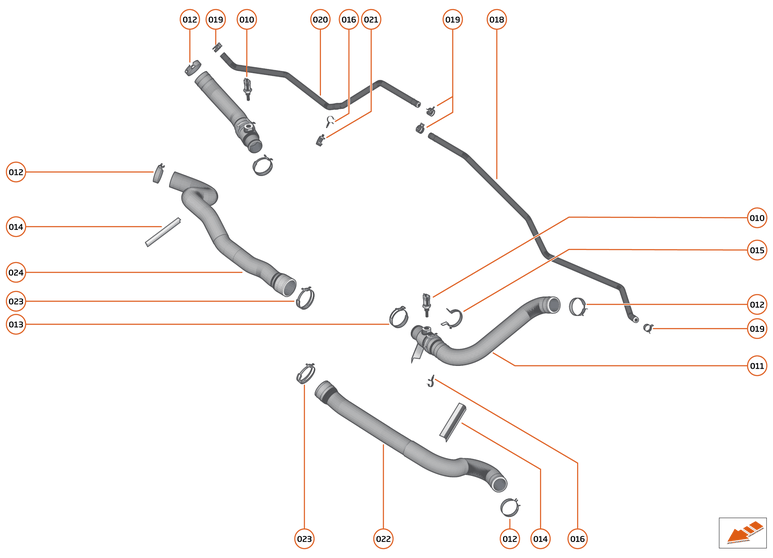

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE Row ID: ID__11L0247CP_ContPgHS;	-	2	Enquire
011	23LA072CP	RAD INLT HOSE LH	23LA072CP RAD INLT HOSE LH Row ID: ID__23LA072CP_ContPgHS;	-	1	Enquire
012	00RB056	SPRING BAND CLAMP - DIA 40	00RB056 SPRING BAND CLAMP - DIA 40 Row ID: ID__00RB056_ContPgHS;	-	4	Enquire
013	00RB205	CLAMP - SPRING BAND - 43X12	00RB205 CLAMP - SPRING BAND - 43X12 Row ID: ID__00RB205_ContPgHS;	-	1	Enquire
014	11C0570CP	ENGINE CRADLE FELT	11C0570CP ENGINE CRADLE FELT Row ID: ID__11C0570CP_ContPgHS;	-	2	Enquire
015	00RB057	CLIP - 39-45MM - FEMALE	00RB057 CLIP - 39-45MM - FEMALE Row ID: ID__00RB057_ContPgHS;	-	1	Enquire
016	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE Row ID: ID__00RB034_ContPgHS;	-	2	Enquire
017	23LA073CP	RAD INLT HOSE RH	23LA073CP RAD INLT HOSE RH Row ID: ID__23LA073CP_ContPgHS;	-	1	Enquire
018	23LA066CP	RADIATOR BLEED HOSE LH	23LA066CP RADIATOR BLEED HOSE LH Row ID: ID__23LA066CP_ContPgHS;	-	1	Enquire
019	00RB199	CLAMP - SPRING BAND - 14X12	00RB199 CLAMP - SPRING BAND - 14X12 Row ID: ID__00RB199_ContPgHS;	-	4	Enquire
020	23LA067CP	RADIATOR BLEED HOSE RH	23LA067CP RADIATOR BLEED HOSE RH Row ID: ID__23LA067CP_ContPgHS;	-	1	Enquire
021	00RB120	CLIP - 90 DEGREE - FEMALE - 20-22	00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Row ID: ID__00RB120_ContPgHS;	-	1	Enquire
022	23LA064CP	RAD OLET HOSE LH WITH PA SLEEV	23LA064CP RAD OLET HOSE LH WITH PA SLEEV Row ID: ID__23LA064CP_ContPgHS;	-	1	Enquire
023	00RB206	CLAMP - SPRING BAND - 47X12	00RB206 CLAMP - SPRING BAND - 47X12 Row ID: ID__00RB206_ContPgHS;	-	1	Enquire
024	23LA065CP	RAD OLET HOSE RH W-SLEEVE	23LA065CP RAD OLET HOSE RH W-SLEEVE Row ID: ID__23LA065CP_ContPgHS;	-	1	Enquire
