27 - EXHAUST - 27.2 - MUFFLER AND TAIL PIPES of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 27 - EXHAUST - 27.2 - MUFFLER AND TAIL PIPES

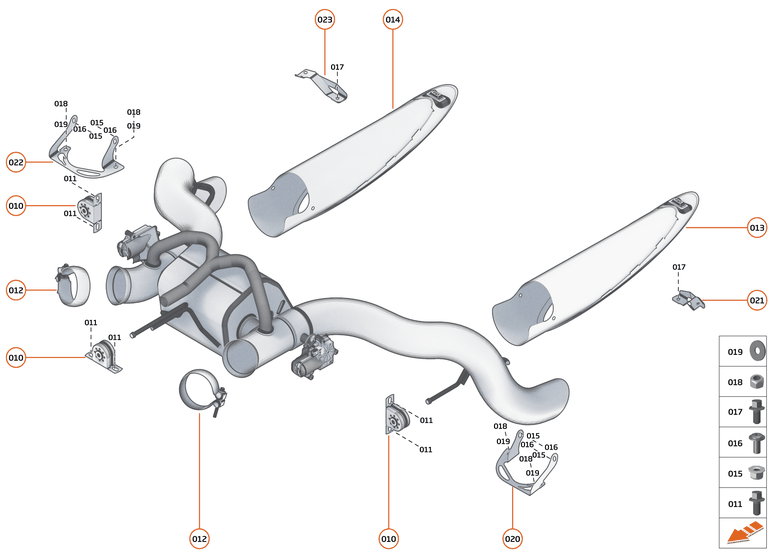

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11H0065CP	ISOLATOR - MUFFLER MOUNTING	11H0065CP ISOLATOR - MUFFLER MOUNTING Row ID: ID__11H0065CP_ContPgHS;	-	3	Enquire
011	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID__00RA061_ContPgHS;	-	6	Enquire
012	11H0173CP	CLAMP - SPHERICAL JOINT - EXHAUST MUFFLER	11H0173CP CLAMP - SPHERICAL JOINT - EXHAUST MUFFLER Row ID: ID__11H0173CP_ContPgHS;	-	2	Enquire
013	23HA013CP	EXHAUST FINISHER LH	23HA013CP EXHAUST FINISHER LH Row ID: ID__23HA013CP_ContPgHS;	-	1	Enquire
014	23HA047CP	EXHAUST FINISHER RH	23HA047CP EXHAUST FINISHER RH Row ID: ID__23HA047CP_ContPgHS;	-	1	Enquire
015	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS;	-	4	Enquire
016	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	4	Enquire
017	00RA458	BOLT - M6X10 - FLANGED	00RA458 BOLT - M6X10 - FLANGED Row ID: ID__00RA458_ContPgHS;	-	2	Enquire
018	00RA428	LOCKING NUT M5 - HEX	00RA428 LOCKING NUT M5 - HEX Row ID: ID__00RA428_ContPgHS;	-	4	Enquire
019	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID__00RC103_ContPgHS;	-	4	Enquire
020	23HA077CP	BRACKET - EXHAUST FINISHER - F	23HA077CP BRACKET - EXHAUST FINISHER - F Row ID: ID__23HA077CP_ContPgHS;	-	1	Enquire
021	23HA078CP	BRACKET - EXHAUST FINISHER - R	23HA078CP BRACKET - EXHAUST FINISHER - R Row ID: ID__23HA078CP_ContPgHS;	-	1	Enquire
022	23HA079CP	BRACKET - EXHAUST FINISHER - F	23HA079CP BRACKET - EXHAUST FINISHER - F Row ID: ID__23HA079CP_ContPgHS;	-	1	Enquire
023	23HA080CP	BRACKET - EXHAUST FINISHER - R	23HA080CP BRACKET - EXHAUST FINISHER - R Row ID: ID__23HA080CP_ContPgHS;	-	1	Enquire
024	23HA022CP	MUFFLER TAILPIPE - EXHAUST	23HA022CP MUFFLER TAILPIPE - EXHAUST Row ID: ID__23HA022CP_ContPgHS;	-	1	Enquire
024	23HA081CP	MUFFLER TAILPIPE - EXHAUST	23HA081CP MUFFLER TAILPIPE - EXHAUST Row ID: ID__23HA081CP_ContPgHS;	-	1	Enquire
025	14HA066CP	ELECTRONIC ACUATOR - EXHAUST VALVE - MUFFLER	14HA066CP ELECTRONIC ACUATOR - EXHAUST VALVE - MUFFLER Row ID: ID__14HA066CP_ContPgHS;	-	1	Enquire
