Name: Front suspension
Rating: 5.0 (1 reviews)

Front suspension of Maserati Maserati GranTurismo MC Stradale

View All

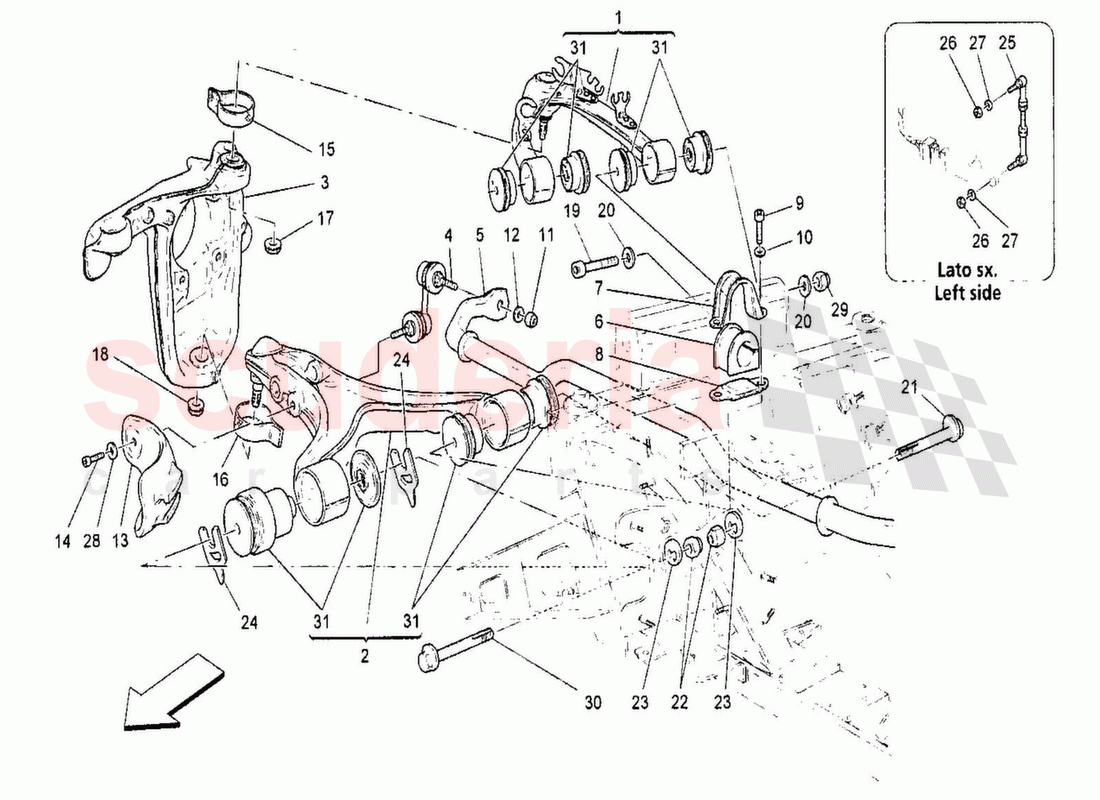

Maserati GranTurismo MC Stradale - Front suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	259573	LH FRONT/RH REAR BALL SUSPENSION TIE ROD	$89.36	To Order
	259572	RH Front / LH Rear Roll Bar Link	$97.30	To Order

Photo	Part No	Description	Price (each)	Stock
	199126	STABILIZER BAR	$240.71	To Order

Photo	Part No	Description	Price (each)	Stock
	199224	Roll Bar Rubber Bush	$19.06	To Order

Photo	Part No	Description	Price (each)	Stock
	271290	UPPER SUPPORT	$9.80	To Order

Photo	Part No	Description	Price (each)	Stock
	271288	LOWER SUPPORT	$7.01	To Order

Photo	Part No	Description	Price (each)	Stock
	14307534	SCREW	$10.02	To Order

Photo	Part No	Description	Price (each)	Stock
	12604574	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10x1.25x10	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	Wavy Washer 10mm	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	239645	LH Air Flow Flap	$45.65	To Order
	239646	R.H. AIR FLOW FLAP	$45.65	To Order

Photo	Part No	Description	Price (each)	Stock
	314290	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	160019	JOINT LOWER PROTECTION	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	160019	JOINT LOWER PROTECTION	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	245240	FLANGED NUT M14 X 1.5	$13.16	To Order

Photo	Part No	Description	Price (each)	Stock
	245240	FLANGED NUT M14 X 1.5	$13.16	To Order
	247308	NUT FOR SUSPENSION LEVER ADJUSTING	$13.67	To Order

Photo	Part No	Description	Price (each)	Stock
	15977934	SCREW - VALID FOR USA & CANADA	$10.76	To Order

Photo	Part No	Description	Price (each)	Stock
	13550634	WASHER	$4.38	To Order

Photo	Part No	Description	Price (each)	Stock
	240876	BOLT HEX HEAD ECCENTRIC	$144.17	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	Nut M14 x 1.5	$6.73	To Order

Photo	Part No	Description	Price (each)	Stock
	240877	Washer (Eccentric)	$7.30	To Order

Photo	Part No	Description	Price (each)	Stock
	198038	SPACER 0.5MM	$6.01	To Order
	198039	SPACER 0.75MM	$5.82	To Order
	198040	SPACER	$5.51	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	188629	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	$35.21	To Order

Photo	Part No	Description	Price (each)	Stock
	26102741	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498824	WASHERD.6.4-16.3X1	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	12641024	WASHER	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	Nut M14 x 1.5	$6.73	To Order

Photo	Part No	Description	Price (each)	Stock
	240875	Bolt Hex Head Eccentric	$145.90	To Order

Photo	Part No	Description	Price (each)	Stock
	980139889	Front Suspension Silent Bloc Kit	$663.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	980139894	LH FRONT SUSPENSION KIT	980139894 LH FRONT SUSPENSION KIT	$2,060.57	1
-	980139893	RH Front Suspension Kit	980139893 RH Front Suspension Kit	$2,060.57	1
4	259573	LH FRONT/RH REAR BALL SUSPENSION TIE ROD	259573 LH FRONT/RH REAR BALL SUSPENSION TIE ROD	$89.36	1
4	259572	RH Front / LH Rear Roll Bar Link	259572 RH Front / LH Rear Roll Bar Link	$97.30 MSRP: ~~105.74~~ (8% off)	1
5	199126	STABILIZER BAR	199126 STABILIZER BAR	$240.71	1
6	199224	Roll Bar Rubber Bush	199224 Roll Bar Rubber Bush	$19.06	2
7	271290	UPPER SUPPORT	271290 UPPER SUPPORT	$9.80	2
8	271288	LOWER SUPPORT	271288 LOWER SUPPORT	$7.01	2
9	14307534	SCREW	14307534 SCREW	$10.02	4
10	12604574	WASHER	12604574 WASHER	$1.55	4
11	102742	Nyloc Nut M10x1.25x10	102742 Nyloc Nut M10x1.25x10	$2.05	2
12	12601474	Wavy Washer 10mm	12601474 Wavy Washer 10mm	$1.62	2
13	239645	LH Air Flow Flap	239645 LH Air Flow Flap	$45.65	1
13	239646	R.H. AIR FLOW FLAP	239646 R.H. AIR FLOW FLAP	$45.65	1
14	314290	SCREW	314290 SCREW	$2.83	2
15	160019	JOINT LOWER PROTECTION	160019 JOINT LOWER PROTECTION	$6.62	2
16	160019	JOINT LOWER PROTECTION	160019 JOINT LOWER PROTECTION	$6.62	2
17	245240	FLANGED NUT M14 X 1.5	245240 FLANGED NUT M14 X 1.5	$13.16	2
18	245240	FLANGED NUT M14 X 1.5	245240 FLANGED NUT M14 X 1.5	$13.16	2
18	247308	NUT FOR SUSPENSION LEVER ADJUSTING	247308 NUT FOR SUSPENSION LEVER ADJUSTING	$13.67	1
19	15977934	SCREW - VALID FOR USA & CANADA	15977934 SCREW - VALID FOR USA & CANADA	$10.76	4
20	13550634	WASHER	13550634 WASHER	$4.38	4
21	240876	BOLT HEX HEAD ECCENTRIC	240876 BOLT HEX HEAD ECCENTRIC	$144.17	2
22	203795	Nut M14 x 1.5	203795 Nut M14 x 1.5	$6.73	2
23	240877	Washer (Eccentric)	240877 Washer (Eccentric)	$7.30	4
24	198038	SPACER 0.5MM	198038 SPACER 0.5MM	$6.01	16
24	198039	SPACER 0.75MM	198039 SPACER 0.75MM	$5.82	16
24	198040	SPACER	198040 SPACER	$5.51	16
24	198041	SPACER 1.75MM	198041 SPACER 1.75MM	$4.68	16
24	198042	SPACER 3MM	198042 SPACER 3MM	$6.29	16
25	188629	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	188629 TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	$35.21	1
26	26102741	Nut	26102741 Nut	-	2	Enquire
27	14498824	WASHERD.6.4-16.3X1	14498824 WASHERD.6.4-16.3X1	$1.97	2
28	12641024	WASHER	12641024 WASHER	$3.40	2
29	203795	Nut M14 x 1.5	203795 Nut M14 x 1.5	$6.73	4
30	240875	Bolt Hex Head Eccentric	240875 Bolt Hex Head Eccentric	$145.90	2
31	980139889	Front Suspension Silent Bloc Kit	980139889 Front Suspension Silent Bloc Kit	$663.53	2
