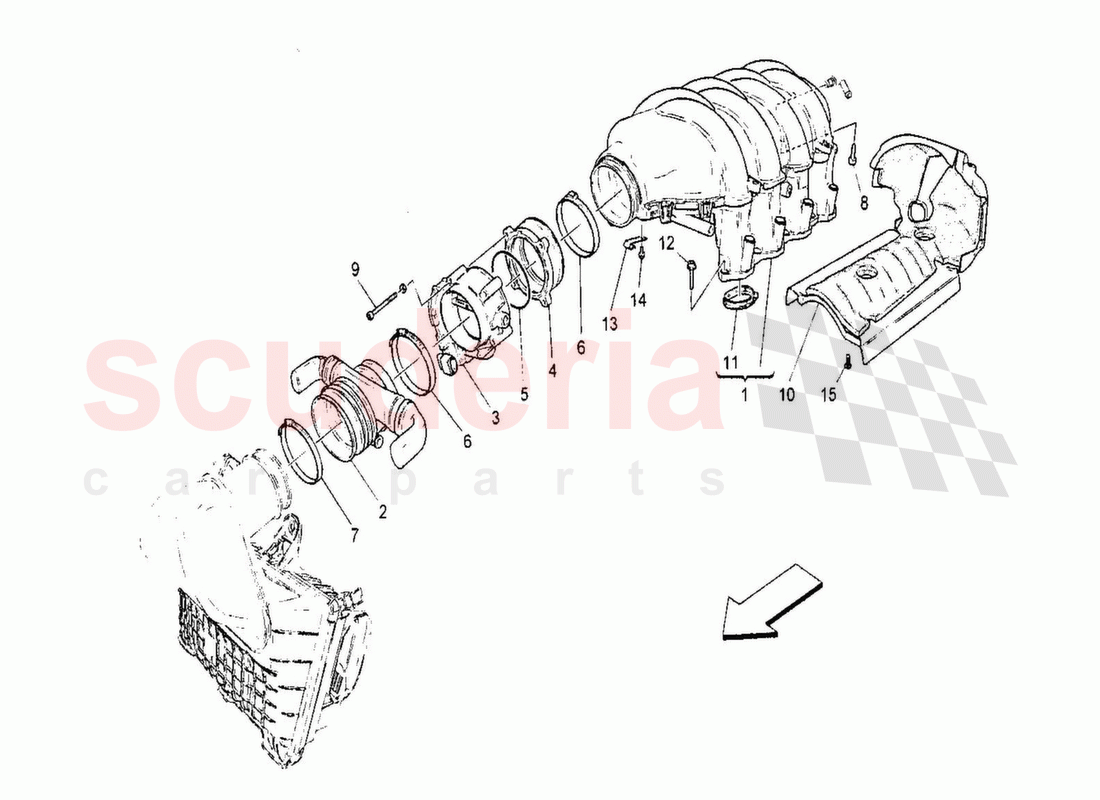

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	252163	INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215889	SLEEVE ON THE MASS AIR FLOW SENSOR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	331005	THROTTLE BODY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	240262	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150302	OIL PUMP O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	274889	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREWM6X45	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224757	SOUNDPROOFING ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	242177	SOCKET HEAD SCREW WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	255737	PIN	Enquire	IN STOCK

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	252163	INTAKE MANIFOLD	252163 INTAKE MANIFOLD	-	1	Enquire
2	215889	SLEEVE ON THE MASS AIR FLOW SENSOR ARRIVING SOON	215889 SLEEVE ON THE MASS AIR FLOW SENSOR ARRIVING SOON	-	1	Enquire
3	331005	THROTTLE BODY IN STOCK	331005 THROTTLE BODY IN STOCK	-	1	Enquire
4	240262	SPACER	240262 SPACER	-	1	Enquire
5	150302	OIL PUMP O-RING IN STOCK	150302 OIL PUMP O-RING IN STOCK	-	1	Enquire
6	190151	Clamp IN STOCK	190151 Clamp IN STOCK	-	2	Enquire
7	274889	CLAMP	274889 CLAMP	-	1	Enquire
8	86768100	SCREW	86768100 SCREW	-	1	Enquire
9	231624	SCREWM6X45	231624 SCREWM6X45	-	4	Enquire
10	224757	SOUNDPROOFING ELEMENT	224757 SOUNDPROOFING ELEMENT	-	1	Enquire
11	203134	GASKET	203134 GASKET	-	8	Enquire
11	255738	Intake Manifold Gasket IN STOCK	255738 Intake Manifold Gasket IN STOCK	-	8	Enquire
12	242177	SOCKET HEAD SCREW WITH WASHER IN STOCK	242177 SOCKET HEAD SCREW WITH WASHER IN STOCK	-	16	Enquire
13	203130	CLIP IN STOCK	203130 CLIP IN STOCK	-	1	Enquire
13	255745	CLIP	255745 CLIP	-	1	Enquire
14	203133	SCREW	203133 SCREW	-	1	Enquire
14	255746	SCREW	255746 SCREW	-	1	Enquire
15	255737	PIN IN STOCK	255737 PIN IN STOCK	-	6	Enquire
