Differential and Rear Axle Shafts of Maserati Maserati GranTurismo MC Stradale

View All

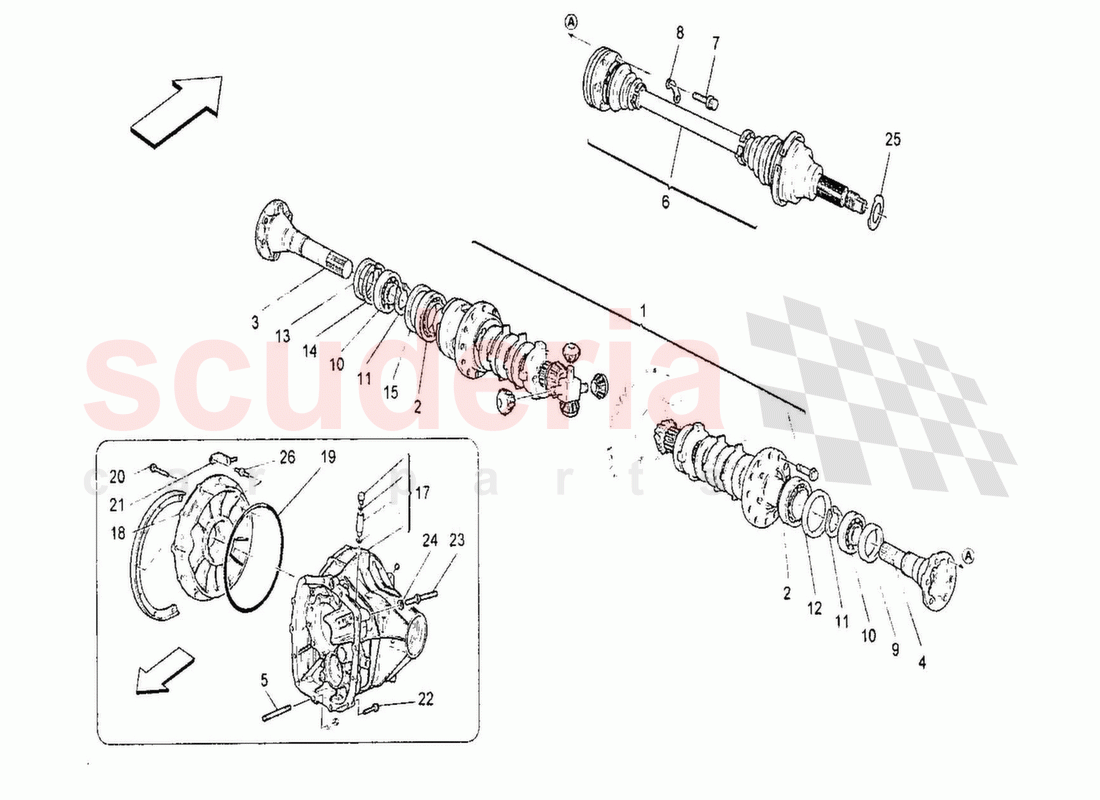

Maserati GranTurismo MC Stradale - Differential and Rear Axle Shafts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	192735	COMPLETE SELF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199056	DIFFERENTIAL AXLE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199055	DIFFERENTIAL AXLE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270624	AXLE SHAFT ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223916	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222679	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181618	RH Seal Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	BEARING Dia. 50X80X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185028	SPACER RING	Enquire	To Order
	185027	SPACER RING	Enquire	To Order
	185026	SPACER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185722	LH OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185723	CIRCLIP (SEEGER-RING)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185034	SPACER RING	Enquire	To Order
	185033	SPACER RING	Enquire	To Order
	185029	SPACER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255021	COMPLETE DIFFERENTIAL BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246275	DIFFERENTIAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14468781	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149694	FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190044	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	284616	Axel Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236076	STUD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	192735	COMPLETE SELF	192735 COMPLETE SELF	-	1	Enquire
2	184998	ROLLER BEARING	184998 ROLLER BEARING	-	2	Enquire
3	199056	DIFFERENTIAL AXLE SHAFT	199056 DIFFERENTIAL AXLE SHAFT	-	1	Enquire
4	199055	DIFFERENTIAL AXLE SHAFT	199055 DIFFERENTIAL AXLE SHAFT	-	1	Enquire
5	13543624	STUD	13543624 STUD	-	2	Enquire
6	270624	AXLE SHAFT ASSEMBLY	270624 AXLE SHAFT ASSEMBLY	-	2	Enquire
7	223916	SCREW	223916 SCREW	-	12	Enquire
8	222679	PLATE	222679 PLATE	-	6	Enquire
9	181618	RH Seal Ring	181618 RH Seal Ring	-	1	Enquire
10	184995	BEARING Dia. 50X80X16	184995 BEARING Dia. 50X80X16	-	2	Enquire
11	184994	CIRCLIP	184994 CIRCLIP	-	2	Enquire
12	185028	SPACER RING	185028 SPACER RING	-	1	Enquire
12	185027	SPACER RING	185027 SPACER RING	-	1	Enquire
12	185026	SPACER RING	185026 SPACER RING	-	1	Enquire
13	185722	LH OIL SEAL	185722 LH OIL SEAL	-	1	Enquire
14	185723	CIRCLIP (SEEGER-RING)	185723 CIRCLIP (SEEGER-RING)	-	1	Enquire
15	185034	SPACER RING	185034 SPACER RING	-	1	Enquire
15	185033	SPACER RING	185033 SPACER RING	-	1	Enquire
15	185029	SPACER RING	185029 SPACER RING	-	1	Enquire
17	255021	COMPLETE DIFFERENTIAL BOX	255021 COMPLETE DIFFERENTIAL BOX	-	1	Enquire
18	246275	DIFFERENTIAL COVER	246275 DIFFERENTIAL COVER	-	1	Enquire
19	14468781	O.R. GASKET	14468781 O.R. GASKET	-	1	Enquire
20	13839224	SCREW	13839224 SCREW	-	1	Enquire
21	149694	FIXING BRACKET	149694 FIXING BRACKET	-	2	Enquire
22	16287524	SCREW	16287524 SCREW	-	9	Enquire
23	190044	STUD	190044 STUD	-	1	Enquire
24	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8	-	1	Enquire
25	284616	Axel Spacer	284616 Axel Spacer	-	2	Enquire
26	236076	STUD	236076 STUD	-	3	Enquire
