Actuation Hydraulic Parts For F1 Gearbox

Maserati GranTurismo MC Stradale

Find Your Part

Maserati GranTurismo MC Stradale - Actuation Hydraulic Parts for F1 Gearbox

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
275445 Actuator Assembly Enquire To Order
Photo Part No Description Price (each) Stock
260542 QUICK DISCONNECT KIT Enquire To Order
Photo Part No Description Price (each) Stock
231622 SCREWM6X35 Enquire To Order
231621 Allen Screw M6 x 30 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
186776 ACTUATOR SUPPORT UPPER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
86768100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 Enquire To Order
Photo Part No Description Price (each) Stock
14048211 NUT Enquire To Order
Photo Part No Description Price (each) Stock
14499421 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14301924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 Enquire To Order
Photo Part No Description Price (each) Stock
14360024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601474 Wavy Washer 10mm Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
225148 FEMALE COUPLING Enquire To Order
Photo Part No Description Price (each) Stock
236694 CLUTCH OIL HOSE Enquire To Order
Photo Part No Description Price (each) Stock
199410 FILLER NECK Enquire To Order
Photo Part No Description Price (each) Stock
10261060 COPPER WASHER D.12- 16 X 1.5MM Enquire To Order
Photo Part No Description Price (each) Stock
145992 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
12643724 Washer 6.15-18x1.5 Enquire To Order
Photo Part No Description Price (each) Stock
980139927 ACTUATOR COVER KIT Enquire To Order
View All

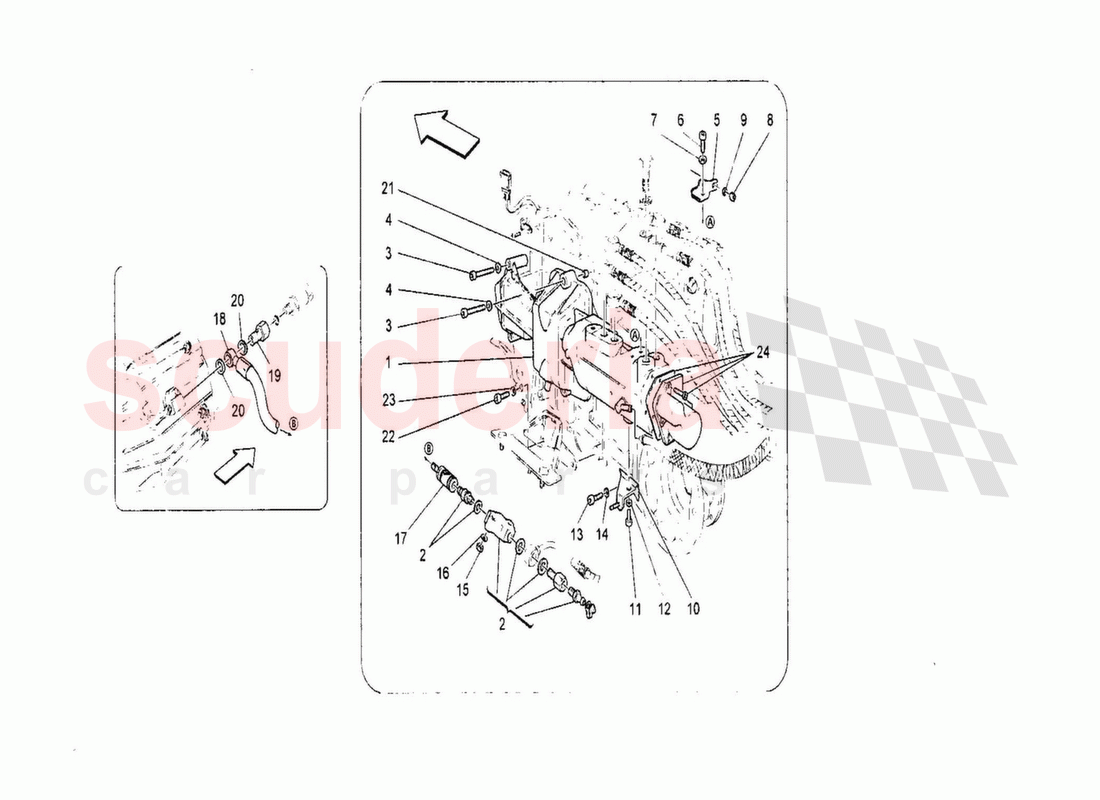

Actuation Hydraulic Parts for F1 Gearbox of Maserati Maserati GranTurismo MC Stradale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 275445
Actuator Assembly 		- 1 Enquire
2 260542
QUICK DISCONNECT KIT 		- 1 Enquire
3 231622
SCREWM6X35 		- 6 Enquire
3 231621
Allen Screw M6 x 30 		- 2 Enquire
4 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 8 Enquire
5 186776
ACTUATOR SUPPORT UPPER BRACKET 		- 1 Enquire
6 86768100
SCREW 		- 1 Enquire
7 12601374
WASHERD. 8,40-15X 0,8 		- 1 Enquire
8 14048211
NUT 		- 1 Enquire
9 14499421
WASHER 		- 1 Enquire
10 199723
ACTUATOR SUPPORT LOWER BRACKET 		- 1 Enquire
11 14301924
SCREW 		- 1 Enquire
12 12601374
WASHERD. 8,40-15X 0,8 		- 1 Enquire
13 14360024
SCREW 		- 1 Enquire
14 12601474
Wavy Washer 10mm 		- 1 Enquire
15 14039614
NUT 		- 2 Enquire
16 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
17 225148
FEMALE COUPLING 		- 1 Enquire
18 236694
CLUTCH OIL HOSE 		- 1 Enquire
19 199410
FILLER NECK 		- 1 Enquire
20 10261060
COPPER WASHER D.12- 16 X 1.5MM 		- 2 Enquire
21 145992
DOWEL 		- 2 Enquire
22 248334
SCREW M6 X 14MM 		- 2 Enquire
23 12643724
Washer 6.15-18x1.5 		- 2 Enquire
24 980139927
ACTUATOR COVER KIT 		- 1 Enquire
