Name: Braking Devices on Front Wheels
Rating: 5.0 (1 reviews)

View All

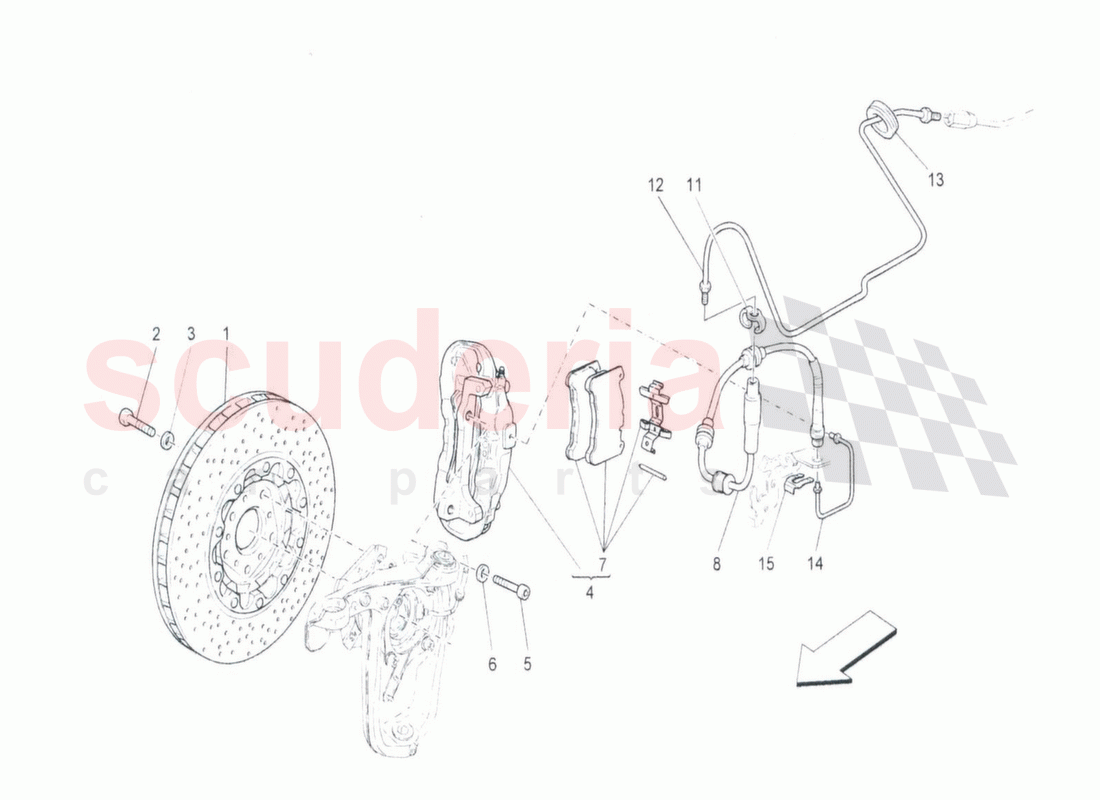

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	272384	Front Brake Disc	$10,263.45	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREWM8X50	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	14311734	SCREW	$35.49	To Order

Photo	Part No	Description	Price (each)	Stock
	11194174	WASHER	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock

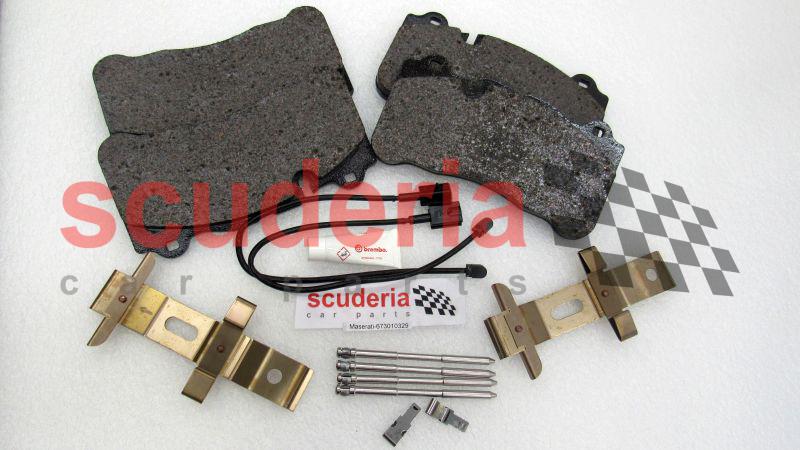

	673010329	Kit of Front Pads	$1,387.51	To Order

Photo	Part No	Description	Price (each)	Stock

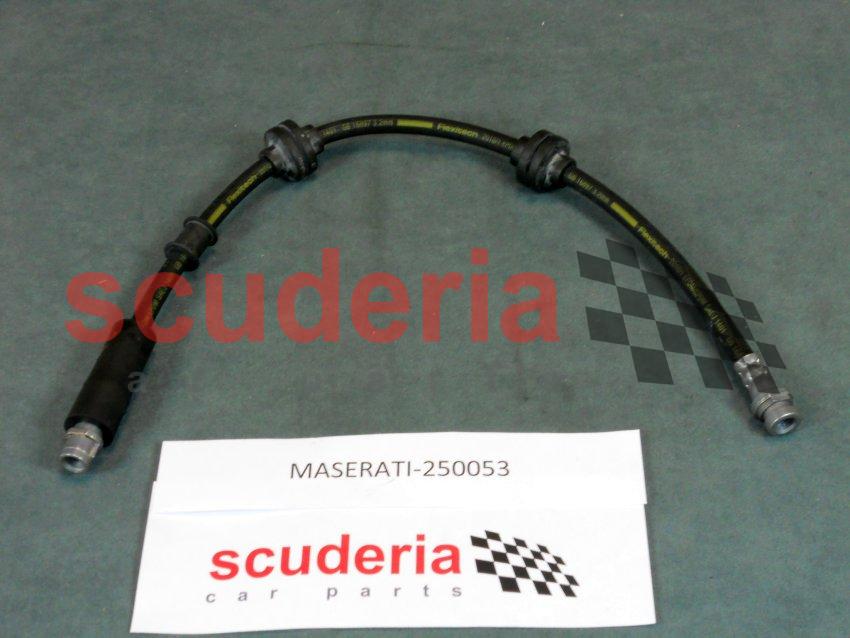

	250053	Flexible Pipe to Front Calipers	$140.06	To Order

Photo	Part No	Description	Price (each)	Stock
	228185	CLIP	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	252239	RIGID PIPE FROM L.H. CONNECTION TO L.H. FRONT WHEEL	$23.67	To Order
	198082	RIGID PIPE FROM RH CONNECTION TO RH FRONT WHEEL	$17.10	To Order

Photo	Part No	Description	Price (each)	Stock
	10396680	INTERMEDIATE RING	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	252270	Pipe from Flexible to LH Caliper	$55.50	To Order
	252272	Pipe from Flexible to RH Caliper	$55.90	To Order

Photo	Part No	Description	Price (each)	Stock
	181897	CLIP	$1.97	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	272384	Front Brake Disc	272384 Front Brake Disc	$10,263.45	2
2	14306924	SCREWM8X50	14306924 SCREWM8X50	$2.83	4
3	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8	$1.62	4
5	14311734	SCREW	14311734 SCREW	$35.49	4
6	11194174	WASHER	11194174 WASHER	$3.40 MSRP: ~~5.62~~ (39.5% off)	4
7	673010329	Kit of Front Pads	673010329 Kit of Front Pads	$1,387.51	1
8	250053	Flexible Pipe to Front Calipers	250053 Flexible Pipe to Front Calipers	$140.06	2
11	228185	CLIP	228185 CLIP	$5.22	2
12	252239	RIGID PIPE FROM L.H. CONNECTION TO L.H. FRONT WHEEL	252239 RIGID PIPE FROM L.H. CONNECTION TO L.H. FRONT WHEEL	$23.67	1
12	198082	RIGID PIPE FROM RH CONNECTION TO RH FRONT WHEEL	198082 RIGID PIPE FROM RH CONNECTION TO RH FRONT WHEEL	$17.10	1
13	10396680	INTERMEDIATE RING	10396680 INTERMEDIATE RING	$1.97	2
14	252270	Pipe from Flexible to LH Caliper	252270 Pipe from Flexible to LH Caliper	$55.50	1
14	252272	Pipe from Flexible to RH Caliper	252272 Pipe from Flexible to RH Caliper	$55.90	1
15	181897	CLIP	181897 CLIP	$1.97	1
