BRAKES AND CLUTCH HYDRAULIC CONTROLS of Maserati Maserati 4200 Coupe (2005-2007) CC

View All

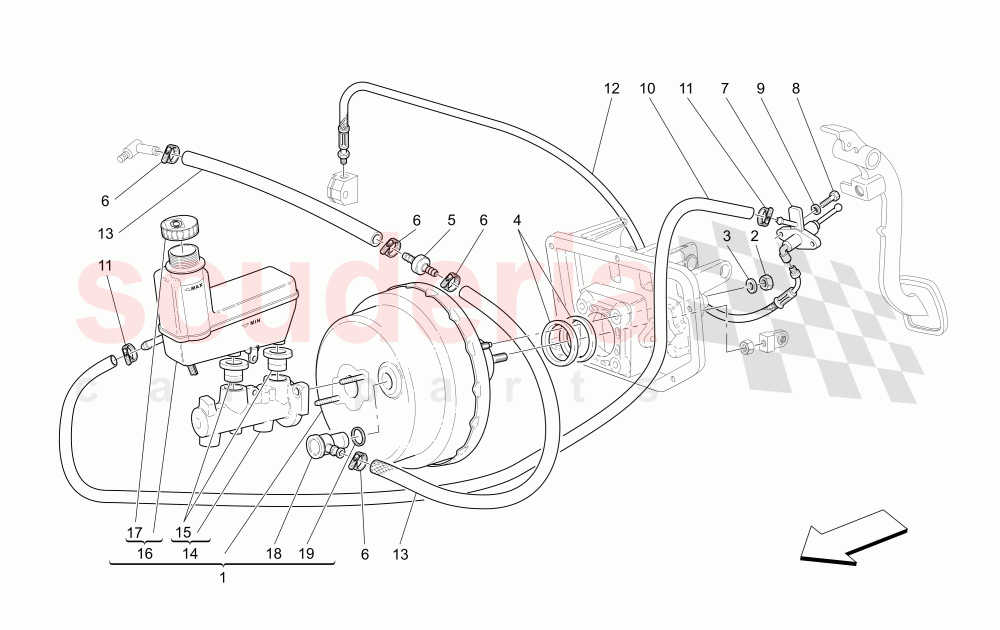

Maserati 4200 Coupe (2005-2007) CC - BRAKES AND CLUTCH HYDRAULIC CONTROLS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	195560	BRAKE SERVO ASSEMBLY	Enquire	To Order
	196150	BRAKE SERVO ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	367402309	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193186	VACUUM VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184753	CLUTCH PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197130	BRAKE LIQUID PIPE	Enquire	To Order
	197127	BRAKE LIQUID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	Screw Collar D15.7mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189061	CLUTCH CONTROL TUBE	Enquire	To Order
	181769	CLUTCH CONTROL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302220611	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980138133	BRAKE PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980138134	BRAKE PUMP RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197024	OIL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

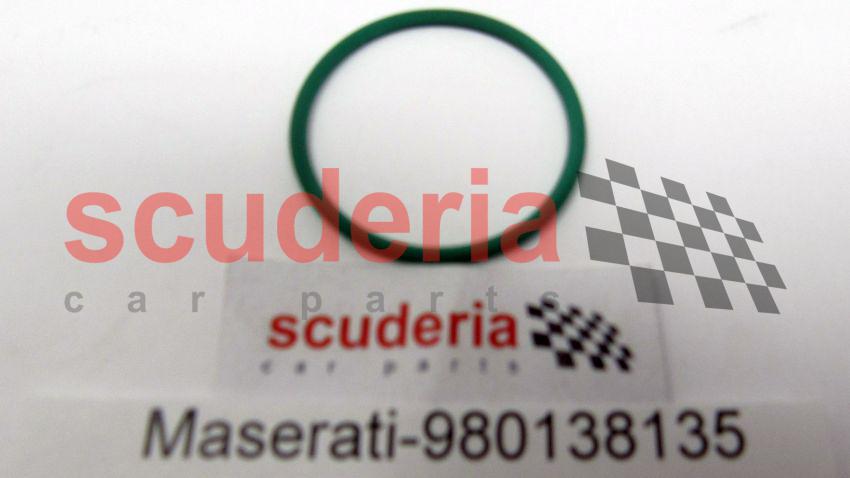

	980138135	OIL TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980138136	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980138137	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	195560	BRAKE SERVO ASSEMBLY	195560 BRAKE SERVO ASSEMBLY Not for F1	-	1	Enquire
1	196150	BRAKE SERVO ASSEMBLY	196150 BRAKE SERVO ASSEMBLY Valid for F1	-	1	Enquire
2	147985	NUT	147985 NUT	-	4	Enquire
3	84653800	WASHER	84653800 WASHER	-	4	Enquire
4	367402309	GASKET	367402309 GASKET	-	2	Enquire
5	193186	VACUUM VALVE	193186 VACUUM VALVE	-	1	Enquire
6	262109	COLLAR	262109 COLLAR	-	4	Enquire
7	184753	CLUTCH PUMP	184753 CLUTCH PUMP Not for F1	-	1	Enquire
8	16043634	SCREW	16043634 SCREW Not for F1	-	2	Enquire
9	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8 D. 8,40-15X 0,8 Not for F1	-	2	Enquire
10	197130	BRAKE LIQUID PIPE	197130 BRAKE LIQUID PIPE Not for F1- -Valid for RHD	-	1	Enquire
10	197127	BRAKE LIQUID PIPE	197127 BRAKE LIQUID PIPE Not for F1- -Not for RHD	-	1	Enquire
11	13432070	Screw Collar D15.7mm	13432070 Screw Collar D15.7mm Not for F1	-	2	Enquire
12	189061	CLUTCH CONTROL TUBE	189061 CLUTCH CONTROL TUBE Not for F1- -Valid for RHD	-	1	Enquire
12	181769	CLUTCH CONTROL TUBE	181769 CLUTCH CONTROL TUBE Not for F1- -Not for RHD	-	1	Enquire
13	302220611	RUBBER HOSE	302220611 RUBBER HOSE Supplied in meters- -(Minimum quantity 1m. or multiples)	-	-	Enquire
14	980138133	BRAKE PUMP	980138133 BRAKE PUMP	-	1	Enquire
15	980138134	BRAKE PUMP RUBBER	980138134 BRAKE PUMP RUBBER	-	2	Enquire
16	197024	OIL TANK	197024 OIL TANK Not for F1	-	1	Enquire
17	980138135	OIL TANK PLUG	980138135 OIL TANK PLUG	-	1	Enquire
18	980138136	UNION	980138136 UNION	-	1	Enquire
19	980138137	GASKET	980138137 GASKET	-	1	Enquire
