COMPLETE PEDAL BOARD UNIT of Maserati Maserati 4200 Coupe (2005-2007) CC

View All

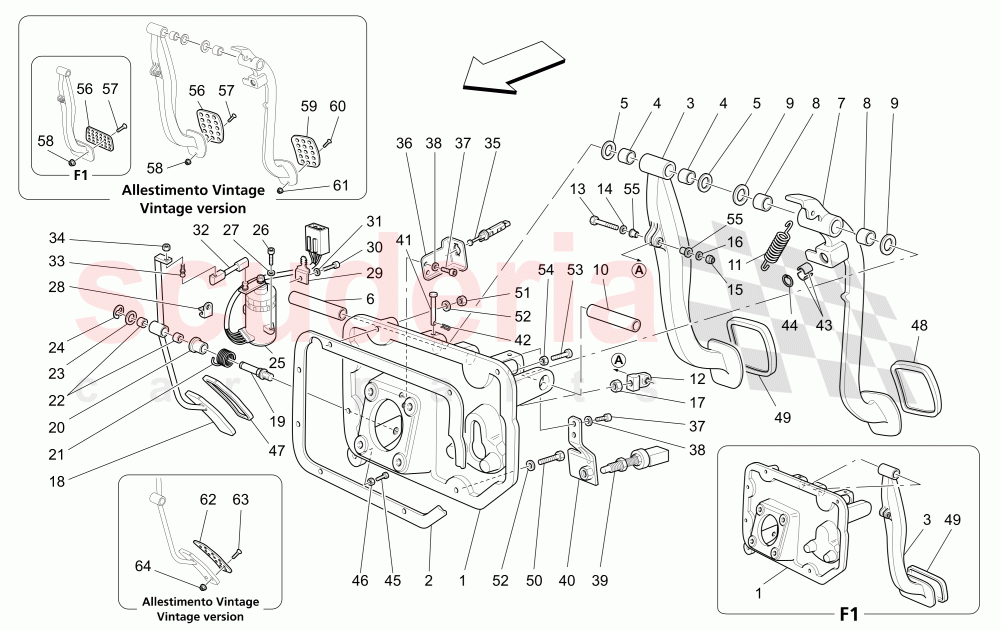

Maserati 4200 Coupe (2005-2007) CC - COMPLETE PEDAL BOARD UNIT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	190840	PEDAL SUPPORT	Enquire	To Order
	190839	PEDAL SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	378496348	SUPPORT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191313	BRAKE PEDAL	Enquire	To Order
	201995	BRAKE PEDAL	Enquire	To Order
	191314	BRAKE PEDAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	318420320	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112128	SPACER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	378496329	PEDALS SUPPORT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201991	CLUTCH PEDAL	Enquire	To Order
	191312	CLUTCH PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318420320	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112128	SPACER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	378496329	PEDALS SUPPORT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101305	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184749	SERVOBRAKE PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12654421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUTM8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201994	ACCELERATOR PEDAL	Enquire	To Order
	192593	ACCELERATOR PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186666	ACCELERATOR PEDAL PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388400407	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388400364	RETURN SPRING FOR PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318420334	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388400346	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11088076	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183656	ACCELERATOR PEDAL POTENTIOMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383000318	RETAINING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383000315	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREWM6X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82476740	ACCELERATOR PEDALTIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	452054801	BALL PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14075611	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334064	BRAKE PEDAL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190853	BRAKE PEDAL SWITCH SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREWM6X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133555	CLUTCH PEDAL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190854	CLUTCH PEDAL SWITCH SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	378496377	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58841309	SAFETY CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186664	CLUTCH PIN FIXING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11057876	CIRCLIP (SEEGER-RING)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUTM8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318420301	ACCELERATOR PEDAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	378430300	PEDAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	378430300	PEDAL COVER	Enquire	To Order
	388415300	BRAKE PEDAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187014	CLUTCH PEDAL ADJUSTEMENT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUTM8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191316	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201103	PEDAL PLATE	Enquire	To Order
	212187	PEDAL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441324	Countersunk Allen Screw M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212187	PEDAL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441324	Countersunk Allen Screw M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205025	ACCELERATOR PEDAL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14440734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058311	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	190840	PEDAL SUPPORT	190840 PEDAL SUPPORT Valid for F1	-	1	Enquire
1	190839	PEDAL SUPPORT	190839 PEDAL SUPPORT Not for F1	-	1	Enquire
2	378496348	SUPPORT GASKET	378496348 SUPPORT GASKET	-	1	Enquire
3	191313	BRAKE PEDAL	191313 BRAKE PEDAL Not for F1- -Standard	-	1	Enquire
3	201995	BRAKE PEDAL	201995 BRAKE PEDAL Valid for F1- -Optional- -Vintage version	-	1	Enquire
3	191314	BRAKE PEDAL	191314 BRAKE PEDAL Valid for F1- -Standard	-	1	Enquire
3	201992	BRAKE PEDAL	201992 BRAKE PEDAL Not for F1- -Optional- -Vintage version	-	1	Enquire
4	318420320	BUSHING	318420320 BUSHING	-	2	Enquire
5	112128	SPACER WASHER	112128 SPACER WASHER	-	2	Enquire
6	378496329	PEDALS SUPPORT PIN	378496329 PEDALS SUPPORT PIN	-	1	Enquire
7	201991	CLUTCH PEDAL	201991 CLUTCH PEDAL Not for F1- -Optional- -Vintage version	-	1	Enquire
7	191312	CLUTCH PEDAL	191312 CLUTCH PEDAL Not for F1- -Standard	-	1	Enquire
8	318420320	BUSHING	318420320 BUSHING Not for F1	-	2	Enquire
9	112128	SPACER WASHER	112128 SPACER WASHER Not for F1	-	2	Enquire
10	378496329	PEDALS SUPPORT PIN	378496329 PEDALS SUPPORT PIN Not for F1	-	1	Enquire
11	101305	SPRING	101305 SPRING Not for F1	-	1	Enquire
12	184749	SERVOBRAKE PIN	184749 SERVOBRAKE PIN	-	1	Enquire
13	16044424	SCREW	16044424 SCREW	-	1	Enquire
14	12654421	WASHER	12654421 WASHER	-	1	Enquire
15	147985	NUT	147985 NUT	-	1	Enquire
16	14499421	WASHER	14499421 WASHER	-	1	Enquire
17	16102314	NUTM8	16102314 NUTM8	-	1	Enquire
18	201994	ACCELERATOR PEDAL	201994 ACCELERATOR PEDAL Optional- -Vintage version	-	1	Enquire
18	192593	ACCELERATOR PEDAL	192593 ACCELERATOR PEDAL Standard	-	1	Enquire
19	186666	ACCELERATOR PEDAL PIN	186666 ACCELERATOR PEDAL PIN	-	1	Enquire
20	388400407	BUSHING	388400407 BUSHING	-	1	Enquire
21	388400364	RETURN SPRING FOR PEDAL	388400364 RETURN SPRING FOR PEDAL	-	1	Enquire
22	318420334	BUSHING	318420334 BUSHING	-	2	Enquire
23	388400346	WASHER	388400346 WASHER	-	1	Enquire
24	11088076	CIRCLIP	11088076 CIRCLIP	-	1	Enquire
25	183656	ACCELERATOR PEDAL POTENTIOMETER	183656 ACCELERATOR PEDAL POTENTIOMETER	-	1	Enquire
26	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM	-	2	Enquire
27	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	-	2	Enquire
28	383000318	RETAINING CLIP	383000318 RETAINING CLIP	-	1	Enquire
29	383000315	PLATE	383000315 PLATE	-	1	Enquire
30	233600	SCREWM6X12	233600 SCREWM6X12	-	1	Enquire
31	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	-	1	Enquire
32	82476740	ACCELERATOR PEDALTIE ROD	82476740 ACCELERATOR PEDALTIE ROD	-	1	Enquire
33	452054801	BALL PIN	452054801 BALL PIN	-	1	Enquire
34	14075611	NUT	14075611 NUT	-	1	Enquire
35	334064	BRAKE PEDAL SWITCH	334064 BRAKE PEDAL SWITCH	-	1	Enquire
36	190853	BRAKE PEDAL SWITCH SUPPORT	190853 BRAKE PEDAL SWITCH SUPPORT	-	1	Enquire
37	233600	SCREWM6X12	233600 SCREWM6X12	-	4	Enquire
38	127494	WASHER	127494 WASHER	-	4	Enquire
39	133555	CLUTCH PEDAL SWITCH	133555 CLUTCH PEDAL SWITCH Not for F1	-	1	Enquire
40	190854	CLUTCH PEDAL SWITCH SUPPORT	190854 CLUTCH PEDAL SWITCH SUPPORT Not for F1	-	1	Enquire
41	378496377	PIN	378496377 PIN (Quantity 1 for F1)	-	2	Enquire
42	58841309	SAFETY CLIP	58841309 SAFETY CLIP (Quantity 1 for F1)	-	2	Enquire
43	186664	CLUTCH PIN FIXING BUSH	186664 CLUTCH PIN FIXING BUSH Not for F1	-	2	Enquire
44	11057876	CIRCLIP (SEEGER-RING)	11057876 CIRCLIP (SEEGER-RING) Not for F1	-	1	Enquire
45	16043634	SCREW	16043634 SCREW	-	1	Enquire
46	16102314	NUTM8	16102314 NUTM8 M8	-	1	Enquire
47	318420301	ACCELERATOR PEDAL COVER	318420301 ACCELERATOR PEDAL COVER	-	1	Enquire
48	378430300	PEDAL COVER	378430300 PEDAL COVER Not for F1	-	1	Enquire
49	378430300	PEDAL COVER	378430300 PEDAL COVER Not for F1	-	1	Enquire
49	388415300	BRAKE PEDAL COVER	388415300 BRAKE PEDAL COVER Valid for F1	-	1	Enquire
50	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	4	Enquire
51	147985	NUT	147985 NUT	-	3	Enquire
52	84653800	WASHER	84653800 WASHER	-	7	Enquire
53	187014	CLUTCH PEDAL ADJUSTEMENT PIN	187014 CLUTCH PEDAL ADJUSTEMENT PIN Not for F1	-	1	Enquire
54	16102314	NUTM8	16102314 NUTM8 M8 Not for F1	-	1	Enquire
55	191316	BUSHING	191316 BUSHING	-	2	Enquire
56	201103	PEDAL PLATE	201103 PEDAL PLATE Valid for F1- -Optional- -Vintage version	-	1	Enquire
56	212187	PEDAL PLATE	212187 PEDAL PLATE Not for F1- -Optional- -Vintage version	-	1	Enquire
57	14441324	Countersunk Allen Screw M6 x 16	14441324 Countersunk Allen Screw M6 x 16 (Quantity 4 for F1)- -Optional- -Vintage version	-	2	Enquire
58	14039614	NUT	14039614 NUT M6 (Quantity 4 for F1)- -Optional- -Vintage version	-	2	Enquire
59	212187	PEDAL PLATE	212187 PEDAL PLATE Not for F1- -Optional- -Vintage version	-	1	Enquire
60	14441324	Countersunk Allen Screw M6 x 16	14441324 Countersunk Allen Screw M6 x 16 Not for F1- -Optional- -Vintage version	-	2	Enquire
61	14039614	NUT	14039614 NUT M6 Not for F1- -Optional- -Vintage version	-	2	Enquire
62	205025	ACCELERATOR PEDAL PLATE	205025 ACCELERATOR PEDAL PLATE Optional- -Vintage version	-	1	Enquire
63	14440734	SCREW	14440734 SCREW Optional- -Vintage version	-	3	Enquire
64	14058311	NUT	14058311 NUT Optional- -Vintage version	-	3	Enquire
