ANTIEVAPORATION SYSTEM of Maserati Maserati 4200 Coupe (2005-2007) CC

View All

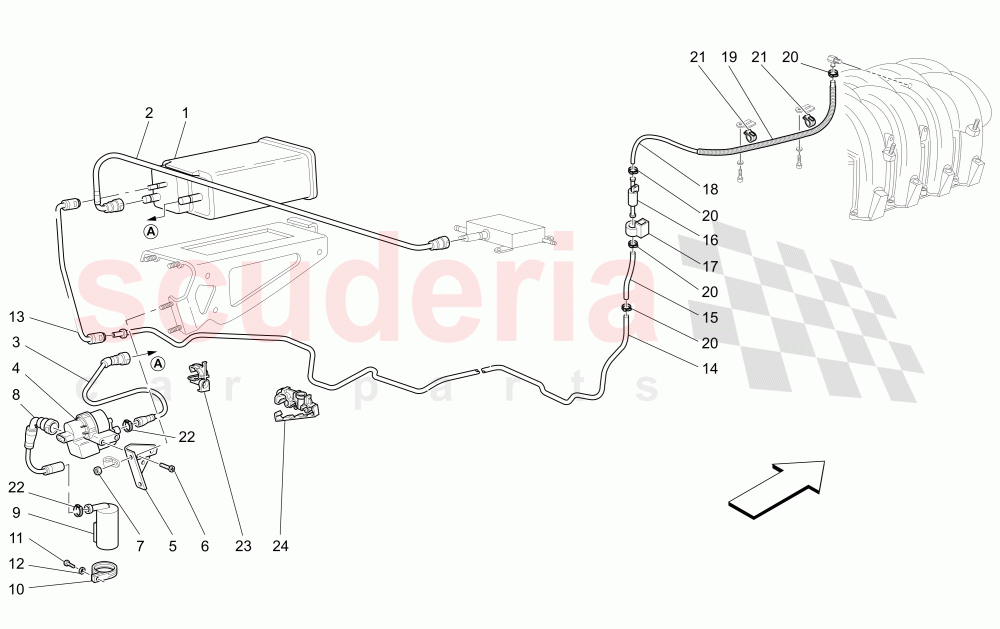

Maserati 4200 Coupe (2005-2007) CC - ANTIEVAPORATION SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	220074	Fuel Vapour Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218587	PIPE FROM DISAREATOR TO FUEL VAPOUR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181714	PIPE FROM FUEL VAPOUR FILTER TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251288	TANK DIAGNOSTIC PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186901	PIPE FROM PUMP TO FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183221	DIAGNOSTICS PUMP FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66244600	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638104	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181712	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190519	COMPLETE UNDERFLOOR TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181703	WASHING VALVE INLET TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180861	WASHER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174623	BUFFER FOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181704	WASHING VALVE OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318720333	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	Screw Collar D15.7mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	220074	Fuel Vapour Filter	220074 Fuel Vapour Filter	-	1	Enquire
2	218587	PIPE FROM DISAREATOR TO FUEL VAPOUR FILTER	218587 PIPE FROM DISAREATOR TO FUEL VAPOUR FILTER	-	1	Enquire
3	181714	PIPE FROM FUEL VAPOUR FILTER TO PUMP	181714 PIPE FROM FUEL VAPOUR FILTER TO PUMP	-	1	Enquire
4	251288	TANK DIAGNOSTIC PUMP	251288 TANK DIAGNOSTIC PUMP	-	1	Enquire
5	182381	DIAGNOSIS PUMP FIXING BRACKET	182381 DIAGNOSIS PUMP FIXING BRACKET	-	1	Enquire
6	15903870	SCREW	15903870 SCREW	-	3	Enquire
7	14039614	NUT	14039614 NUT	-	2	Enquire
8	186901	PIPE FROM PUMP TO FILTER	186901 PIPE FROM PUMP TO FILTER	-	1	Enquire
9	183221	DIAGNOSTICS PUMP FILTER	183221 DIAGNOSTICS PUMP FILTER	-	1	Enquire
10	66244600	BRACKET WITH SHEATH	66244600 BRACKET WITH SHEATH	-	1	Enquire
11	10977624	SCREW	10977624 SCREW	-	1	Enquire
12	12638104	WASHER	12638104 WASHER	-	1	Enquire
13	181712	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	181712 PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	-	1	Enquire
14	190519	COMPLETE UNDERFLOOR TUBE	190519 COMPLETE UNDERFLOOR TUBE	-	1	Enquire
15	181703	WASHING VALVE INLET TUBE	181703 WASHING VALVE INLET TUBE	-	1	Enquire
16	180861	WASHER VALVE	180861 WASHER VALVE	-	1	Enquire
17	174623	BUFFER FOR SUPPORT	174623 BUFFER FOR SUPPORT	-	1	Enquire
18	181704	WASHING VALVE OUTLET PIPE	181704 WASHING VALVE OUTLET PIPE	-	1	Enquire
19	318720333	PIPE	318720333 PIPE Supplied in meters- -(Minimum quantity 1m. or multiples)	-	-	Enquire
20	13432070	Screw Collar D15.7mm	13432070 Screw Collar D15.7mm	-	4	Enquire
21	178430	CLIP	178430 CLIP	-	2	Enquire
22	262109	COLLAR	262109 COLLAR	-	2	Enquire
23	187840	CLIP	187840 CLIP	-	-	Enquire
24	190409	CLIP	190409 CLIP	-	-	Enquire
