Additional Air System

Maserati 4200 Coupe (2005-2007) CC

Find Your Part

Maserati 4200 Coupe (2005-2007) CC - ADDITIONAL AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
330328400 VACUUM TANK Enquire To Order
Photo Part No Description Price (each) Stock
66425700 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14059211 NUTM6 Enquire To Order
Photo Part No Description Price (each) Stock
195065 VALVE AIR DELIVERY TUBE Enquire To Order
195066 VALVE AIR DELIVERY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
171175 Secondary Air Valve Enquire To Order
Photo Part No Description Price (each) Stock
186274 SECONDARY AIR VALVE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
186781 Gasket for Manifold Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
155116 SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
262111 SLEEVE FASTENING COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
147121 L.H. RUBBER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
300100803 RUBBER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
257691 3-WAY UNION Enquire To Order
Photo Part No Description Price (each) Stock
315769 On/Off Solenoid Valve Enquire To Order
Photo Part No Description Price (each) Stock
14304124 SCREW TCEI M5 x 12 Enquire To Order
Photo Part No Description Price (each) Stock
12604178 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
181197 SECONDARY AIR PUMP Enquire To Order
Photo Part No Description Price (each) Stock
184837 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
16296924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
190992 PIPE Enquire To Order
Photo Part No Description Price (each) Stock
262111 SLEEVE FASTENING COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
162606 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
159740 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
388100423 RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
152630 THREADED UNION Enquire To Order
Photo Part No Description Price (each) Stock
150595 NUT Enquire To Order
Photo Part No Description Price (each) Stock
194436 STUD Enquire To Order
Photo Part No Description Price (each) Stock
194437 STUD Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
219456 VIBRATION-DAMPING MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
219457 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
14498801 Washer Enquire To Order
Photo Part No Description Price (each) Stock
313620303 UNION Enquire To Order
View All

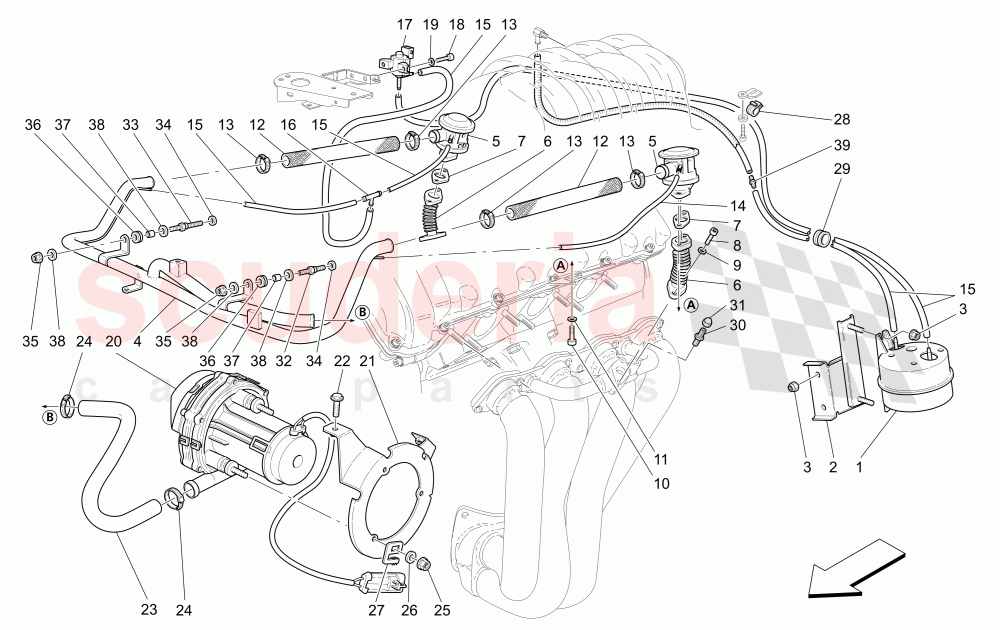

ADDITIONAL AIR SYSTEM of Maserati Maserati 4200 Coupe (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 330328400
VACUUM TANK 		- 1 Enquire
2 66425700
BRACKET 		- 1 Enquire
3 14059211
NUTM6
M6 		- 4 Enquire
4 195065
VALVE AIR DELIVERY TUBE
Valid for RHD 		- 1 Enquire
4 195066
VALVE AIR DELIVERY TUBE
Not for RHD 		- 1 Enquire
5 171175
Secondary Air Valve 		- 2 Enquire
6 186274
SECONDARY AIR VALVE PIPE 		- 2 Enquire
7 186781
Gasket for Manifold
ARRIVING SOON 		- 4 Enquire
8 248334
SCREW M6 X 14MM 		- 4 Enquire
9 127494
WASHER 		- 4 Enquire
10 231617
SCREW M6 X 18 		- 4 Enquire
11 127494
WASHER 		- 4 Enquire
12 155116
SLEEVE 		- 2 Enquire
13 262111
SLEEVE FASTENING COLLAR 		- 4 Enquire
14 147121
L.H. RUBBER HOSE 		- 1 Enquire
15 300100803
RUBBER HOSE
Supplied in meters- -(Minimum quantity 1m. or multiples) 		- - Enquire
16 257691
3-WAY UNION 		- 1 Enquire
17 315769
On/Off Solenoid Valve 		- 1 Enquire
18 14304124
SCREW TCEI M5 x 12 		- 2 Enquire
19 12604178
WASHER
D.5.3-11X0.5 		- 2 Enquire
20 181197
SECONDARY AIR PUMP 		- 1 Enquire
21 184837
BRACKET 		- 1 Enquire
22 16296924
SCREW 		- 2 Enquire
23 190992
PIPE 		- 1 Enquire
24 262111
SLEEVE FASTENING COLLAR 		- 2 Enquire
25 14039614
NUT 		- 3 Enquire
26 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 		- 3 Enquire
27 162606
CLIP 		- 1 Enquire
28 159740
CLIP 		- 1 Enquire
29 388100423
RUBBER 		- 1 Enquire
30 152630
THREADED UNION 		- 2 Enquire
31 150595
NUT 		- 2 Enquire
32 194436
STUD 		- 1 Enquire
33 194437
STUD 		- 1 Enquire
34 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 		- 2 Enquire
35 14039614
NUT 		- 2 Enquire
36 219456
VIBRATION-DAMPING MOUNT
Valid after stock exhaustion of 315520375 		- 2 Enquire
37 219457
SPACER 		- 2 Enquire
38 14498801
Washer 		- 4 Enquire
39 313620303
UNION 		- 1 Enquire
