DIFFERENTIAL BOX AND REAR UNDERBODY

Find Your Part

Maserati 4200 Coupe (2005-2007) CC - DIFFERENTIAL BOX AND REAR UNDERBODY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
192732 COMPLETE DIFFERENTIAL BOX $1,439.32 To Order
Photo Part No Description Price (each) Stock
184767 DIFFERENTIAL COVER $261.73 To Order
Photo Part No Description Price (each) Stock
14468781 O.R. GASKET $59.02 To Order
Photo Part No Description Price (each) Stock
16287321 SCREW $12.61 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13414691 OIL BREAHTER $10.14 To Order
Photo Part No Description Price (each) Stock
186900 VENT ADAPTER $91.71 To Order
Photo Part No Description Price (each) Stock
13415400 COPPER GASKET $1.97 To Order
Photo Part No Description Price (each) Stock
203060 LUBRICATION TUBE $86.59 To Order
185720 LUBRICATION TUBE $159.88 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $1.97 To Order
Photo Part No Description Price (each) Stock
10979424 SCREW $1.97 To Order
Photo Part No Description Price (each) Stock
11194379 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
137192 O.R. GASKET $2.05 To Order
Photo Part No Description Price (each) Stock
149694 FIXING BRACKET $15.77 To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.62 To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED $2.05 To Order
Photo Part No Description Price (each) Stock
16287921 SCREW $4.50 To Order
16287624 SCREW $8.88 To Order
16287524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
190044 STUD $29.73 To Order
Photo Part No Description Price (each) Stock
12601374 WASHERD. 8,40-15X 0,8 $1.62 To Order
Photo Part No Description Price (each) Stock
67390400 REAR UNDER FRAME $2,144.28 To Order
Photo Part No Description Price (each) Stock
186908 FLEXIBLE PAD $921.68 To Order
Photo Part No Description Price (each) Stock
177018 NUT $2.97 To Order
Photo Part No Description Price (each) Stock
66428300 GEAR SUPPORT FLANGE $7.01 To Order
Photo Part No Description Price (each) Stock
14307534 SCREW $10.02 To Order
Photo Part No Description Price (each) Stock
11198374 WASHER $3.11 To Order
Photo Part No Description Price (each) Stock
188971 BRACKET $5.36 To Order
Photo Part No Description Price (each) Stock
81923100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
377030382 WASHER $8.31 To Order
377030380 WASHER $31.42 To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG $1.97 To Order
Photo Part No Description Price (each) Stock
14331574 SCREW $14.09 To Order
Photo Part No Description Price (each) Stock
11198674 WASHER $2.53 To Order
Photo Part No Description Price (each) Stock
10738021 WASHER $5.79 To Order
Photo Part No Description Price (each) Stock
14312174 SCREW $14.09 To Order
Photo Part No Description Price (each) Stock
66490100 WASHER $3.40 To Order
Photo Part No Description Price (each) Stock
67246100 WASHER $9.86 To Order
Photo Part No Description Price (each) Stock
187872 TORSION DAMPER $319.23 To Order
Photo Part No Description Price (each) Stock
81923100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
66303000 GEAR BOX HEAT SHIELD $69.66 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
12624124 WASHER $1.97 To Order
View All

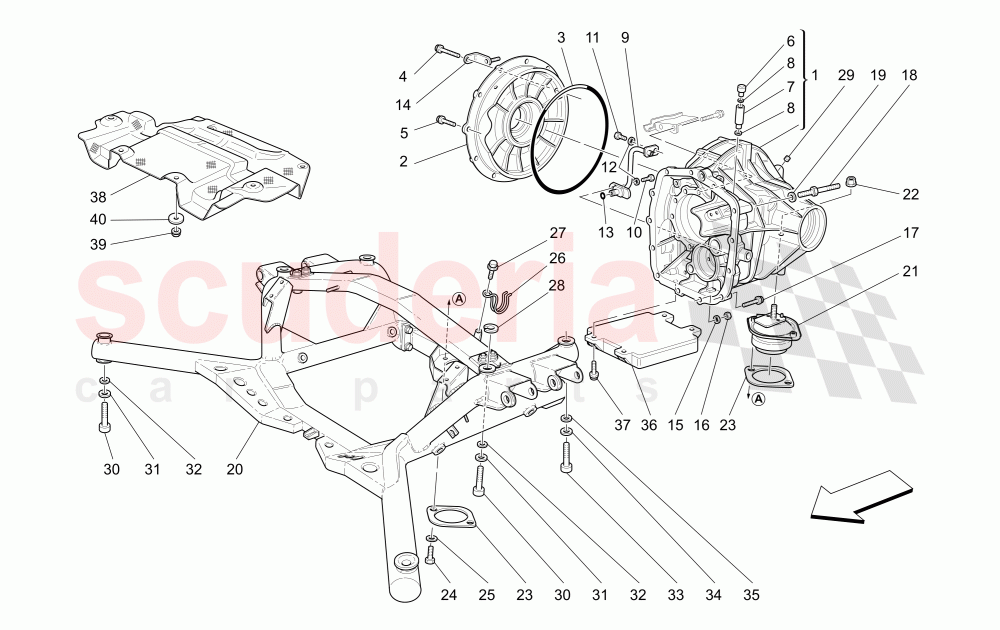

DIFFERENTIAL BOX AND REAR UNDERBODY of Maserati Maserati 4200 Coupe (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 192732
COMPLETE DIFFERENTIAL BOX 		$1,439.32 1
2 184767
DIFFERENTIAL COVER 		$261.73 1
3 14468781
O.R. GASKET 		$59.02 1
4 16287321
SCREW 		$12.61 10
5 13839224
SCREW 		- 1 Enquire
6 13414691
OIL BREAHTER 		$10.14 (25.6% off) 1
7 186900
VENT ADAPTER 		$91.71 1
8 13415400
COPPER GASKET 		$1.97 2
9 203060
LUBRICATION TUBE
Not for F1 		$86.59 1
9 185720
LUBRICATION TUBE
Valid for F1 		$159.88 1
10 10902224
SCREW M6 X 16 		$1.97 1
11 10979424
SCREW
TE M6X10 		$1.97 1
12 11194379
WASHER 		- 2 Enquire
13 137192
O.R. GASKET 		$2.05 1
14 149694
FIXING BRACKET
Valid for F1 		$15.77 2
15 12601374
WASHERD. 8,40-15X 0,8
D. 8,40-15X 0,8 		$1.62 2
16 14040711
NUT M8 FLANGED 		$2.05 2
17 16287921
SCREW
M 8X60- -Not for F1 		$4.50 1
17 16287624
SCREW
M 8X45 		$8.88 1
17 16287524
SCREW
M 8X40 		- 9 Enquire
18 190044
STUD
Valid for F1 		$29.73 1
19 12601374
WASHERD. 8,40-15X 0,8
D. 8,40-15X 0,8 Valid for F1 		$1.62 1
20 67390400
REAR UNDER FRAME 		$2,144.28 1
21 186908
FLEXIBLE PAD 		$921.68 1
22 177018
NUT 		$2.97 1
23 66428300
GEAR SUPPORT FLANGE 		$7.01 2
24 14307534
SCREW 		$10.02 2
25 11198374
WASHER 		$3.11 2
26 188971
BRACKET
Valid for F1 		$5.36 1
27 81923100
SCREW
Valid for F1 		- 1 Enquire
28 377030382
WASHER
Tickness mm. 3 		$8.31 -
28 377030380
WASHER
Tickness mm. 1 		$31.42 -
29 14326101
THREADED PLUG 		$1.97 1
30 14331574
SCREW 		$14.09 (12.2% off) 4
31 11198674
WASHER 		$2.53 4
32 10738021
WASHER 		$5.79 4
33 14312174
SCREW 		$14.09 (12.2% off) 2
34 66490100
WASHER 		$3.40 2
35 67246100
WASHER 		$9.86 2
36 187872
TORSION DAMPER 		$319.23 1
37 81923100
SCREW 		- 4 Enquire
38 66303000
GEAR BOX HEAT SHIELD 		$69.66 1
39 14039614
NUT 		$1.54 4
40 12624124
WASHER 		$1.97 4
