Maserati 4200 Coupe (2005-2007) CC - LUBRICATION SYSTEM: CIRCUIT AND COLLECTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
186356 Water/Oil Exchanger Enquire To Order
Photo Part No Description Price (each) Stock
322664 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
204296 COMPLETE OIL TANK Enquire To Order
211465 COMPLETE OIL TANK Enquire To Order
Photo Part No Description Price (each) Stock
189116 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
192510 DIPSTICK Enquire To Order
Photo Part No Description Price (each) Stock
151684 OIL SUCTION FAN Enquire To Order
Photo Part No Description Price (each) Stock
111352 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
100332 OIL DUCTING FILTER Enquire To Order
Photo Part No Description Price (each) Stock
125521 O-RING D78.97-8X100 Enquire To Order
Photo Part No Description Price (each) Stock
11500524 STUD Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
675000691 GASKET Enquire To Order
675000691 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
293107 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
186746 THREADED UNION Enquire To Order
Photo Part No Description Price (each) Stock
898271 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
14496524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
107980 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
184519 PAD Enquire To Order
Photo Part No Description Price (each) Stock
107979 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16104411 NUT Enquire To Order
Photo Part No Description Price (each) Stock
194456 PIPE FROM TANK TO OIL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
109649 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
14303834 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
186060 PIPE FROM HEAT EXCHANGER TO OIL TANK Enquire To Order
Photo Part No Description Price (each) Stock
170157 UNION Enquire To Order
Photo Part No Description Price (each) Stock
184821 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10441890 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
187713 RETAINING CLIP Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
191396 Bracket Enquire To Order
Photo Part No Description Price (each) Stock
149707 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
177576 INTERMEDIATE RING Enquire To Order
Photo Part No Description Price (each) Stock
12643724 Washer 6.15-18x1.5 Enquire To Order
Photo Part No Description Price (each) Stock
192326 COMPLETE VENT PIPE Enquire To Order
Photo Part No Description Price (each) Stock
10440890 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14305024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
192327 Union Enquire To Order
Photo Part No Description Price (each) Stock
10284460 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
231621 Allen Screw M6 x 30 Enquire To Order
Photo Part No Description Price (each) Stock
186196 SCREW Enquire To Order
231619 SCREW M6 X 22MM Enquire To Order
Photo Part No Description Price (each) Stock
231622 SCREWM6X35 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
247146 GASKET Enquire To Order
View All

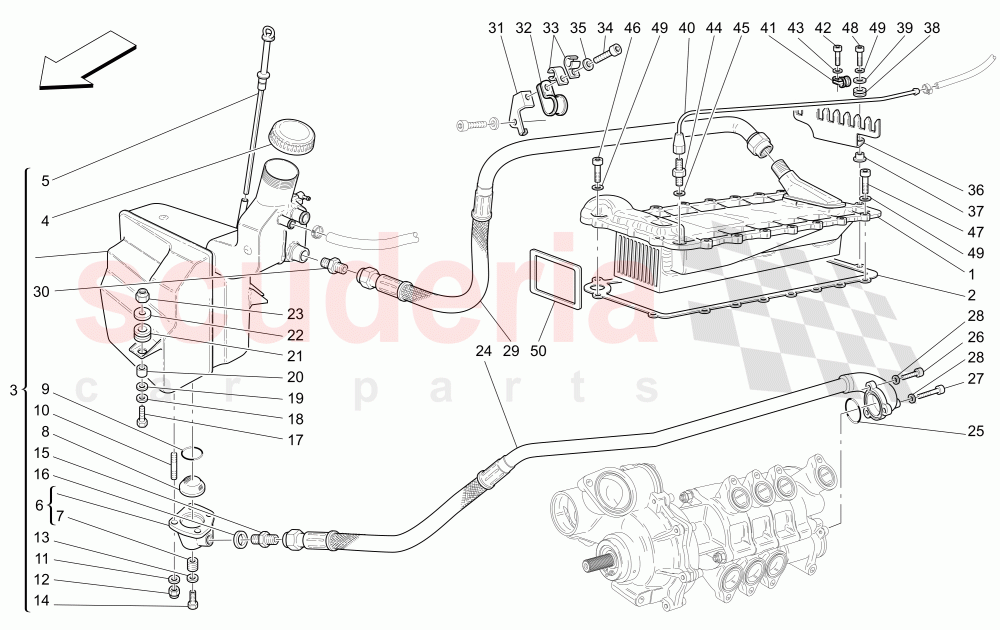

LUBRICATION SYSTEM: CIRCUIT AND COLLECTION of Maserati Maserati 4200 Coupe (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 186356
Water/Oil Exchanger 		- 1 Enquire
2 322664
GASKET
Supplied also in the crankcase gasket revision kit (cod. 980020004) 		- 1 Enquire
3 204296
COMPLETE OIL TANK
Valid for USA and CDN 		- 1 Enquire
3 211465
COMPLETE OIL TANK
Not for USA and CDN 		- 1 Enquire
4 189116
PLUG 		- 1 Enquire
5 192510
DIPSTICK 		- 1 Enquire
6 151684
OIL SUCTION FAN 		- 1 Enquire
7 111352
THREADED INSERT 		- 1 Enquire
8 100332
OIL DUCTING FILTER 		- 1 Enquire
9 125521
O-RING D78.97-8X100 		- 1 Enquire
10 11500524
STUD 		- 4 Enquire
11 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 		- 4 Enquire
12 14039614
NUT 		- 4 Enquire
13 675000691
GASKET 		- 1 Enquire
13 675000691
GASKET 		- 1 Enquire
14 293107
THREADED PLUG 		- 1 Enquire
15 186746
THREADED UNION 		- 1 Enquire
16 898271
GASKET 		- 1 Enquire
17 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 		- 3 Enquire
18 14496524
WASHER
D. 8.40-17 X1.6 		- 3 Enquire
19 127496
WASHER 		- 3 Enquire
20 107980
SPACER 		- 3 Enquire
21 184519
PAD 		- 3 Enquire
22 107979
WASHER 		- 3 Enquire
23 16104411
NUT 		- 2 Enquire
24 194456
PIPE FROM TANK TO OIL PUMP 		- 1 Enquire
25 109649
GASKET 		- 1 Enquire
26 231617
SCREW M6 X 18 		- 2 Enquire
27 14303834
SCREW 		- 1 Enquire
28 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 		- 3 Enquire
29 186060
PIPE FROM HEAT EXCHANGER TO OIL TANK 		- 1 Enquire
30 170157
UNION 		- 1 Enquire
31 184821
BRACKET 		- 1 Enquire
32 10441890
BRACKET WITH SHEATH 		- 1 Enquire
33 187713
RETAINING CLIP 		- 2 Enquire
34 248334
SCREW M6 X 14MM 		- 1 Enquire
35 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 		- 1 Enquire
36 191396
Bracket 		- 1 Enquire
37 149707
SPACER 		- 2 Enquire
38 177576
INTERMEDIATE RING 		- 2 Enquire
39 12643724
Washer 6.15-18x1.5
D 6,15-18X 1,5 		- 2 Enquire
40 192326
COMPLETE VENT PIPE 		- 1 Enquire
41 10440890
BRACKET WITH SHEATH 		- 1 Enquire
42 14305024
SCREW 		- 1 Enquire
43 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 		- 1 Enquire
44 192327
Union 		- 1 Enquire
45 10284460
GASKET 		- 1 Enquire
46 231621
Allen Screw M6 x 30
M 6X30 		- 2 Enquire
47 186196
SCREW
M 6X25 		- 2 Enquire
47 231619
SCREW M6 X 22MM
M 6X22 		- 13 Enquire
48 231622
SCREWM6X35
M 6X35 		- 2 Enquire
49 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 		- 19 Enquire
50 247146
GASKET
Supplied also in the crankcase gasket revision kit (cod. 980020004) 		- 1 Enquire
