Name: DIFFERENTIAL AND REAR AXLE SHAFTS
Rating: 4.8 (1 reviews)

DIFFERENTIAL AND REAR AXLE SHAFTS of Maserati Maserati 4200 Coupe (2005-2007) CC

View All

Maserati 4200 Coupe (2005-2007) CC - DIFFERENTIAL AND REAR AXLE SHAFTS

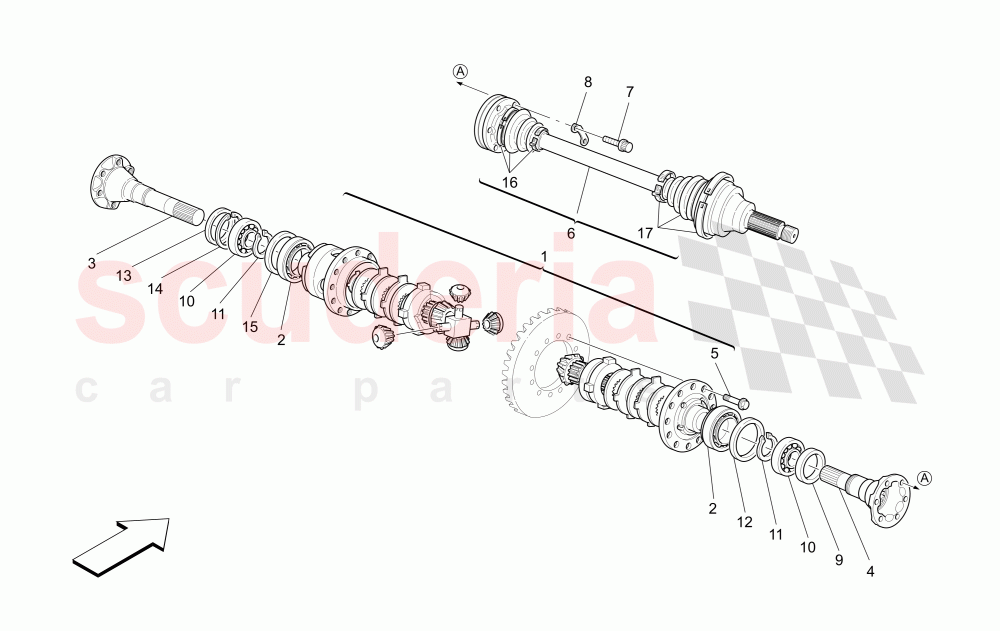

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	192735	COMPLETE SELF	$3,609.87	To Order

Photo	Part No	Description	Price (each)	Stock
	184998	ROLLER BEARING	$126.34	To Order

Photo	Part No	Description	Price (each)	Stock
	199055	DIFFERENTIAL AXLE SHAFT	$1,116.06	To Order

Photo	Part No	Description	Price (each)	Stock
	199056	DIFFERENTIAL AXLE SHAFT	$1,110.28	To Order

Photo	Part No	Description	Price (each)	Stock
	183909	SCREW	$20.36	To Order

Photo	Part No	Description	Price (each)	Stock
	218163	AXLE SHAFT ASSEMBLY	$1,083.00	To Order

Photo	Part No	Description	Price (each)	Stock
	223916	SCREW	$4.75	To Order

Photo	Part No	Description	Price (each)	Stock
	222679	PLATE	$4.55	To Order

Photo	Part No	Description	Price (each)	Stock
	181618	RH Seal Ring	$75.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	184995	BEARING Dia. 50X80X16	$82.17	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	CIRCLIP	$6.68	To Order

Photo	Part No	Description	Price (each)	Stock
	185028	SPACER RING	$110.27	To Order
	185027	SPACER RING	$110.27	To Order
	185026	SPACER RING	$101.30	To Order

Photo	Part No	Description	Price (each)	Stock
	185722	LH OIL SEAL	$66.03	To Order

Photo	Part No	Description	Price (each)	Stock
	185723	CIRCLIP (SEEGER-RING)	$7.69	To Order

Photo	Part No	Description	Price (each)	Stock
	185034	SPACER RING	$88.21	To Order
	185033	SPACER RING	$88.21	To Order
	185029	SPACER RING	$93.76	To Order

Photo	Part No	Description	Price (each)	Stock
	70006022	CLAMP AND PROTECTION REPLACEMENT SET	$107.72	To Order

Photo	Part No	Description	Price (each)	Stock
	70006021	CLAMP AND PROTECTION REPLACEMENT SET	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	192735	COMPLETE SELF	192735 COMPLETE SELF	$3,609.87	1
2	184998	ROLLER BEARING	184998 ROLLER BEARING	$126.34 MSRP: ~~258.74~~ (51.2% off)	2
3	199055	DIFFERENTIAL AXLE SHAFT	199055 DIFFERENTIAL AXLE SHAFT R.h. side - Short	$1,116.06	1
4	199056	DIFFERENTIAL AXLE SHAFT	199056 DIFFERENTIAL AXLE SHAFT R.h. side - Long	$1,110.28	1
5	183909	SCREW	183909 SCREW	$20.36	12
6	218163	AXLE SHAFT ASSEMBLY	218163 AXLE SHAFT ASSEMBLY	$1,083.00	2
7	223916	SCREW	223916 SCREW	$4.75	12
8	222679	PLATE	222679 PLATE Valid after stock exhaustion of 149415	$4.55	6

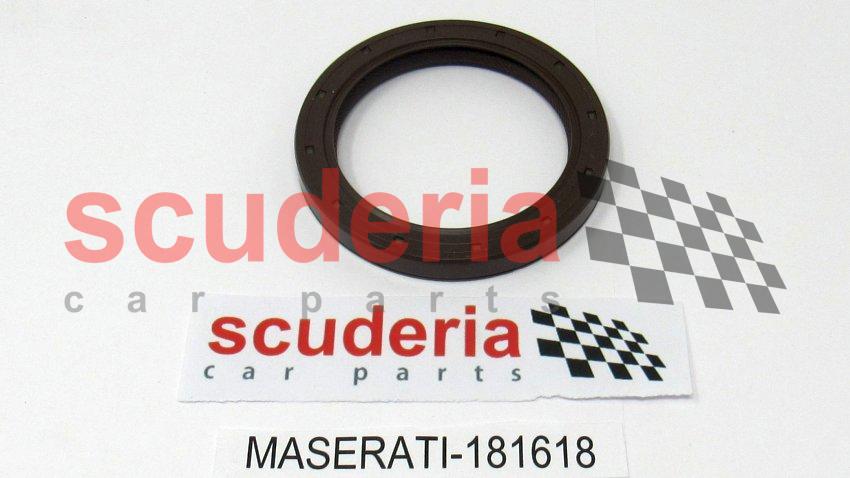

9	181618	RH Seal Ring IN STOCK	181618 RH Seal Ring IN STOCK	$75.12	1
10	184995	BEARING Dia. 50X80X16	184995 BEARING Dia. 50X80X16	$82.17	2
11	184994	CIRCLIP	184994 CIRCLIP	$6.68	2
12	185028	SPACER RING	185028 SPACER RING Thickness mm.	$110.27	1
12	185027	SPACER RING	185027 SPACER RING Thickness mm. 6,4	$110.27	1
12	185026	SPACER RING	185026 SPACER RING Thickness mm. 6,8	$101.30	1
13	185722	LH OIL SEAL	185722 LH OIL SEAL	$66.03	1
14	185723	CIRCLIP (SEEGER-RING)	185723 CIRCLIP (SEEGER-RING)	$7.69	1
15	185034	SPACER RING	185034 SPACER RING Thickness mm. 2,60	$88.21	1
15	185033	SPACER RING	185033 SPACER RING Thickness mm. 2,95	$88.21	1
15	185029	SPACER RING	185029 SPACER RING Thickness mm. 3,30	$93.76	1
16	70006022	CLAMP AND PROTECTION REPLACEMENT SET	70006022 CLAMP AND PROTECTION REPLACEMENT SET Differential side	$107.72	2
17	70006021	CLAMP AND PROTECTION REPLACEMENT SET	70006021 CLAMP AND PROTECTION REPLACEMENT SET Wheel side	-	2	Enquire

Differential And Rear Axle Shafts

Maserati 4200 Coupe (2005-2007) CC

Maserati 4200 Coupe (2005-2007) CC - DIFFERENTIAL AND REAR AXLE SHAFTS
