FRONT SUSPENSION of Maserati Maserati 4200 Coupe (2002-2004) GT

View All

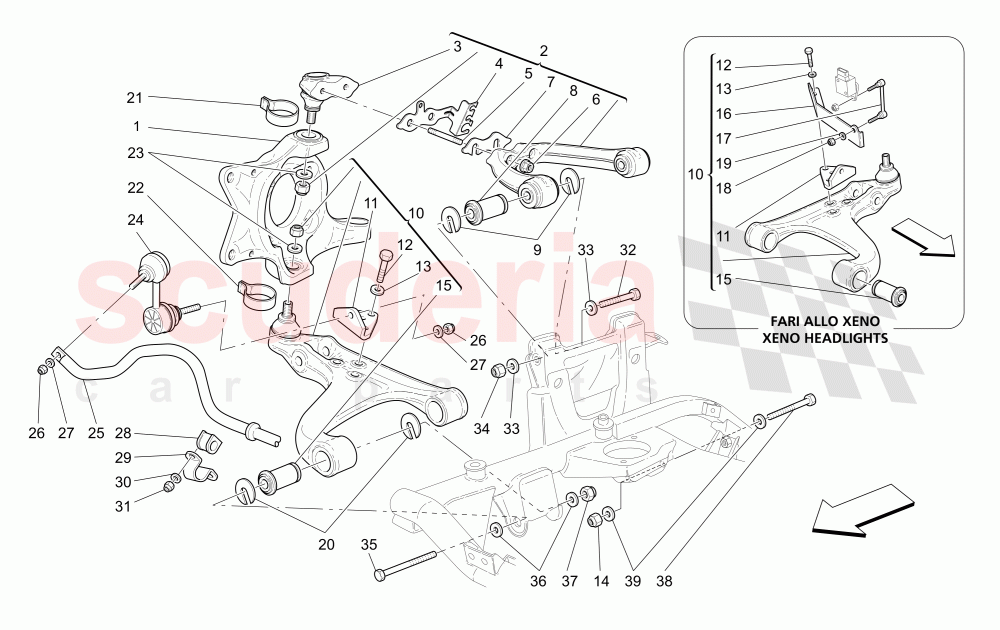

Maserati 4200 Coupe (2002-2004) GT - FRONT SUSPENSION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	197764	L.H. FRONT HUB HOLDER	Enquire	To Order
	197754	R.H. FRONT HUB HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194367	COMPLETE L.H.UPPER LEVER	Enquire	To Order
	194368	COMPLETE R.H.UPPER LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600129	BALL JOINT FOR UPPER LEVER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	190691	R.H.CABLES SUPPORTING BRACKET	Enquire	To Order
	190692	L.H.CABLES SUPPORTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600405	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058521	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600413	ADJUSTMENT TICKNESS	Enquire	To Order
	386600411	ADJUSTMENT TICKNESS	Enquire	To Order
	386600412	ADJUSTMENT TICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186493	RH FLANBLOC 12-30X47	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600427	WASHER	Enquire	To Order
	386600429	WASHER	Enquire	To Order
	386600426	WASHER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	201781	COMPLETE L.H. LOWER LEVER	Enquire	To Order
	201784	COMPLETE R.H. LOWER LEVER	Enquire	To Order
	201786	COMPLETE L.H. LOWER LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186347	TORSION BAR TIE ROD SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600441	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186494	RH SILENT BLOCK BUSH 14-34X61	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190045	BRACKET FOR FRONT POTENTIOMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188629	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498805	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	377030380	WASHER	Enquire	To Order
	377030382	WASHER	Enquire	To Order
	377030379	WASHER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	386600416	Joint Protection	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	160019	JOINT LOWER PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600403	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185916	L.H. TIE ROD FOR TORSION BAR	Enquire	To Order
	185914	RH Tie Rod For Torsion Bar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195320	STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128944	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195913	BAR BUFFER D.31 X 43	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239775	PAD FASTENING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15541521	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647678	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15503811	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196071	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496825	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15503915	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189137	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13579861	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	197764	L.H. FRONT HUB HOLDER	197764 L.H. FRONT HUB HOLDER	-	1	Enquire
1	197754	R.H. FRONT HUB HOLDER	197754 R.H. FRONT HUB HOLDER	-	1	Enquire
2	194367	COMPLETE L.H.UPPER LEVER	194367 COMPLETE L.H.UPPER LEVER	-	1	Enquire
2	194368	COMPLETE R.H.UPPER LEVER	194368 COMPLETE R.H.UPPER LEVER	-	1	Enquire
3	386600129	BALL JOINT FOR UPPER LEVER ARRIVING SOON	386600129 BALL JOINT FOR UPPER LEVER ARRIVING SOON	-	2	Enquire
4	190691	R.H.CABLES SUPPORTING BRACKET	190691 R.H.CABLES SUPPORTING BRACKET	-	1	Enquire
4	190692	L.H.CABLES SUPPORTING BRACKET	190692 L.H.CABLES SUPPORTING BRACKET	-	1	Enquire
5	386600405	STUD	386600405 STUD	-	4	Enquire
6	14058521	NUT	14058521 NUT	-	4	Enquire
7	386600413	ADJUSTMENT TICKNESS	386600413 ADJUSTMENT TICKNESS MM. 2,5	-	-	Enquire
7	386600411	ADJUSTMENT TICKNESS	386600411 ADJUSTMENT TICKNESS MM. 0,5	-	-	Enquire
7	386600412	ADJUSTMENT TICKNESS	386600412 ADJUSTMENT TICKNESS MM. 1	-	-	Enquire
8	186493	RH FLANBLOC 12-30X47	186493 RH FLANBLOC 12-30X47	-	4	Enquire
9	386600427	WASHER	386600427 WASHER Tickness mm. 1	-	-	Enquire
9	386600429	WASHER	386600429 WASHER Tickness mm. 3	-	-	Enquire
9	386600426	WASHER	386600426 WASHER Thickness mm. 0,75	-	-	Enquire
9	386600428	WASHER	386600428 WASHER Thickness mm. 1,75	-	-	Enquire
9	386600425	WASHER	386600425 WASHER Tickness mm. 0,5	-	-	Enquire
10	201781	COMPLETE L.H. LOWER LEVER	201781 COMPLETE L.H. LOWER LEVER Optional- -Xeno headlights- -Not for USA and CDN	-	1	Enquire
10	201784	COMPLETE R.H. LOWER LEVER	201784 COMPLETE R.H. LOWER LEVER	-	1	Enquire
10	201786	COMPLETE L.H. LOWER LEVER	201786 COMPLETE L.H. LOWER LEVER Standard	-	1	Enquire
11	186347	TORSION BAR TIE ROD SUPPORT	186347 TORSION BAR TIE ROD SUPPORT	-	2	Enquire
12	16043634	SCREW	16043634 SCREW	-	6	Enquire
13	14496524	WASHER	14496524 WASHER D. 8.40-17 X1.6	-	6	Enquire
14	386600441	NUT	386600441 NUT	-	2	Enquire
15	186494	RH SILENT BLOCK BUSH 14-34X61	186494 RH SILENT BLOCK BUSH 14-34X61	-	4	Enquire
16	190045	BRACKET FOR FRONT POTENTIOMETER	190045 BRACKET FOR FRONT POTENTIOMETER Valid for opt. Xeno headlights- -Not for USA and CDN	-	1	Enquire
17	188629	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	188629 TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER Valid for opt. Xeno headlights- -Not for USA and CDN	-	1	Enquire
18	14039614	NUT	14039614 NUT Valid for opt. Xeno headlights- -Not for USA and CDN	-	1	Enquire
19	14498805	WASHER	14498805 WASHER Valid for opt. Xeno headlights- -Not for USA and CDN	-	1	Enquire
20	377030380	WASHER	377030380 WASHER Tickness mm. 1	-	-	Enquire
20	377030382	WASHER	377030382 WASHER Tickness mm. 3	-	-	Enquire
20	377030379	WASHER	377030379 WASHER Thickness mm. 0,75	-	-	Enquire
20	377030381	WASHER	377030381 WASHER Thickness mm. 1,75	-	-	Enquire
20	377030378	WASHER	377030378 WASHER Tickness mm. 0,5	-	-	Enquire
21	386600416	Joint Protection ARRIVING SOON	386600416 Joint Protection ARRIVING SOON	-	2	Enquire
22	160019	JOINT LOWER PROTECTION	160019 JOINT LOWER PROTECTION	-	2	Enquire
23	386600403	WASHER	386600403 WASHER	-	4	Enquire
24	185916	L.H. TIE ROD FOR TORSION BAR	185916 L.H. TIE ROD FOR TORSION BAR	-	1	Enquire
24	185914	RH Tie Rod For Torsion Bar	185914 RH Tie Rod For Torsion Bar	-	1	Enquire
25	195320	STABILIZER BAR	195320 STABILIZER BAR	-	1	Enquire
26	12574521	NUT	12574521 NUT	-	4	Enquire
27	128944	WASHER	128944 WASHER	-	4	Enquire
28	195913	BAR BUFFER D.31 X 43	195913 BAR BUFFER D.31 X 43	-	2	Enquire
29	239775	PAD FASTENING PLATE	239775 PAD FASTENING PLATE	-	2	Enquire
30	14496524	WASHER	14496524 WASHER D. 8.40-17 X1.6	-	4	Enquire
31	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	4	Enquire
32	15541521	SCREW	15541521 SCREW	-	4	Enquire
33	12647678	WASHER	12647678 WASHER	-	8	Enquire
34	15503811	NUT	15503811 NUT	-	4	Enquire
35	196071	SCREW	196071 SCREW	-	2	Enquire
36	14496825	WASHER	14496825 WASHER	-	4	Enquire
37	15503915	NUT	15503915 NUT	-	2	Enquire
38	189137	SCREW	189137 SCREW	-	2	Enquire
39	13579861	WASHER	13579861 WASHER	-	4	Enquire
