COOLING SYSTEM: NOURICE AND LINES

Find Your Part

Maserati 4200 Coupe (2002-2004) GT - COOLING SYSTEM: NOURICE AND LINES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
192411 EXPANSION TANK ASSEMBLY $91.33 To Order
Photo Part No Description Price (each) Stock
192412 TANK PLUG $10.86 To Order
Photo Part No Description Price (each) Stock
192933 NOURICE SUPPORTING BRACKET $58.05 To Order
Photo Part No Description Price (each) Stock
192936 NOURICE UPPER SUPPORT $11.98 To Order
Photo Part No Description Price (each) Stock
192935 NOURICE LOWER SUPPORT $19.62 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
192953 STUD $14.93 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $1.27 To Order
Photo Part No Description Price (each) Stock
11730624 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
137873 O-Ring $11.26 To Order
Photo Part No Description Price (each) Stock
189345 3-WAY UNION $25.21 To Order
201215 3-WAY UNION $189.67 To Order
Photo Part No Description Price (each) Stock
192613 RUBBER HOSE $11.51 To Order
Photo Part No Description Price (each) Stock
192614 RUBBER HOSE $296.08 To Order
Photo Part No Description Price (each) Stock
192615 RUBBER HOSE $18.17 To Order
201216 RUBBER HOSE $21.11 To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
183919 COLLAR $44.67 To Order
Photo Part No Description Price (each) Stock
13432070 Screw Collar D15.7mm $1.32 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $1.97 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
230890 THERMOSTAT WITH PRESSURE GUAGE $142.42 To Order
Photo Part No Description Price (each) Stock
14305324 Allen Screw 6 x 20 $2.05 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
180137 WATER TEMPERATURE SENSOR $50.23 To Order
Photo Part No Description Price (each) Stock
10298460 Gasket $1.27 To Order
Photo Part No Description Price (each) Stock
154191 GASKET $4.38 To Order
Photo Part No Description Price (each) Stock
190354 HOSE ENGINE TO RADIATOR $259.52 To Order
Photo Part No Description Price (each) Stock
181748 PIPE RADIATOR TO ENGINE $54.61 To Order
Photo Part No Description Price (each) Stock
13000790 Screw Collar $2.05 To Order
Photo Part No Description Price (each) Stock
192400 SLEEVE $83.27 To Order
Photo Part No Description Price (each) Stock
107394 3-WAY UNION $121.75 To Order
Photo Part No Description Price (each) Stock
65992600 RUBBER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
192401 RUBBER HOSE $86.59 To Order
Photo Part No Description Price (each) Stock
13126370 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
262111 SLEEVE FASTENING COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
183115 WATER OUTLET PIPE $53.84 To Order
Photo Part No Description Price (each) Stock
185578 RUBBER HOSE $23.67 To Order
Photo Part No Description Price (each) Stock
185579 RUBBER HOSE $22.40 To Order
Photo Part No Description Price (each) Stock
262109 COLLAR $2.69 To Order
Photo Part No Description Price (each) Stock
190279 SLEEVE $37.09 To Order
Photo Part No Description Price (each) Stock
66722300 COMPLETE RIGID PIPE TO HEATER $254.91 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.54 To Order
Photo Part No Description Price (each) Stock
385500371 GASKET $1.97 To Order
Photo Part No Description Price (each) Stock
13000490 SCREW COLLAR $1.97 To Order
Photo Part No Description Price (each) Stock
13126370 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
188067 WATER INTAKE COVER $356.88 To Order
Photo Part No Description Price (each) Stock
111628 THREADED UNION $0.65 To Order
Photo Part No Description Price (each) Stock
156828 SCREW M 6X50  $2.83 To Order
Photo Part No Description Price (each) Stock
231619 SCREW M6 X 22MM $2.92 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
View All

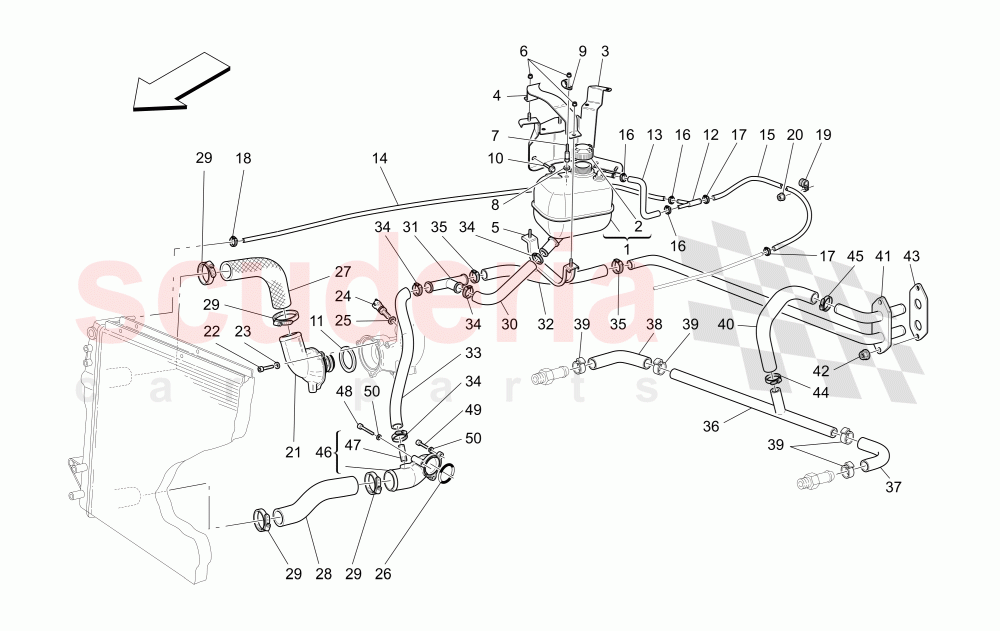

COOLING SYSTEM: NOURICE AND LINES of Maserati Maserati 4200 Coupe (2002-2004) GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 192411
EXPANSION TANK ASSEMBLY 		$91.33 1
2 192412
TANK PLUG 		$10.86 1
3 192933
NOURICE SUPPORTING BRACKET 		$58.05 1
4 192936
NOURICE UPPER SUPPORT 		$11.98 1
5 192935
NOURICE LOWER SUPPORT 		$19.62 1
6 14039614
NUT
M6 		$1.54 4
7 192953
STUD 		$14.93 1
8 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 		$2.41 1
9 10441590
BRACKET WITH SHEATH 		$1.27 1
10 11730624
SCREW 		$2.83 2
11 137873
O-Ring 		$11.26 1
12 189345
3-WAY UNION
Valid till engine Nr. 79340 		$25.21 1
12 201215
3-WAY UNION
Valid from engine Nr. 79341 		$189.67 1
13 192613
RUBBER HOSE 		$11.51 1
14 192614
RUBBER HOSE 		$296.08 1
15 192615
RUBBER HOSE
Valid till engine Nr. 79340 		$18.17 1
15 201216
RUBBER HOSE
Valid from engine Nr. 79341 		$21.11 1
16 13126970
COLLAR 		- 3 Enquire
17 183919
COLLAR 		$44.67 2
18 13432070
Screw Collar D15.7mm 		$1.32 1
19 10441390
BRACKET WITH SHEATH 		$1.97 1
20 14039614
NUT
M6 		$1.54 1
21 230890
THERMOSTAT WITH PRESSURE GUAGE 		$142.42 (4.4% off) 1
22 14305324
Allen Screw 6 x 20 		$2.05 3
23 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 		$2.41 3
24 180137
WATER TEMPERATURE SENSOR 		$50.23 1
25 10298460
Gasket 		$1.27 1
26 154191
GASKET 		$4.38 1
27 190354
HOSE ENGINE TO RADIATOR 		$259.52 1
28 181748
PIPE RADIATOR TO ENGINE 		$54.61 1
29 13000790
Screw Collar 		$2.05 4
30 192400
SLEEVE 		$83.27 1
31 107394
3-WAY UNION 		$121.75 1
32 65992600
RUBBER HOSE 		- 1 Enquire
33 192401
RUBBER HOSE 		$86.59 1
34 13126370
CLAMP 		- 4 Enquire
35 262111
SLEEVE FASTENING COLLAR 		- 2 Enquire
36 183115
WATER OUTLET PIPE 		$53.84 1
37 185578
RUBBER HOSE 		$23.67 1
38 185579
RUBBER HOSE 		$22.40 (6.9% off) 1
39 262109
COLLAR 		$2.69 4
40 190279
SLEEVE 		$37.09 1
41 66722300
COMPLETE RIGID PIPE TO HEATER 		$254.91 1
42 14039614
NUT 		$1.54 2
43 385500371
GASKET 		$1.97 1
44 13000490
SCREW COLLAR 		$1.97 1
45 13126370
CLAMP 		- 1 Enquire
46 188067
WATER INTAKE COVER 		$356.88 1
47 111628
THREADED UNION 		$0.65 (97.9% off) 1
48 156828
SCREW M 6X50  		$2.83 2
49 231619
SCREW M6 X 22MM 		$2.92 1
50 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 		$2.41 3
