ANTIEVAPORATION SYSTEM of Maserati Maserati 4200 Coupe (2002-2004) GT

View All

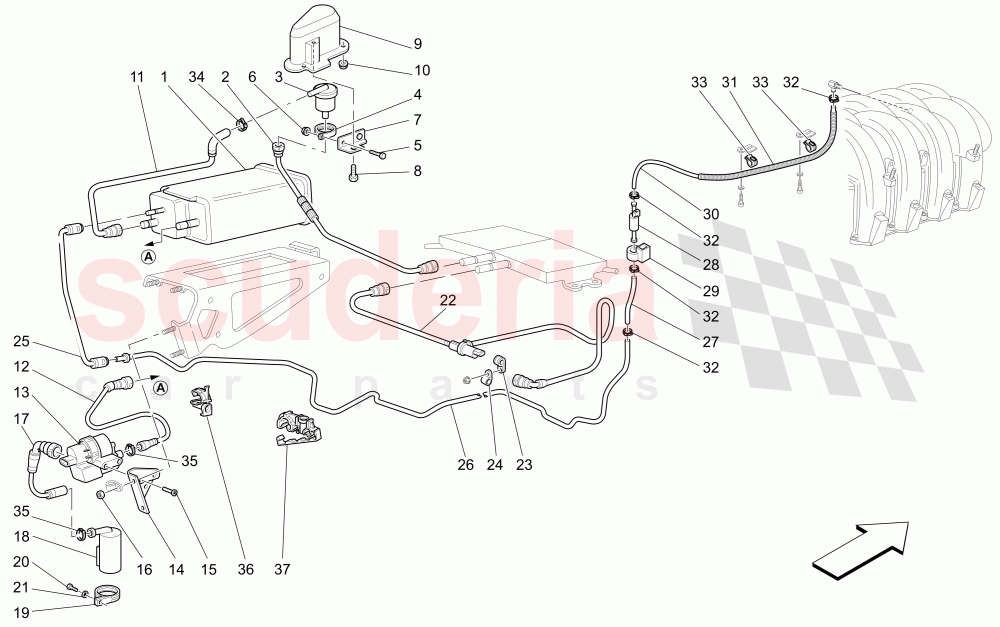

Maserati 4200 Coupe (2002-2004) GT - ANTIEVAPORATION SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	220074	Fuel Vapour Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181705	PIPE FROM DISAREATOR TO ROLL-OVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180573	ROLL-OVER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66133600	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	Bolt M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66132900	ROLL-OVER VALVE FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10979414	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66294500	ROLL-OVER VALVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181707	PIPE FROM ROLL-OVER TO FUEL VAPOUR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181714	PIPE FROM FUEL VAPOUR FILTER TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251288	TANK DIAGNOSTIC PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182381	DIAGNOSIS PUMP FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15903870	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186901	PIPE FROM PUMP TO FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183221	DIAGNOSTICS PUMP FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66244600	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638104	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182585	PIERBURG VALVE COMPLETE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10440790	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181712	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190519	COMPLETE UNDERFLOOR TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181703	WASHING VALVE INLET TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180861	WASHER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174623	BUFFER FOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181704	WASHING VALVE OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318720333	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	Screw Collar D15.7mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13433370	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187840	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190409	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	220074	Fuel Vapour Filter	220074 Fuel Vapour Filter	-	1	Enquire
2	181705	PIPE FROM DISAREATOR TO ROLL-OVER	181705 PIPE FROM DISAREATOR TO ROLL-OVER	-	1	Enquire
3	180573	ROLL-OVER VALVE	180573 ROLL-OVER VALVE	-	1	Enquire
4	66133600	BRACKET WITH SHEATH	66133600 BRACKET WITH SHEATH	-	1	Enquire
5	10902424	Bolt M6 x 20	10902424 Bolt M6 x 20	-	1	Enquire
6	14054577	NUT	14054577 NUT M6	-	1	Enquire
7	66132900	ROLL-OVER VALVE FIXING BRACKET	66132900 ROLL-OVER VALVE FIXING BRACKET	-	1	Enquire
8	10979414	SCREW	10979414 SCREW	-	1	Enquire
9	66294500	ROLL-OVER VALVE COVER	66294500 ROLL-OVER VALVE COVER	-	1	Enquire
10	14054577	NUT	14054577 NUT M6	-	3	Enquire
11	181707	PIPE FROM ROLL-OVER TO FUEL VAPOUR FILTER	181707 PIPE FROM ROLL-OVER TO FUEL VAPOUR FILTER	-	1	Enquire
12	181714	PIPE FROM FUEL VAPOUR FILTER TO PUMP	181714 PIPE FROM FUEL VAPOUR FILTER TO PUMP	-	1	Enquire
13	251288	TANK DIAGNOSTIC PUMP	251288 TANK DIAGNOSTIC PUMP	-	1	Enquire
14	182381	DIAGNOSIS PUMP FIXING BRACKET	182381 DIAGNOSIS PUMP FIXING BRACKET	-	1	Enquire
15	15903870	SCREW	15903870 SCREW	-	3	Enquire
16	14039614	NUT	14039614 NUT	-	2	Enquire
17	186901	PIPE FROM PUMP TO FILTER	186901 PIPE FROM PUMP TO FILTER	-	1	Enquire
18	183221	DIAGNOSTICS PUMP FILTER	183221 DIAGNOSTICS PUMP FILTER	-	1	Enquire
19	66244600	BRACKET WITH SHEATH	66244600 BRACKET WITH SHEATH	-	1	Enquire
20	10977624	SCREW	10977624 SCREW	-	1	Enquire
21	12638104	WASHER	12638104 WASHER	-	1	Enquire
22	182585	PIERBURG VALVE COMPLETE TUBE	182585 PIERBURG VALVE COMPLETE TUBE	-	1	Enquire
23	291225	BRACKET WITH SHEATH	291225 BRACKET WITH SHEATH	-	1	Enquire
24	10440790	BRACKET WITH SHEATH	10440790 BRACKET WITH SHEATH	-	1	Enquire
25	181712	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	181712 PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	-	1	Enquire
26	190519	COMPLETE UNDERFLOOR TUBE	190519 COMPLETE UNDERFLOOR TUBE	-	1	Enquire
27	181703	WASHING VALVE INLET TUBE	181703 WASHING VALVE INLET TUBE	-	1	Enquire
28	180861	WASHER VALVE	180861 WASHER VALVE	-	1	Enquire
29	174623	BUFFER FOR SUPPORT	174623 BUFFER FOR SUPPORT	-	1	Enquire
30	181704	WASHING VALVE OUTLET PIPE	181704 WASHING VALVE OUTLET PIPE	-	1	Enquire
31	318720333	PIPE	318720333 PIPE Supplied in meters- -(Minimum quantity 1m. or multiples)	-	-	Enquire
32	13432070	Screw Collar D15.7mm	13432070 Screw Collar D15.7mm	-	4	Enquire
33	178430	CLIP	178430 CLIP	-	2	Enquire
34	13433370	COLLAR	13433370 COLLAR	-	1	Enquire
35	262109	COLLAR	262109 COLLAR	-	2	Enquire
36	187840	CLIP	187840 CLIP	-	-	Enquire
37	190409	CLIP	190409 CLIP	-	-	Enquire
