COMPLETE PEDAL BOARD UNIT of Maserati Maserati 4200 Coupe (2002-2004) GT

View All

Maserati 4200 Coupe (2002-2004) GT - COMPLETE PEDAL BOARD UNIT

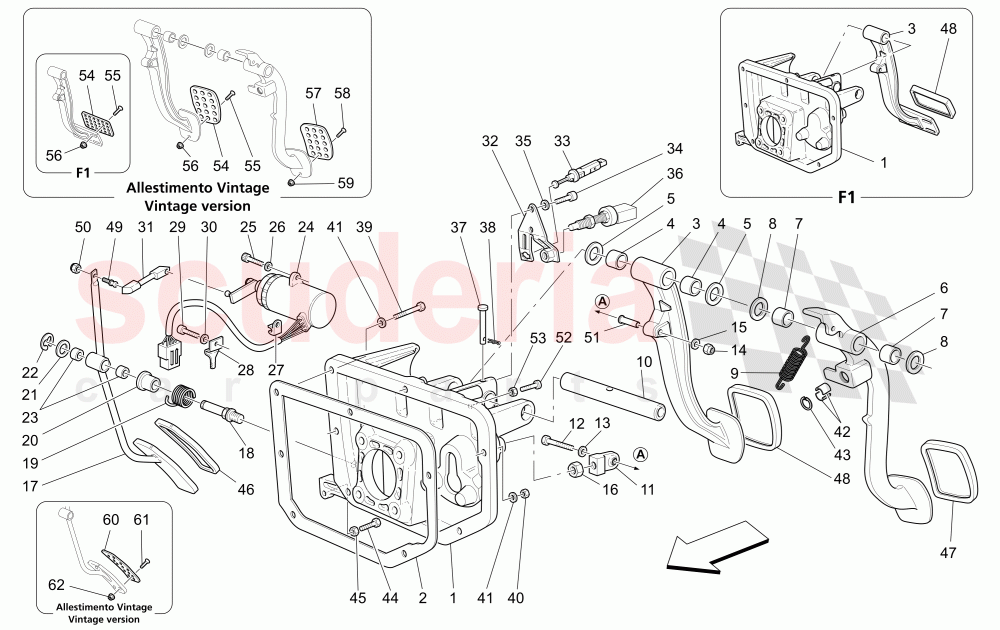

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	183743	PEDAL SUPPORT	$3,401.79	To Order
	185180	PEDAL SUPPORT	$379.81	To Order

Photo	Part No	Description	Price (each)	Stock
	378400348	SUPPORT GASKET	$17.78	To Order

Photo	Part No	Description	Price (each)	Stock
	186859	BRAKE PEDAL	$264.40	To Order
	201972	BRAKE PEDAL	$2,461.29	To Order
	186861	BRAKE PEDAL	$264.40	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	318420320	BUSHING	$17.78	To Order

Photo	Part No	Description	Price (each)	Stock
	368402321	SPACER WASHER	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	186862	CLUTCH PEDAL	$285.60	To Order
	201986	CLUTCH PEDAL	$2,503.18	To Order

Photo	Part No	Description	Price (each)	Stock
	318420320	BUSHING	$17.78	To Order

Photo	Part No	Description	Price (each)	Stock
	368402321	SPACER WASHER	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	101305	SPRING	$9.91	To Order

Photo	Part No	Description	Price (each)	Stock
	388400329	PEDALS SUPPORT PIN	$127.48	To Order

Photo	Part No	Description	Price (each)	Stock
	184749	SERVOBRAKE PIN	$93.04	To Order

Photo	Part No	Description	Price (each)	Stock
	16044424	SCREW	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	12654421	WASHER	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUTM8	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	192592	ACCELERATOR PEDAL	$730.55	To Order
	201977	ACCELERATOR PEDAL	$440.52	To Order

Photo	Part No	Description	Price (each)	Stock
	186666	ACCELERATOR PEDAL PIN	$93.20	To Order

Photo	Part No	Description	Price (each)	Stock
	388400364	RETURN SPRING FOR PEDAL	$108.12	To Order

Photo	Part No	Description	Price (each)	Stock
	388400407	BUSHING	$87.37	To Order

Photo	Part No	Description	Price (each)	Stock
	388400346	WASHER	$5.86	To Order

Photo	Part No	Description	Price (each)	Stock
	11088076	CIRCLIP	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	318420334	BUSHING	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	183656	ACCELERATOR PEDAL POTENTIOMETER	$286.38	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	$2.95	IN STOCK
	231617	SCREW M6 X 18	$2.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.44	To Order

Photo	Part No	Description	Price (each)	Stock
	383000318	RETAINING CLIP	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	383000315	PLATE	$8.39	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREW M6 X 12	$2.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.44	To Order

Photo	Part No	Description	Price (each)	Stock
	82476740	ACCELERATOR PEDALTIE ROD	$113.17	To Order

Photo	Part No	Description	Price (each)	Stock
	194452	SWITCH SUPPORT BRACKET	$120.36	To Order

Photo	Part No	Description	Price (each)	Stock
	334064	BRAKE PEDAL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREW M6 X 12	$2.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	133555	CLUTCH PEDAL SWITCH	$133.71	To Order

Photo	Part No	Description	Price (each)	Stock
	186665	PEDALS FIXING PIN	$211.59	To Order

Photo	Part No	Description	Price (each)	Stock
	58841309	SAFETY CLIP	$5.96	To Order

Photo	Part No	Description	Price (each)	Stock
	16044124	SCREW	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186664	CLUTCH PIN FIXING BUSH	$240.60	To Order

Photo	Part No	Description	Price (each)	Stock
	11057876	CIRCLIP (SEEGER-RING)	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$2.00	To Order
	231625	SCREWM6X50	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	134041	LOCK NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318420301	ACCELERATOR PEDAL COVER	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	378430300	PEDAL COVER	$133.19	To Order

Photo	Part No	Description	Price (each)	Stock
	318432300	BRAKE PEDAL COVER	$4.75	To Order
	378430300	PEDAL COVER	$133.19	To Order

Photo	Part No	Description	Price (each)	Stock
	452054801	BALL PIN	$24.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14075611	NUT	$2.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	189472	BUSHING	$148.68	To Order

Photo	Part No	Description	Price (each)	Stock
	187014	CLUTCH PEDAL ADJUSTEMENT PIN	$43.80	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUTM8	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	212187	PEDAL PLATE	$290.93	To Order
	201103	PEDAL PLATE	$1,901.95	To Order

Photo	Part No	Description	Price (each)	Stock
	14441324	Countersunk Allen Screw M6 x 16	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	212187	PEDAL PLATE	$290.93	To Order

Photo	Part No	Description	Price (each)	Stock
	14441324	Countersunk Allen Screw M6 x 16	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	205025	ACCELERATOR PEDAL PLATE	$413.98	To Order

Photo	Part No	Description	Price (each)	Stock
	14440734	SCREW	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	14058311	NUT	$2.00	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	183743	PEDAL SUPPORT	183743 PEDAL SUPPORT Not for F1	$3,401.79	1
1	185180	PEDAL SUPPORT	185180 PEDAL SUPPORT Valid for F1	$379.81	1
2	378400348	SUPPORT GASKET	378400348 SUPPORT GASKET	$17.78	1
3	186859	BRAKE PEDAL	186859 BRAKE PEDAL Not for F1- -Standard	$264.40	1
3	201972	BRAKE PEDAL	201972 BRAKE PEDAL Not for F1- -Optional- -Vintage version	$2,461.29	1
3	186861	BRAKE PEDAL	186861 BRAKE PEDAL Valid for F1- -Standard	$264.40	1
3	201988	BRAKE PEDAL	201988 BRAKE PEDAL Valid for F1- -Optional- -Vintage version	$527.24 MSRP: ~~552.16~~ (4.5% off)	1
4	318420320	BUSHING	318420320 BUSHING	$17.78	2
5	368402321	SPACER WASHER	368402321 SPACER WASHER	$2.00	2
6	186862	CLUTCH PEDAL	186862 CLUTCH PEDAL Not for F1- -Standard	$285.60	1
6	201986	CLUTCH PEDAL	201986 CLUTCH PEDAL Not for F1- -Optional- -Vintage version	$2,503.18	1
7	318420320	BUSHING	318420320 BUSHING Not for F1	$17.78	2
8	368402321	SPACER WASHER	368402321 SPACER WASHER Not for F1	$2.00	2
9	101305	SPRING	101305 SPRING Not for F1	$9.91	1
10	388400329	PEDALS SUPPORT PIN	388400329 PEDALS SUPPORT PIN	$127.48	1
11	184749	SERVOBRAKE PIN	184749 SERVOBRAKE PIN	$93.04	1
12	16044424	SCREW	16044424 SCREW	$2.42	1
13	12654421	WASHER	12654421 WASHER	$2.00	1
14	147985	NUT	147985 NUT	$2.00	1
15	14499421	WASHER	14499421 WASHER	$2.00	1
16	16102314	NUTM8	16102314 NUTM8	$2.00	1
17	192592	ACCELERATOR PEDAL	192592 ACCELERATOR PEDAL Standard	$730.55	1
17	201977	ACCELERATOR PEDAL	201977 ACCELERATOR PEDAL Optional- -Vintage version	$440.52 MSRP: ~~460.71~~ (4.4% off)	1
18	186666	ACCELERATOR PEDAL PIN	186666 ACCELERATOR PEDAL PIN	$93.20	1
19	388400364	RETURN SPRING FOR PEDAL	388400364 RETURN SPRING FOR PEDAL	$108.12 MSRP: ~~109.57~~ (1.3% off)	1
20	388400407	BUSHING	388400407 BUSHING	$87.37	1
21	388400346	WASHER	388400346 WASHER	$5.86	1
22	11088076	CIRCLIP	11088076 CIRCLIP	$1.27	1
23	318420334	BUSHING	318420334 BUSHING	$2.84	2
24	183656	ACCELERATOR PEDAL POTENTIOMETER	183656 ACCELERATOR PEDAL POTENTIOMETER	$286.38	1
25	231619	SCREW M6 X 22MM IN STOCK	231619 SCREW M6 X 22MM Not for F1 IN STOCK	$2.95	2
25	231617	SCREW M6 X 18 IN STOCK	231617 SCREW M6 X 18 Valid for F1 IN STOCK	$2.95	2
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	$2.44	2
27	383000318	RETAINING CLIP	383000318 RETAINING CLIP	$2.00	1
28	383000315	PLATE	383000315 PLATE	$8.39	1
29	233600	SCREW M6 X 12 IN STOCK	233600 SCREW M6 X 12 IN STOCK	$2.81	1
30	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	$2.44	1
31	82476740	ACCELERATOR PEDALTIE ROD	82476740 ACCELERATOR PEDALTIE ROD	$113.17	1
32	194452	SWITCH SUPPORT BRACKET	194452 SWITCH SUPPORT BRACKET	$120.36	1
33	334064	BRAKE PEDAL SWITCH	334064 BRAKE PEDAL SWITCH	-	1	Enquire
34	233600	SCREW M6 X 12 IN STOCK	233600 SCREW M6 X 12 IN STOCK	$2.81	2
35	127494	WASHER	127494 WASHER	$1.57	2
36	133555	CLUTCH PEDAL SWITCH	133555 CLUTCH PEDAL SWITCH Not for F1	$133.71	1
37	186665	PEDALS FIXING PIN	186665 PEDALS FIXING PIN	$211.59	1
38	58841309	SAFETY CLIP	58841309 SAFETY CLIP	$5.96	1
39	16044124	SCREW	16044124 SCREW	$2.42	4
40	147985	NUT	147985 NUT	$2.00	3
41	84653800	WASHER	84653800 WASHER	-	7	Enquire
42	186664	CLUTCH PIN FIXING BUSH	186664 CLUTCH PIN FIXING BUSH Not for F1	$240.60	2
43	11057876	CIRCLIP (SEEGER-RING)	11057876 CIRCLIP (SEEGER-RING) Not for F1	$2.00	1
44	10902224	SCREW M6 X 16	10902224 SCREW M6 X 16 Valid for F1	$2.00	1
44	231625	SCREWM6X50	231625 SCREWM6X50 Not for F1	$2.84	1
45	134041	LOCK NUT	134041 LOCK NUT	-	1	Enquire
46	318420301	ACCELERATOR PEDAL COVER	318420301 ACCELERATOR PEDAL COVER	$2.84	1
47	378430300	PEDAL COVER	378430300 PEDAL COVER Not for F1	$133.19 MSRP: ~~139.59~~ (4.6% off)	1
48	318432300	BRAKE PEDAL COVER	318432300 BRAKE PEDAL COVER Valid for F1	$4.75	1
48	378430300	PEDAL COVER	378430300 PEDAL COVER Not for F1	$133.19 MSRP: ~~139.59~~ (4.6% off)	1
49	452054801	BALL PIN	452054801 BALL PIN	$24.77	1
50	14075611	NUT IN STOCK	14075611 NUT IN STOCK	$2.42	1
51	189472	BUSHING	189472 BUSHING	$148.68	1
52	187014	CLUTCH PEDAL ADJUSTEMENT PIN	187014 CLUTCH PEDAL ADJUSTEMENT PIN Not for F1	$43.80	1
53	16102314	NUTM8	16102314 NUTM8 M8 Not for F1	$2.00	1
54	212187	PEDAL PLATE	212187 PEDAL PLATE Not for F1- -Optional- -Vintage version	$290.93	1
54	201103	PEDAL PLATE	201103 PEDAL PLATE Valid for F1- -Optional- -Vintage version	$1,901.95 MSRP: ~~2,001.58~~ (5% off)	1
55	14441324	Countersunk Allen Screw M6 x 16 IN STOCK	14441324 Countersunk Allen Screw M6 x 16 (Quantity 4 for F1)- -Optional- -Vintage version IN STOCK	$2.07	2
56	14039614	NUT IN STOCK	14039614 NUT M6 (Quantity 4 for F1)- -Optional- -Vintage version IN STOCK	$1.55	2
57	212187	PEDAL PLATE	212187 PEDAL PLATE Not for F1- -Optional- -Vintage version	$290.93	1
58	14441324	Countersunk Allen Screw M6 x 16 IN STOCK	14441324 Countersunk Allen Screw M6 x 16 Not for F1- -Optional- -Vintage version IN STOCK	$2.07	2
59	14039614	NUT IN STOCK	14039614 NUT M6 Not for F1- -Optional- -Vintage version IN STOCK	$1.55	2
60	205025	ACCELERATOR PEDAL PLATE	205025 ACCELERATOR PEDAL PLATE Optional- -Vintage version	$413.98 MSRP: ~~434.83~~ (4.8% off)	1
61	14440734	SCREW	14440734 SCREW Optional- -Vintage version	$2.84	3
62	14058311	NUT	14058311 NUT Optional- -Vintage version	$2.00	3
