LAY SHAFT GEARS of Maserati Maserati 4200 Coupe (2002-2004) GT

View All

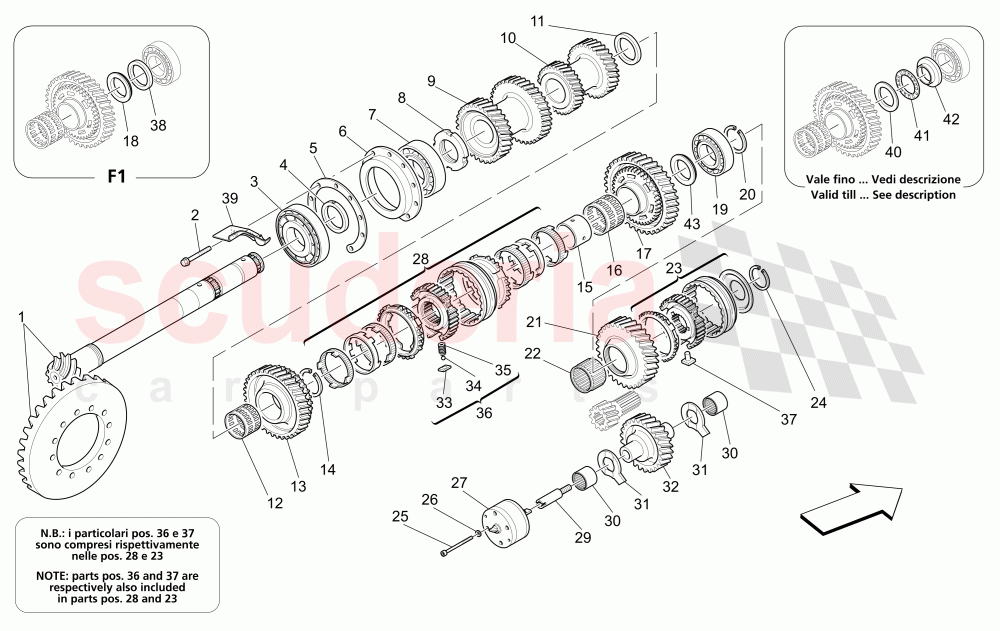

Maserati 4200 Coupe (2002-2004) GT - LAY SHAFT GEARS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	185679	COMPLETE BEVEL SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185022	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185045	SPACER RING	Enquire	To Order
	185046	SPACER RING	Enquire	To Order
	185047	SPACER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185043	SPACER RING	Enquire	To Order
	185044	SPACER RING	Enquire	To Order
	185042	SPACER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185020	BEARING SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185021	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196667	GEARBOX RING NUT M45 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182287	3rd AND 4th DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182288	5th AND 6th DRIVEN GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185039	RING	Enquire	To Order
	183974	RING	Enquire	To Order
	185038	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184014	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208626	COMPLETE PINION FOR 2nd GEAR	Enquire	To Order
	182293	COMPLETE PINION FOR 2nd GEAR	Enquire	To Order
	198263	COMPLETE PINION FOR 2nd GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185036	CIRCLIP	Enquire	To Order
	185037	CIRCLIP	Enquire	To Order
	183976	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183971	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184016	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182299	COMPLETE PINION FOR 1st GEAR	Enquire	To Order
	182299	COMPLETE PINION FOR 1st GEAR	Enquire	To Order
	208625	COMPLETE PINION FOR 1st GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185041	RING	Enquire	To Order
	183972	RING	Enquire	To Order
	185040	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184020	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184042	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199534	COMPLETE PINION FOR REVERSE GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184018	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326260	REVERSE GEAR COMPLETE SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184041	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10571379	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182279	COMPLETE OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185164	1st AND 2nd GEAR COMPLETE SYNCHRONIZER	Enquire	To Order
	198267	1st AND 2nd GEAR COMPLETE SYNCHRONIZER	Enquire	To Order
	208627	1st AND 2nd GEAR COMPLETE SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182415	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184017	NEEDLE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183975	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199532	IDLE GEAR FOR REVERSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188320	PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	Enquire	To Order
	195991	PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193440	PADS/SYNCHRO REVERSE GEAR KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182326	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185713	OIL GALLERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196524	STOP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196523	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196663	RING	Enquire	To Order
	196664	RING	Enquire	To Order
	196509	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185040	RING	Enquire	To Order
	185041	RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	185679	COMPLETE BEVEL SET	185679 COMPLETE BEVEL SET	-	1	Enquire
2	16287734	SCREW	16287734 SCREW	-	9	Enquire
3	185022	ROLLER BEARING	185022 ROLLER BEARING	-	1	Enquire
4	185045	SPACER RING	185045 SPACER RING Thickness mm. 7,10	-	1	Enquire
4	185046	SPACER RING	185046 SPACER RING Thickness mm. 6,85- -Possible fitting	-	1	Enquire
4	185047	SPACER RING	185047 SPACER RING Thickness mm. 6,60- -Possible fitting	-	1	Enquire
5	185043	SPACER RING	185043 SPACER RING Thickness mm. 2,5- -Possible fitting	-	1	Enquire
5	185044	SPACER RING	185044 SPACER RING Thickness mm. 2,2- -Possible fitting	-	1	Enquire
5	185042	SPACER RING	185042 SPACER RING Thickness mm. 2,8	-	1	Enquire
6	185020	BEARING SUPPORT	185020 BEARING SUPPORT	-	1	Enquire
7	185021	ROLLER BEARING	185021 ROLLER BEARING	-	1	Enquire
8	196667	GEARBOX RING NUT M45 X 1.5	196667 GEARBOX RING NUT M45 X 1.5	-	1	Enquire
9	182287	3rd AND 4th DRIVEN GEAR	182287 3rd AND 4th DRIVEN GEAR	-	1	Enquire
10	182288	5th AND 6th DRIVEN GEAR	182288 5th AND 6th DRIVEN GEAR	-	1	Enquire
11	185039	RING	185039 RING Thickness mm. 3,60- -Possible fitting	-	1	Enquire
11	183974	RING	183974 RING Thickness mm. 4,30	-	1	Enquire
11	185038	RING	185038 RING Thickness mm. 3,95- -Possible fitting	-	1	Enquire
12	184014	ROLLER CAGE	184014 ROLLER CAGE	-	1	Enquire
13	208626	COMPLETE PINION FOR 2nd GEAR	208626 COMPLETE PINION FOR 2nd GEAR Not for F1- -Valid from car Ass. Nr. 13599- -Valid for cars with complete gearboxcode 203017	-	1	Enquire
13	182293	COMPLETE PINION FOR 2nd GEAR	182293 COMPLETE PINION FOR 2nd GEAR Valid for F1	-	1	Enquire
13	198263	COMPLETE PINION FOR 2nd GEAR	198263 COMPLETE PINION FOR 2nd GEAR Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017	-	1	Enquire
14	185036	CIRCLIP	185036 CIRCLIP Thickness mm. 1,85- -Possible fitting	-	1	Enquire
14	185037	CIRCLIP	185037 CIRCLIP Thickness mm. 1,60- -Possible fitting	-	1	Enquire
14	183976	CIRCLIP	183976 CIRCLIP Thickness mm. 2,10	-	1	Enquire
15	183971	BUSHING	183971 BUSHING	-	1	Enquire
16	184016	ROLLER CAGE	184016 ROLLER CAGE	-	1	Enquire
17	182299	COMPLETE PINION FOR 1st GEAR	182299 COMPLETE PINION FOR 1st GEAR Valid for F1	-	1	Enquire
17	182299	COMPLETE PINION FOR 1st GEAR	182299 COMPLETE PINION FOR 1st GEAR Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017	-	1	Enquire
17	208625	COMPLETE PINION FOR 1st GEAR	208625 COMPLETE PINION FOR 1st GEAR Not for F1- -Valid from car Ass. Nr. 13599- -Valid for cars with complete gearboxcode 203017	-	1	Enquire
18	185041	RING	185041 RING Thickness mm. 4,60- -Possible fitting- -Valid for F1	-	1	Enquire
18	183972	RING	183972 RING Thickness mm. 5,10- -Valid for F1	-	1	Enquire
18	185040	RING	185040 RING Thickness mm. 4,85- -Possible fitting- -Valid for F1	-	1	Enquire
19	184020	ROLLER BEARING	184020 ROLLER BEARING	-	1	Enquire
20	184042	CIRCLIP	184042 CIRCLIP	-	1	Enquire
21	199534	COMPLETE PINION FOR REVERSE GEAR	199534 COMPLETE PINION FOR REVERSE GEAR	-	1	Enquire
22	184018	ROLLER CAGE	184018 ROLLER CAGE	-	1	Enquire
23	326260	REVERSE GEAR COMPLETE SYNCHRONIZER	326260 REVERSE GEAR COMPLETE SYNCHRONIZER	-	1	Enquire
24	184041	CIRCLIP	184041 CIRCLIP	-	1	Enquire
25	14303624	SCREW	14303624 SCREW	-	4	Enquire
26	10571379	WASHER	10571379 WASHER	-	4	Enquire
27	182279	COMPLETE OIL PUMP	182279 COMPLETE OIL PUMP	-	1	Enquire
28	185164	1st AND 2nd GEAR COMPLETE SYNCHRONIZER	185164 1st AND 2nd GEAR COMPLETE SYNCHRONIZER Valid for F1	-	1	Enquire
28	198267	1st AND 2nd GEAR COMPLETE SYNCHRONIZER	198267 1st AND 2nd GEAR COMPLETE SYNCHRONIZER Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017	-	1	Enquire
28	208627	1st AND 2nd GEAR COMPLETE SYNCHRONIZER	208627 1st AND 2nd GEAR COMPLETE SYNCHRONIZER Not for F1- -Valid from car Ass. Nr. 13599- -Valid for cars with complete gearboxcode 203017	-	1	Enquire
29	182415	PIN	182415 PIN	-	1	Enquire
30	184017	NEEDLE BEARING	184017 NEEDLE BEARING	-	2	Enquire
31	183975	RING	183975 RING	-	2	Enquire
32	199532	IDLE GEAR FOR REVERSE	199532 IDLE GEAR FOR REVERSE	-	1	Enquire
36	188320	PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	188320 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT Valid for F1	-	1	Enquire
36	195991	PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT	195991 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT Not for F1	-	1	Enquire
37	193440	PADS/SYNCHRO REVERSE GEAR KIT	193440 PADS/SYNCHRO REVERSE GEAR KIT	-	1	Enquire
38	182326	SPACER	182326 SPACER Valid for F1	-	1	Enquire
39	185713	OIL GALLERY	185713 OIL GALLERY	-	1	Enquire
40	196524	STOP RING	196524 STOP RING Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017	-	1	Enquire
41	196523	ROLLER CAGE	196523 ROLLER CAGE Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017	-	1	Enquire
42	196663	RING	196663 RING Thickness mm. 10,10- -Possible fitting- -Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017	-	1	Enquire
42	196664	RING	196664 RING Thickness mm. 10,35- -Possible fitting- -Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017	-	1	Enquire
42	196509	RING	196509 RING Thickness mm. 10,60- -Not for F1- -Valid till car Ass. Nr. 13598- -Not for cars with complete gearboxcode 203017	-	1	Enquire
43	185040	RING	185040 RING Thickness mm. 4,85- -Possible fitting- -Not for F1- -Valid from car Ass. Nr. 13599- -Valid for cars with complete gearboxcode 203017	-	1	Enquire
43	185041	RING	185041 RING Thickness mm. 4,60- -Not for F1- -Valid from car Ass. Nr. 13599- -Valid for cars with complete gearboxcode 203017	-	1	Enquire
