Find Your Part

Authorised by Maserati SPA

SOUND SYSTEM of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - SOUND SYSTEM

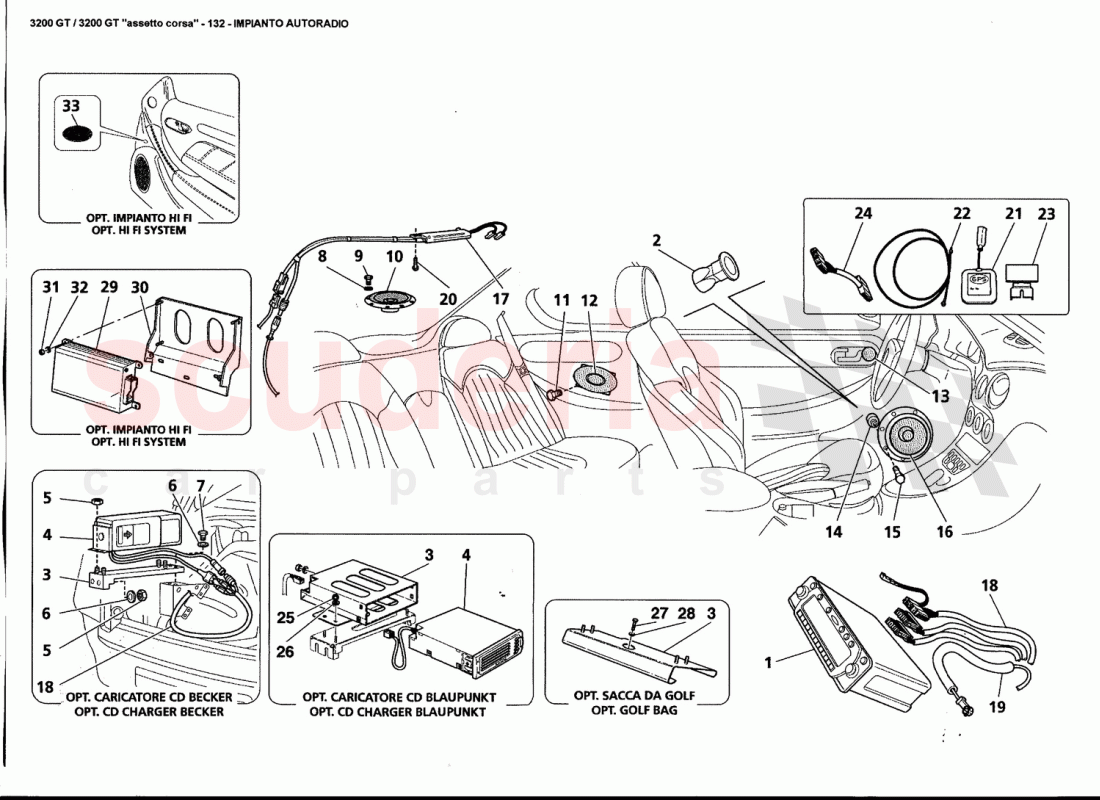

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	920000416	KIT RADIO NAVIGATOR GPS BOSCH RNS3 + ANTENNA GPS	Enquire	To Order
	184602	RADIO NAVIGATOR GPS BOSCH RNS3	Enquire	To Order
	184603	RADIO MONO CD VIKING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	60585246	NUT SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	382500179	CD HOLDER BRACKET	Enquire	To Order
	388100160	CD HOLDER BRACKET	Enquire	To Order
	383500145	CD HOLDER BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	233649	CD AUTOMATIC LOADER	Enquire	To Order
	194414	CD AUTOMATIC LOADER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128200050	NYLON STOP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604470	RETAINING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15783607	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184106	WOOFER	Enquire	To Order
	184605	PARCEL SHELF SPEAKER.D130	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689807	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184608	REAR LOUDSPEAKER	Enquire	To Order
	184107	REAR LOUDSPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184108	TWEETER SPEAKER	Enquire	To Order
	184604	TWEETER SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388300804	SPACER FOR FRONT SPEAKER.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15783607	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184606	DOOR SPEAKER ASSY	Enquire	To Order
	184105	DOOR SPEAKER ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383500100	ANTENNA AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383500112	PRE MODIFY CABLE FOR C.D.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383500121	RADIO ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273914	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201356	GPS ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184635	GPS ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	382300605	ANTENNA FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383000172	CABLE FOR GPS/ CAR STEREO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13831811	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306374	ALLEN SCREW SOCKET HEAD M8 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12602474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184607	AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	381700360	AMPLIFIER FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13579224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	388300398	PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	920000416	KIT RADIO NAVIGATOR GPS BOSCH RNS3 + ANTENNA GPS	920000416 KIT RADIO NAVIGATOR GPS BOSCH RNS3 + ANTENNA GPS Optional	-	1	Enquire
1	184602	RADIO NAVIGATOR GPS BOSCH RNS3	184602 RADIO NAVIGATOR GPS BOSCH RNS3 Optional	-	1	Enquire
1	184603	RADIO MONO CD VIKING	184603 RADIO MONO CD VIKING Optional	-	1	Enquire
1	383500116	RADIO MEXICO CC4327	383500116 RADIO MEXICO CC4327 Standard / Not for J	-	1	Enquire
2	60585246	NUT SCREW	60585246 NUT SCREW	-	8	Enquire
3	382500179	CD HOLDER BRACKET	382500179 CD HOLDER BRACKET Optional / Valid for CD charger Becker / Valid till Ass. Nr. 3224	-	1	Enquire
3	388100160	CD HOLDER BRACKET	388100160 CD HOLDER BRACKET Optional / Valid for CD charger Becker / Valid from Ass. Nr. 3225	-	1	Enquire
3	383500145	CD HOLDER BRACKET	383500145 CD HOLDER BRACKET Optional / Valid for CD charger Blaupunkt	-	1	Enquire
3	388100190	CD HOLDER BRACKET	388100190 CD HOLDER BRACKET Optional / Valid for CD charger Becker or Blaupunkt / Valid for versions with golf bag	-	1	Enquire
4	233649	CD AUTOMATIC LOADER	233649 CD AUTOMATIC LOADER Optional / Not for J	-	1	Enquire
4	194414	CD AUTOMATIC LOADER	194414 CD AUTOMATIC LOADER Optional / Not for J	-	1	Enquire
5	128200050	NYLON STOP NUT	128200050 NYLON STOP NUT Optional / Valid for CD charger Becker	-	4	Enquire
6	12604470	RETAINING WASHER	12604470 RETAINING WASHER Optional / Valid for CD charger Becker	-	4	Enquire
7	15783607	SCREW	15783607 SCREW Optional / Valid for CD charger Becker	-	2	Enquire
8	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5	-	8	Enquire
9	10977524	SCREW	10977524 SCREW	-	8	Enquire
10	184106	WOOFER	184106 WOOFER Standard	-	2	Enquire
10	184605	PARCEL SHELF SPEAKER.D130	184605 PARCEL SHELF SPEAKER.D130 Optional / Hl Fl system	-	2	Enquire
11	15689807	SCREW	15689807 SCREW	-	8	Enquire
12	184608	REAR LOUDSPEAKER	184608 REAR LOUDSPEAKER Optional / Hl Fl system	-	2	Enquire
12	184107	REAR LOUDSPEAKER	184107 REAR LOUDSPEAKER Standard	-	2	Enquire
13	184108	TWEETER SPEAKER	184108 TWEETER SPEAKER Standard	-	2	Enquire
13	184604	TWEETER SPEAKER	184604 TWEETER SPEAKER Optional / Hl Fl system	-	2	Enquire
14	388300804	SPACER FOR FRONT SPEAKER.	388300804 SPACER FOR FRONT SPEAKER.	-	8	Enquire
15	15783607	SCREW	15783607 SCREW	-	8	Enquire
16	184606	DOOR SPEAKER ASSY	184606 DOOR SPEAKER ASSY Optional / Hl Fl system	-	2	Enquire
16	184105	DOOR SPEAKER ASSY	184105 DOOR SPEAKER ASSY Standard	-	2	Enquire
17	383500100	ANTENNA AMPLIFIER	383500100 ANTENNA AMPLIFIER Optional / Hl Fl system	-	1	Enquire
18	383500112	PRE MODIFY CABLE FOR C.D.	383500112 PRE MODIFY CABLE FOR C.D.	-	1	Enquire
19	383500121	RADIO ANTENNA CABLE	383500121 RADIO ANTENNA CABLE	-	1	Enquire
20	13273914	SCREW	13273914 SCREW Optional / Hl Fl system	-	1	Enquire
21	201356	GPS ANTENNA	201356 GPS ANTENNA Optional	-	1	Enquire
22	184635	GPS ANTENNA CABLE	184635 GPS ANTENNA CABLE Optional	-	1	Enquire
23	382300605	ANTENNA FIXING PLATE	382300605 ANTENNA FIXING PLATE Optional	-	1	Enquire
24	383000172	CABLE FOR GPS/ CAR STEREO	383000172 CABLE FOR GPS/ CAR STEREO Optional	-	1	Enquire
25	13831811	NUT	13831811 NUT Optional / Valid for CD charger Blaupunkt	-	4	Enquire
26	12638178	Washer	12638178 Washer Optional / Valid for CD charger Blaupunkt	-	4	Enquire
27	14306374	ALLEN SCREW SOCKET HEAD M8 X 20	14306374 ALLEN SCREW SOCKET HEAD M8 X 20 Optional / Valid for versions with opt. golf bag	-	1	Enquire
28	12602474	WASHER	12602474 WASHER Optional / Valid for versions with opt. golf bag	-	1	Enquire
29	184607	AMPLIFIER	184607 AMPLIFIER Optional / Hl Fl system	-	1	Enquire
30	381700360	AMPLIFIER FIXING BRACKET	381700360 AMPLIFIER FIXING BRACKET Optional / Hl Fl system	-	1	Enquire
31	14039614	NUT	14039614 NUT Optional / Hl Fl system	-	4	Enquire
32	13579224	WASHER	13579224 WASHER Optional / Hl Fl system	-	4	Enquire
33	388300398	PLATE	388300398 PLATE Optional / Hl Fl system	-	2	Enquire
