HEADLIGHTS of Maserati Maserati 3200 GT / Assetto Corsa

View All

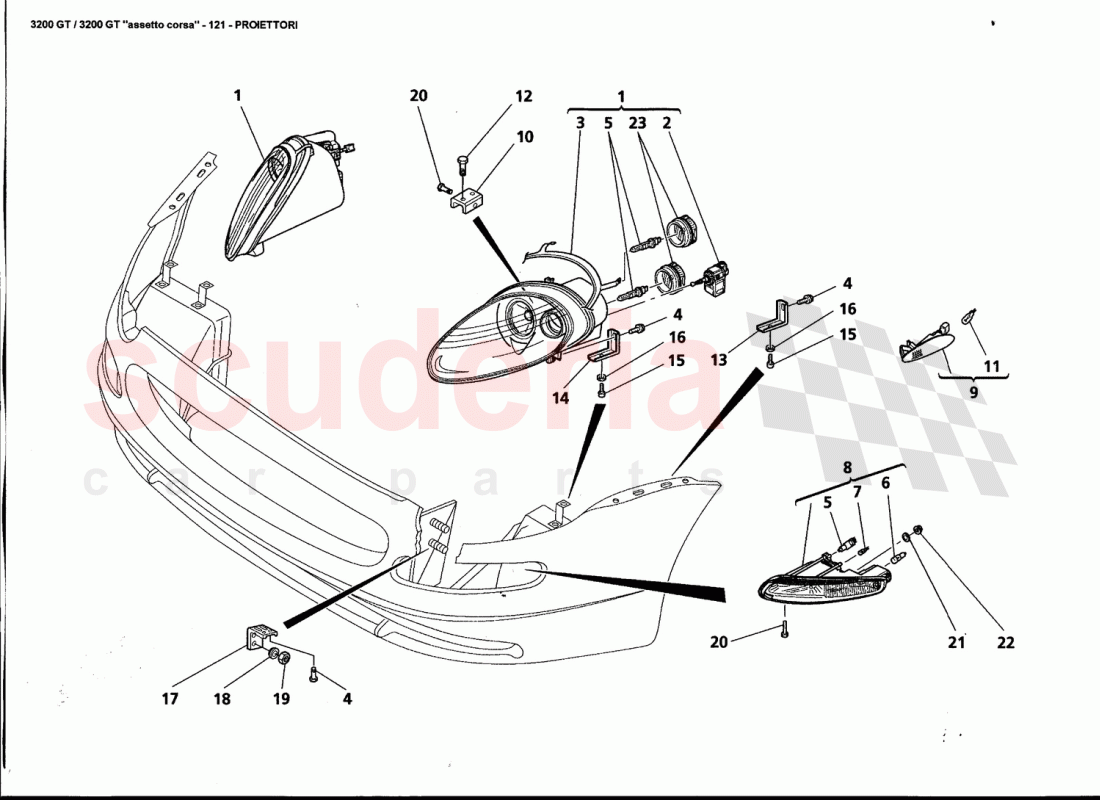

Maserati 3200 GT / Assetto Corsa - HEADLIGHTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980008929	LH HEADLAMP BLUE	Enquire	To Order
	980008928	RH HEADLAMP BLUE	Enquire	To Order
	980008927	LH HEADLAMP BLUE	Enquire	To Order

...and 81 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	980000950	HEADLAMP ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000952	R.H. Headlamp External Gasket	Enquire	To Order
	980000951	L.H. HEADLAMP EXTERNAL GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000953	HEADLIGHT BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000954	DIRECTION LIGHT BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980000955	LIGHT POSITION BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383100114	RH FOG LAMP	Enquire	To Order
	383100115	LH FOG LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383100127	SIDE DIRECTION SMALL LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386100126	RH BRACKET TO SECURE HEADLAMP ASSY	Enquire	To Order
	386100125	LH BRACKET TO SECURE HEADLAMP ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001160	LIGHT POSITION BULB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10872624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383100160	FRONT LIGHT ASSY CENTRE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383100161	REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11730626	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12582474	SPRING LOCK WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	383100312	FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10523401	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11730924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980001141	CAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	980008929	LH HEADLAMP BLUE	980008929 LH HEADLAMP BLUE Only GD and J	-	1	Enquire
1	980008928	RH HEADLAMP BLUE	980008928 RH HEADLAMP BLUE Only GS	-	1	Enquire
1	980008927	LH HEADLAMP BLUE	980008927 LH HEADLAMP BLUE Only GS	-	1	Enquire
1	980007930	RH HEADLAMP ARGENTINA BLUE	980007930 RH HEADLAMP ARGENTINA BLUE Only GD and J	-	1	Enquire
1	980007929	LH HEADLAMP ARGENTINA BLUE	980007929 LH HEADLAMP ARGENTINA BLUE Only GD and J	-	1	Enquire
1	980007928	RH HEADLAMP ARGENTINA BLUE	980007928 RH HEADLAMP ARGENTINA BLUE Only GS	-	1	Enquire
1	980007927	LH HEADLAMP ARGENTINA BLUE	980007927 LH HEADLAMP ARGENTINA BLUE Only GS	-	1	Enquire
1	980006930	RH HEADLAMP COAL BLACK	980006930 RH HEADLAMP COAL BLACK Only GD and J	-	1	Enquire
1	980006929	LH HEADLAMP COAL BLACK	980006929 LH HEADLAMP COAL BLACK Only GD and J	-	1	Enquire
1	980008930	RH HEADLAMP BLUE	980008930 RH HEADLAMP BLUE Only GD and J	-	1	Enquire
1	980009927	LH HEADLAMP MASERATI BLUE	980009927 LH HEADLAMP MASERATI BLUE Only GS	-	1	Enquire
1	980011928	RH HEADLAMP BROOKLAND GREEN	980011928 RH HEADLAMP BROOKLAND GREEN Only GS	-	1	Enquire
1	980011927	LH HEADLAMP BROOKLAND GREEN	980011927 LH HEADLAMP BROOKLAND GREEN Only GS	-	1	Enquire
1	980010930	RH HEADLAMP NEPTUNE BLUE	980010930 RH HEADLAMP NEPTUNE BLUE Only GD and J	-	1	Enquire
1	980010929	LH HEADLAMP NEPTUNE BLUE	980010929 LH HEADLAMP NEPTUNE BLUE Only GD and J	-	1	Enquire
1	980010928	RH HEADLAMP NEPTUNE BLUE	980010928 RH HEADLAMP NEPTUNE BLUE Only GS	-	1	Enquire
1	980010927	LH HEADLAMP NEPTUNE BLUE	980010927 LH HEADLAMP NEPTUNE BLUE Only GS	-	1	Enquire
1	980009930	RH HEADLAMP MASERATI BLUE	980009930 RH HEADLAMP MASERATI BLUE Only GD and J	-	1	Enquire
1	980009929	LH HEADLAMP MASERATI BLUE	980009929 LH HEADLAMP MASERATI BLUE Only GD and J	-	1	Enquire
1	980009928	RH HEADLAMP MASERATI BLUE	980009928 RH HEADLAMP MASERATI BLUE Only GS	-	1	Enquire
1	980006928	RH HEADLAMP COAL BLACK	980006928 RH HEADLAMP COAL BLACK Only GS	-	1	Enquire
1	980006927	LH HEADLAMP COAL BLACK	980006927 LH HEADLAMP COAL BLACK Only GS	-	1	Enquire
1	980003927	LH HEADLAMP GREY TOURING	980003927 LH HEADLAMP GREY TOURING Only GS	-	1	Enquire
1	980002930	RH HEADLAMP WHITE BIRDCAGE	980002930 RH HEADLAMP WHITE BIRDCAGE Only GD and J	-	1	Enquire
1	980002929	LH HEADLAMP WHITE BIRDCAGE	980002929 LH HEADLAMP WHITE BIRDCAGE Only GD and J	-	1	Enquire
1	980002928	RH HEADLAMP WHITE BIRDCAGE	980002928 RH HEADLAMP WHITE BIRDCAGE Only GS	-	1	Enquire
1	980002927	LH HEADLAMP WHITE BIRDCAGE	980002927 LH HEADLAMP WHITE BIRDCAGE Only GS	-	1	Enquire
1	980001930	RH HEADLAMP YELLOW G.T.	980001930 RH HEADLAMP YELLOW G.T. Only GD and J	-	1	Enquire
1	980001929	LH HEADLAMP YELLOW G.T.	980001929 LH HEADLAMP YELLOW G.T. Only GD and J	-	1	Enquire
1	980001928	RH HEADLAMP YELLOW G.T.	980001928 RH HEADLAMP YELLOW G.T. Only GS	-	1	Enquire
1	980003928	RH HEADLAMP GREY TOURING	980003928 RH HEADLAMP GREY TOURING Only GS	-	1	Enquire
1	980003929	LH HEADLAMP GREY TOURING	980003929 LH HEADLAMP GREY TOURING Only GD and J	-	1	Enquire
1	980003930	RH HEADLAMP GREY TOURING	980003930 RH HEADLAMP GREY TOURING Only GD and J	-	1	Enquire
1	980005930	RH HEADLAMP SOFT BLACK	980005930 RH HEADLAMP SOFT BLACK Only GD and J	-	1	Enquire
1	980005929	LH HEADLAMP SOFT BLACK	980005929 LH HEADLAMP SOFT BLACK Only GD and J	-	1	Enquire
1	980005928	RH HEADLAMP SOFT BLACK	980005928 RH HEADLAMP SOFT BLACK Only GS	-	1	Enquire
1	980005927	LH HEADLAMP SOFT BLACK	980005927 LH HEADLAMP SOFT BLACK Only GS	-	1	Enquire
1	980004930	RH HEADLAMP GREY ALFIERI	980004930 RH HEADLAMP GREY ALFIERI Only GD and J	-	1	Enquire
1	980004929	LH HEADLAMP GREY ALFIERI	980004929 LH HEADLAMP GREY ALFIERI Only GD and J	-	1	Enquire
1	980004928	RH HEADLAMP GREY ALFIERI	980004928 RH HEADLAMP GREY ALFIERI Only GS	-	1	Enquire
1	980004927	LH HEADLAMP GREY ALFIERI	980004927 LH HEADLAMP GREY ALFIERI Only GS	-	1	Enquire
1	980001927	LH HEADLAMP YELLOW G.T.	980001927 LH HEADLAMP YELLOW G.T. Only GS	-	1	Enquire
1	980021930	RH HEADLAMP MONDIALE RED	980021930 RH HEADLAMP MONDIALE RED Only GD and J	-	1	Enquire
1	980018930	RH HEADLAMP QUARZO DOLOMITE	980018930 RH HEADLAMP QUARZO DOLOMITE Only GD and J	-	1	Enquire
1	980018929	LH HEADLAMP QUARZO DOLOMITE	980018929 LH HEADLAMP QUARZO DOLOMITE Only GD and J	-	1	Enquire
1	980018928	RH HEADLAMP QUARZO DOLOMITE	980018928 RH HEADLAMP QUARZO DOLOMITE Only GS	-	1	Enquire
1	980018927	LH HEADLAMP QUARZO DOLOMITE	980018927 LH HEADLAMP QUARZO DOLOMITE Only GS	-	1	Enquire
1	980017930	RH HEADLAMP MISTRAL GREEN	980017930 RH HEADLAMP MISTRAL GREEN Only GD and J	-	1	Enquire
1	980017929	LH HEADLAMP MISTRAL GREEN	980017929 LH HEADLAMP MISTRAL GREEN Only GD and J	-	1	Enquire
1	980017928	RH HEADLAMP MISTRAL GREEN	980017928 RH HEADLAMP MISTRAL GREEN Only GS	-	1	Enquire
1	980017927	LH HEADLAMP MISTRAL GREEN	980017927 LH HEADLAMP MISTRAL GREEN Only GS	-	1	Enquire
1	980019927	LH HEADLAMP SEBRING BLUE	980019927 LH HEADLAMP SEBRING BLUE Only GS	-	1	Enquire
1	980019928	RH HEADLAMP SEBRING BLUE	980019928 RH HEADLAMP SEBRING BLUE Only GS	-	1	Enquire
1	980019929	LH HEADLAMP SEBRING BLUE	980019929 LH HEADLAMP SEBRING BLUE Only GD and J	-	1	Enquire
1	980021929	LH HEADLAMP MONDIALE RED	980021929 LH HEADLAMP MONDIALE RED Only GD and J	-	1	Enquire
1	980021928	RH HEADLAMP MONDIALE RED	980021928 RH HEADLAMP MONDIALE RED Only GS	-	1	Enquire
1	980021927	RH HEADLAMP MONDIALE RED	980021927 RH HEADLAMP MONDIALE RED Only GS	-	1	Enquire
1	980020930	RH HEADLAMP BLACK CARBON NEW	980020930 RH HEADLAMP BLACK CARBON NEW Only GD and J	-	1	Enquire
1	980020928	RH HEADLAMP BLACK CARBON NEW	980020928 RH HEADLAMP BLACK CARBON NEW Only GS	-	1	Enquire
1	980020929	LH HEADLAMP BLACK CARBON NEW	980020929 LH HEADLAMP BLACK CARBON NEW Only GD and J	-	1	Enquire
1	980020927	LH HEADLAMP BLACK CARBON NEW	980020927 LH HEADLAMP BLACK CARBON NEW Only GS	-	1	Enquire
1	980019930	RH HEADLAMP SEBRING BLUE	980019930 RH HEADLAMP SEBRING BLUE Only GD and J	-	1	Enquire
1	980016930	RH HEADLAMP VILLORESI RED	980016930 RH HEADLAMP VILLORESI RED Only GD and J	-	1	Enquire
1	980016929	LH HEADLAMP VILLORESI RED	980016929 LH HEADLAMP VILLORESI RED Only GD and J	-	1	Enquire
1	980013929	LH HEADLAMP MOSS GREEN	980013929 LH HEADLAMP MOSS GREEN Only GD and J	-	1	Enquire
1	980013928	RH HEADLAMP MOSS GREEN	980013928 RH HEADLAMP MOSS GREEN Only GS	-	1	Enquire
1	980013927	LH HEADLAMP MOSS GREEN	980013927 LH HEADLAMP MOSS GREEN Only GS	-	1	Enquire
1	980012930	RH HEADLAMP MEXICO GREEN	980012930 RH HEADLAMP MEXICO GREEN Only GD and J	-	1	Enquire
1	980012929	LH HEADLAMP MEXICO GREEN	980012929 LH HEADLAMP MEXICO GREEN Only GD and J	-	1	Enquire
1	980012928	RH HEADLAMP MEXICO GREEN	980012928 RH HEADLAMP MEXICO GREEN Only GS	-	1	Enquire
1	980012927	LH HEADLAMP MEXICO GREEN.	980012927 LH HEADLAMP MEXICO GREEN. Only GS	-	1	Enquire
1	980011930	RH HEADLAMP BROOKLAND GREEN	980011930 RH HEADLAMP BROOKLAND GREEN Only GD and J	-	1	Enquire
1	980013930	RH HEADLAMP MOSS GREEN	980013930 RH HEADLAMP MOSS GREEN Only GD and J	-	1	Enquire
1	980014927	LH HEADLAMP INDIANAPOLIS RED	980014927 LH HEADLAMP INDIANAPOLIS RED Only GS	-	1	Enquire
1	980014928	RH HEADLAMP INDIANAPOLIS RED	980014928 RH HEADLAMP INDIANAPOLIS RED Only GS	-	1	Enquire
1	980016928	RH HEADLAMP VILLORESI RED	980016928 RH HEADLAMP VILLORESI RED Only GS	-	1	Enquire
1	980016927	LH HEADLAMP VILLORESI RED	980016927 LH HEADLAMP VILLORESI RED Only GS	-	1	Enquire
1	980015930	RH HEADLAMP BOLOGNA RED	980015930 RH HEADLAMP BOLOGNA RED Only GD and J	-	1	Enquire
1	980015929	LH HEADLAMP BOLOGNA RED	980015929 LH HEADLAMP BOLOGNA RED Only GD and J	-	1	Enquire
1	980015928	RH HEADLAMP BOLOGNA RED	980015928 RH HEADLAMP BOLOGNA RED Only GS	-	1	Enquire
1	980015927	LH HEADLAMP BOLOGNA RED	980015927 LH HEADLAMP BOLOGNA RED Only GS	-	1	Enquire
1	980014930	RH HEADLAMP INDIANAPOLIS RED	980014930 RH HEADLAMP INDIANAPOLIS RED Only GD and J	-	1	Enquire
1	980014929	LH HEADLAMP INDIANAPOLIS RED	980014929 LH HEADLAMP INDIANAPOLIS RED Only GD and J	-	1	Enquire
1	980011929	LH HEADLAMP BROOKLAND GREEN	980011929 LH HEADLAMP BROOKLAND GREEN Only GD and J	-	1	Enquire
2	980000950	HEADLAMP ACTUATOR	980000950 HEADLAMP ACTUATOR	-	2	Enquire
3	980000952	R.H. Headlamp External Gasket	980000952 R.H. Headlamp External Gasket	-	1	Enquire
3	980000951	L.H. HEADLAMP EXTERNAL GASKET	980000951 L.H. HEADLAMP EXTERNAL GASKET	-	1	Enquire
4	11730624	SCREW	11730624 SCREW	-	6	Enquire
5	980000953	HEADLIGHT BULB	980000953 HEADLIGHT BULB	-	6	Enquire
6	980000954	DIRECTION LIGHT BULB	980000954 DIRECTION LIGHT BULB	-	2	Enquire
7	980000955	LIGHT POSITION BULB	980000955 LIGHT POSITION BULB	-	2	Enquire
8	383100114	RH FOG LAMP	383100114 RH FOG LAMP	-	1	Enquire
8	383100115	LH FOG LAMP	383100115 LH FOG LAMP	-	1	Enquire
9	383100127	SIDE DIRECTION SMALL LAMP	383100127 SIDE DIRECTION SMALL LAMP	-	2	Enquire
10	386100126	RH BRACKET TO SECURE HEADLAMP ASSY	386100126 RH BRACKET TO SECURE HEADLAMP ASSY	-	1	Enquire
10	386100125	LH BRACKET TO SECURE HEADLAMP ASSY	386100125 LH BRACKET TO SECURE HEADLAMP ASSY	-	1	Enquire
11	980001160	LIGHT POSITION BULB	980001160 LIGHT POSITION BULB	-	2	Enquire
12	10872624	SCREW	10872624 SCREW	-	2	Enquire
13	383100160	FRONT LIGHT ASSY CENTRE BRACKET	383100160 FRONT LIGHT ASSY CENTRE BRACKET	-	2	Enquire
14	383100161	REAR BRACKET	383100161 REAR BRACKET	-	2	Enquire
15	11730626	SCREW	11730626 SCREW	-	4	Enquire
16	12582474	SPRING LOCK WASHER	12582474 SPRING LOCK WASHER	-	4	Enquire
17	383100312	FRONT BRACKET	383100312 FRONT BRACKET	-	2	Enquire
18	10523401	WASHER	10523401 WASHER	-	4	Enquire
19	14054577	NUT	14054577 NUT	-	4	Enquire
20	11730924	SCREW	11730924 SCREW	-	4	Enquire
21	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5	-	2	Enquire
22	13046114	NUT	13046114 NUT	-	2	Enquire
23	980001141	CAP	980001141 CAP	-	4	Enquire
