Name: ELECTRICAL SYSTEM: BOOT AND RH SIDE HARNESS
Rating: 4.3 (1 reviews)

ELECTRICAL SYSTEM: BOOT AND RH SIDE HARNESS of Maserati Maserati 3200 GT / Assetto Corsa

View All

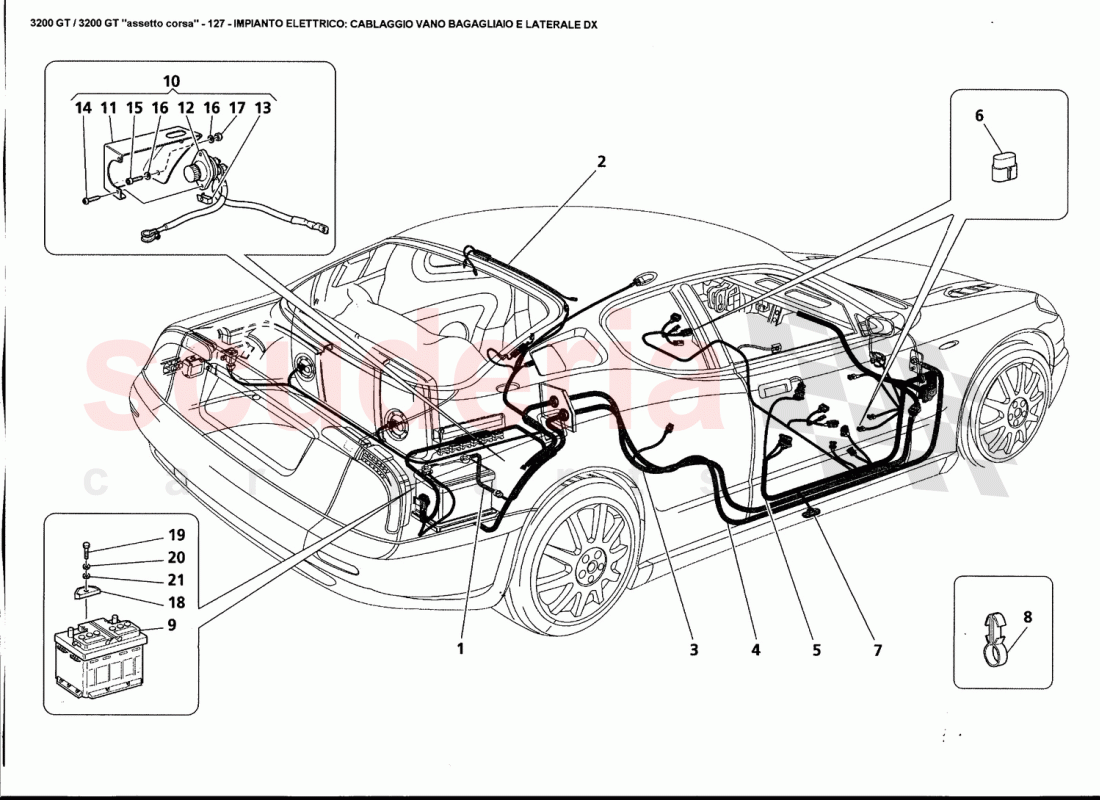

Maserati 3200 GT / Assetto Corsa - ELECTRICAL SYSTEM: BOOT AND RH SIDE HARNESS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	383000150	BATTERY NEGATIVE CABLE	$17.30	To Order

Photo	Part No	Description	Price (each)	Stock
	383000157	HEATED REAR WINDOW NEGATIVE CABLE	$2.72	To Order

Photo	Part No	Description	Price (each)	Stock
	383000115	LENGTHWISE WIRING FOR OPT CD	$562.86	To Order
	383001120	LENGTHWISE WIRING	$320.86	To Order
	383000120	LENGTHWISE WIRING FOR OPT BECKER CD	$465.34	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	383010149	BATTERY POSITIVE CABLE	$110.25	To Order
	383000149	BATTERY POSITIVE CABLE	$90.84	To Order

Photo	Part No	Description	Price (each)	Stock
	383000132	PASSENGER DOOR WIRING	$140.03	To Order
	383000130	PASSENGER DOOR WIRING	$906.60	To Order
	383000110	PASSENGER DOOR WIRING	$170.44	To Order

Photo	Part No	Description	Price (each)	Stock
	980000983	DIAGNOSTIC SOCKET CAP	$4.22	To Order

Photo	Part No	Description	Price (each)	Stock
	60608165	DOME LIGHT	$16.81	To Order

Photo	Part No	Description	Price (each)	Stock
	53471340	CLIP	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	980139930	BATTERY	$272.27	To Order

Photo	Part No	Description	Price (each)	Stock
	383000102	BATTERY CUT OUT KIT	$176.22	To Order

Photo	Part No	Description	Price (each)	Stock
	553001314	BRACKET	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	16043436	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163020080	WASHER	$1.97	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	383000150	BATTERY NEGATIVE CABLE	383000150 BATTERY NEGATIVE CABLE Valid till Ass. Nr.3844 for GS / Valid till Ass. Nr.3836 for GD	$17.30	1
2	383000157	HEATED REAR WINDOW NEGATIVE CABLE	383000157 HEATED REAR WINDOW NEGATIVE CABLE	$2.72	1
3	383000115	LENGTHWISE WIRING FOR OPT CD	383000115 LENGTHWISE WIRING FOR OPT CD Standard / Only for GS till Ass.Nr. 1833	$562.86	1
3	383001120	LENGTHWISE WIRING	383001120 LENGTHWISE WIRING Standard / Valid for GS from Ass.Nr. 1834 till Ass.Nr.3809 / Valid for GD from the first car till Ass.Nr.3809	$320.86	1
3	383000120	LENGTHWISE WIRING FOR OPT BECKER CD	383000120 LENGTHWISE WIRING FOR OPT BECKER CD Optional / Valid for GS from Ass.Nr. 1834 till Ass.Nr.3809 / Valid for GD from the first car till Ass.Nr.3809	$465.34	1
3	383000162	BASIC LENGTHWISE WIRING	383000162 BASIC LENGTHWISE WIRING Standard / Valid for GS and Gd from Ass.Nr.3810	$302.19	1
3	383000163	LENGTHWISE WIRING FOR OPT BECKER CD	383000163 LENGTHWISE WIRING FOR OPT BECKER CD Optional / Valid for GS and Gd from Ass.Nr.3810	$469.31	1
3	383000164	LENGTHWISE WIRING FOR OPT BLAUPUNKT CD	383000164 LENGTHWISE WIRING FOR OPT BLAUPUNKT CD Optional / Valid for GS and Gd from Ass.Nr.3810	$2,112.16	1
3	383000167	LENGTHWISE WIRING	383000167 LENGTHWISE WIRING Optional / Hl Fl System	$530.86	1
4	383010149	BATTERY POSITIVE CABLE	383010149 BATTERY POSITIVE CABLE Only GD	$110.25	1
4	383000149	BATTERY POSITIVE CABLE	383000149 BATTERY POSITIVE CABLE Only GS	$90.84	1
5	383000132	PASSENGER DOOR WIRING	383000132 PASSENGER DOOR WIRING Valid for GS and GD from Ass.Nr.3601	$140.03	1
5	383000130	PASSENGER DOOR WIRING	383000130 PASSENGER DOOR WIRING Valid for GS from Ass.Nr. 1834 till Ass.Nr.3600 / Valid for GD from the first car till Ass.Nr.3600	$906.60	1
5	383000110	PASSENGER DOOR WIRING	383000110 PASSENGER DOOR WIRING Valid only for GS till Ass.Nr.1833	$170.44	1
6	980000983	DIAGNOSTIC SOCKET CAP	980000983 DIAGNOSTIC SOCKET CAP	$4.22	2
7	60608165	DOME LIGHT	60608165 DOME LIGHT	$16.81	1
8	53471340	CLIP	53471340 CLIP	$1.97	11
9	980139930	BATTERY	980139930 BATTERY	$272.27	1
10	383000102	BATTERY CUT OUT KIT	383000102 BATTERY CUT OUT KIT	$176.22	1
11	980001700	BATTERY CUT OUT BRACKET	980001700 BATTERY CUT OUT BRACKET	$70.15	1
12	383000322	COMPLETE CUT-OUT SWITCH	383000322 COMPLETE CUT-OUT SWITCH	$274.28	1
13	61067800	BRACKET	61067800 BRACKET	$1.97	2
14	15689807	SCREW	15689807 SCREW	$1.97	2
15	231617	SCREW M6 X 18	231617 SCREW M6 X 18	$2.92	2
16	102210	WASHER	102210 WASHER	-	2	Enquire
17	14039614	NUT	14039614 NUT	$1.54	2
18	553001314	BRACKET	553001314 BRACKET	$2.83	1
19	16043436	SCREW	16043436 SCREW	-	1	Enquire
20	84653800	WASHER	84653800 WASHER	-	1	Enquire
21	163020080	WASHER	163020080 WASHER	$1.97	1
