ELECTRICAL SYSTEM: ENGINE COMPARTMENT HARNESS

Find Your Part

Maserati 3200 GT / Assetto Corsa - ELECTRICAL SYSTEM: ENGINE COMPARTMENT HARNESS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
137836 TRANSVERSAL ACCELERATION SENSOR $536.17 To Order
Photo Part No Description Price (each) Stock
154310 FILTRATE ACCELEROMETER $1,314.77 To Order
Photo Part No Description Price (each) Stock
383000143 ENGINE COMPARTMENT WIRING $504.05 To Order
383000144 ENGINE COMPARTMENT WIRING $495.99 To Order
383000169 ENGINE COMPARTMENT WIRING $604.41 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
193125 LOW TONE ELECTRO-MAGNETIC HORN $31.41 To Order
193124 HIGH TONE ELECTRO-MAGNETIC HORN $31.41 To Order
Photo Part No Description Price (each) Stock
383700138 RELAIS 50 A FOR SECONDARY PUMP $7.81 To Order
Photo Part No Description Price (each) Stock
10402390 50A LAMELLAR FUSE $24.79 To Order
Photo Part No Description Price (each) Stock
980001900 BOX FOR FUSE $0.64 To Order
Photo Part No Description Price (each) Stock
138799 BRACKET $19.62 To Order
Photo Part No Description Price (each) Stock
13283711 SCREW $2.39 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $1.97 To Order
Photo Part No Description Price (each) Stock
386100152 BRACKET $162.01 To Order
Photo Part No Description Price (each) Stock
11730624 SCREW $2.83 To Order
Photo Part No Description Price (each) Stock
60616507 COVER $4.07 To Order
Photo Part No Description Price (each) Stock
14084417 NUT $1.97 To Order
Photo Part No Description Price (each) Stock
14054577 NUT Enquire To Order
Photo Part No Description Price (each) Stock
393050342 BODY WITH COUPLINGS $18.19 To Order
Photo Part No Description Price (each) Stock
393050343 GASKET $2.83 To Order
Photo Part No Description Price (each) Stock
393050341 INSULATING BODY $3.81 To Order
Photo Part No Description Price (each) Stock
393050344 CONNECTION ELEMENT $3.20 To Order
View All

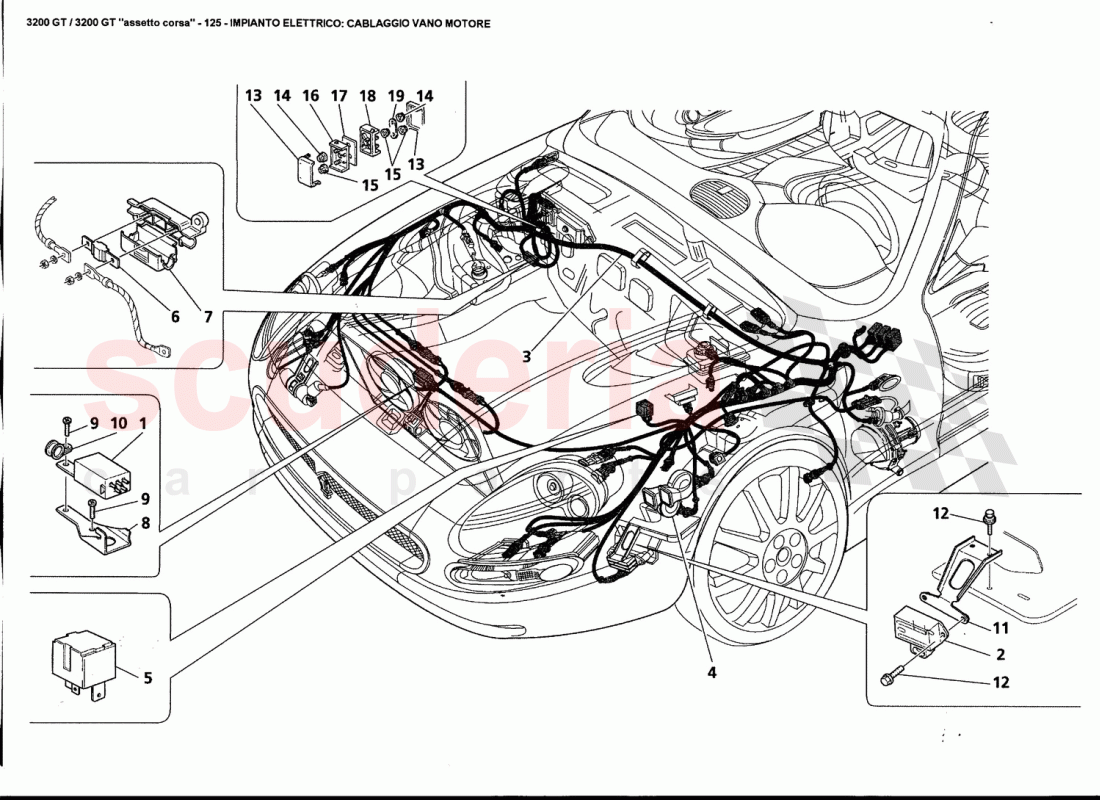

ELECTRICAL SYSTEM: ENGINE COMPARTMENT HARNESS of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 137836
TRANSVERSAL ACCELERATION SENSOR 		$536.17 1
2 154310
FILTRATE ACCELEROMETER 		$1,314.77 1
3 383000143
ENGINE COMPARTMENT WIRING
Only GS till Ass.Nr. 1833 		$504.05 1
3 383000144
ENGINE COMPARTMENT WIRING
Only GS from Ass.Nr1834 till Ass.Nr.4451 		$495.99 1
3 383000169
ENGINE COMPARTMENT WIRING
Only GS from Ass. Nr.4452 		$604.41 1
3 383010143
ENGINE COMPARTMENT WIRING
Only GD till Ass. Nr.4451 		$2,072.13 1
3 383010169
ENGINE COMPARTMENT WIRING
Only GD from Ass. Nr.4452 		$577.69 1
4 193125
LOW TONE ELECTRO-MAGNETIC HORN 		$31.41 1
4 193124
HIGH TONE ELECTRO-MAGNETIC HORN 		$31.41 1
5 383700138
RELAIS 50 A FOR SECONDARY PUMP 		$7.81 1
6 10402390
50A LAMELLAR FUSE 		$24.79 1
7 980001900
BOX FOR FUSE 		$0.64 1
8 138799
BRACKET 		$19.62 1
9 13283711
SCREW 		$2.39 2
10 10441390
BRACKET WITH SHEATH 		$1.97 1
11 386100152
BRACKET 		$162.01 1
12 11730624
SCREW 		$2.83 4
13 60616507
COVER 		$4.07 2
14 14084417
NUT 		$1.97 2
15 14054577
NUT 		- 3 Enquire
16 393050342
BODY WITH COUPLINGS 		$18.19 1
17 393050343
GASKET 		$2.83 1
18 393050341
INSULATING BODY 		$3.81 1
19 393050344
CONNECTION ELEMENT 		$3.20 1
