Name: WINDSCREEN WASHER
Rating: 4.2 (1 reviews)

View All

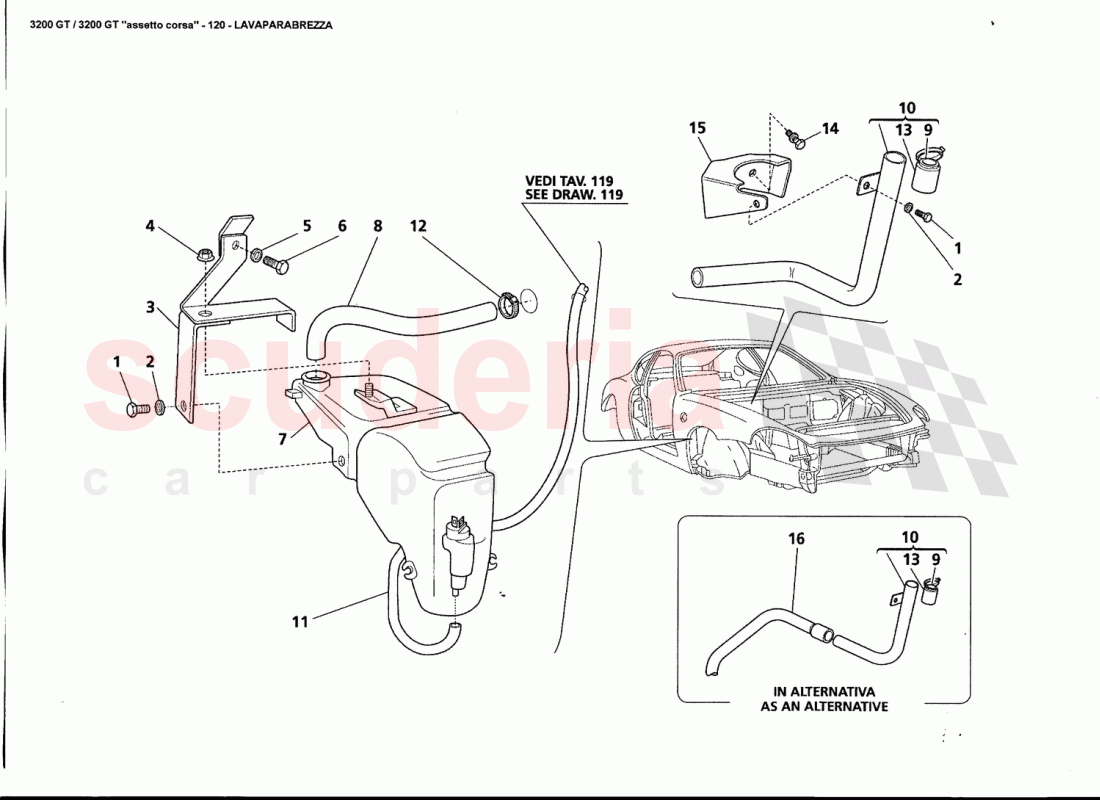

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW M5 X 14	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	388100110	WIPER FLUID RESERVOIR MOVABLE BRACKET	$14.93	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	13578305	BLANK WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	388100171	COMPLETE WIPER FLUID RESERVOIR	$69.09	To Order

Photo	Part No	Description	Price (each)	Stock
	384000318	UNION FOR WIPER RESERVOIR	$487.93	To Order

Photo	Part No	Description	Price (each)	Stock
	980000973	FILTER	$7.61	To Order

Photo	Part No	Description	Price (each)	Stock
	388100170	COMPLETE UPPER INLET TUBE	$78.78	To Order

Photo	Part No	Description	Price (each)	Stock
	388100450	RESERVOIR WATER DRAINAGE HOSE	$19.71	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	SCREW COLLAR	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	980000972	PLUG	$10.86	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	388100110	WIPER FLUID RESERVOIR MOVABLE BRACKET	$14.93	To Order

Photo	Part No	Description	Price (each)	Stock
	374030318	RUBBER HOSE	$77.77	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	10977724	SCREW M5 X 14	10977724 SCREW M5 X 14	$2.00	2
2	12638124	WASHER	12638124 WASHER	$1.55	2
3	388100110	WIPER FLUID RESERVOIR MOVABLE BRACKET	388100110 WIPER FLUID RESERVOIR MOVABLE BRACKET	$14.93	1
4	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25	$1.48	2
5	13578305	BLANK WASHER	13578305 BLANK WASHER	$1.97	1
6	16043124	SCREW M8 X 14	16043124 SCREW M8 X 14	$2.05	1
7	388100171	COMPLETE WIPER FLUID RESERVOIR	388100171 COMPLETE WIPER FLUID RESERVOIR	$69.09	1
8	384000318	UNION FOR WIPER RESERVOIR	384000318 UNION FOR WIPER RESERVOIR	$487.93	1
9	980000973	FILTER	980000973 FILTER	$7.61	1
10	388100170	COMPLETE UPPER INLET TUBE	388100170 COMPLETE UPPER INLET TUBE	$78.78	1
11	388100450	RESERVOIR WATER DRAINAGE HOSE	388100450 RESERVOIR WATER DRAINAGE HOSE	$19.71	2
12	13000490	SCREW COLLAR	13000490 SCREW COLLAR	$1.97	1
13	980000972	PLUG	980000972 PLUG	$10.86	1
14	11730624	SCREW	11730624 SCREW	$2.83	2
15	388100110	WIPER FLUID RESERVOIR MOVABLE BRACKET	388100110 WIPER FLUID RESERVOIR MOVABLE BRACKET	$14.93	1
16	374030318	RUBBER HOSE	374030318 RUBBER HOSE As an alternative	$77.77	1
