Electrical System: Dashboard Control Units

Maserati 3200 GT / Assetto Corsa

Find Your Part

Maserati 3200 GT / Assetto Corsa - ELECTRICAL SYSTEM: DASHBOARD CONTROL UNITS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
382905110 AUTOM.GEARBOX CONTROL UNIT Enquire To Order
Photo Part No Description Price (each) Stock
382905115 BRACKET FOR AT. CONTROL UNIT Enquire To Order
Photo Part No Description Price (each) Stock
383300211 CAN INTERFACE FOR SPORT INSTRUMENT Enquire To Order
383305212 CAN INTERFACE FOR SPORT INSTRUMENT Enquire To Order
383301211 CAN INTERFACE FOR NO SPORT INSTRUMENT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
224420 ROOF LIGHT TIMER Enquire To Order
Photo Part No Description Price (each) Stock
209472 AIR CONDITIONING ECU Enquire To Order
Photo Part No Description Price (each) Stock
192673 POWER WINDOW ECU Enquire To Order
383300151 WINDOW RISER ELECTRONIC CONTROL UNIT Enquire To Order
Photo Part No Description Price (each) Stock
383300193 DOOR LOCKING CONTROL UNIT Enquire To Order
184391 LOCK/UNLOCK DOORS MODULE Enquire To Order
Photo Part No Description Price (each) Stock
980001026 7.1 ELECTRONIC INJECTION. CONTROL UNIT Enquire To Order
383700137 4EM ELECTRONIC INJECTION. CONTROL UNIT Enquire To Order
383740100 7.1 ELECTRONIC INJECTION. CONTROL UNIT Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
980138147 MICRO-RELAY Enquire To Order
Photo Part No Description Price (each) Stock
313320134 RELAY 12V NORM.OPEN 30A Enquire To Order
Photo Part No Description Price (each) Stock
980000983 DIAGNOSTIC SOCKET CAP Enquire To Order
Photo Part No Description Price (each) Stock
383100155 IGE ELECTRONIC MODULE Enquire To Order
Photo Part No Description Price (each) Stock
46467695 PASSENGER COMPARTMENT JUNCTION BOX Enquire To Order
Photo Part No Description Price (each) Stock
383300167 AIR-BAG CONTROL UNIT Enquire To Order
Photo Part No Description Price (each) Stock
383300184 CATALYST TEMPERATURE CONTROL UNIT Enquire To Order
383300174 CATALYST TEMPERATURE CONTROL UNIT Enquire To Order
Photo Part No Description Price (each) Stock
7606542 RELAIS 50 A Enquire To Order
Photo Part No Description Price (each) Stock
388110433 COVER Enquire To Order
388100433 COVER Enquire To Order
Photo Part No Description Price (each) Stock
388100426 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
15963307 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14498801 Washer Enquire To Order
Photo Part No Description Price (each) Stock
14372271 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
7601700 DIODE Enquire To Order
Photo Part No Description Price (each) Stock
388105482 CONTROL UNIT GUARD Enquire To Order
Photo Part No Description Price (each) Stock
13274077 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12637807 Washer Enquire To Order
Photo Part No Description Price (each) Stock
386100524 BRACKET FOR ELETTRONIC CONTROL UNIT Enquire To Order
Photo Part No Description Price (each) Stock
386100388 GUARD FOR WATER Enquire To Order
Photo Part No Description Price (each) Stock
14417527 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12639901 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
980001017 STANDARD DIAGNOSIS SOCKET Enquire To Order
View All

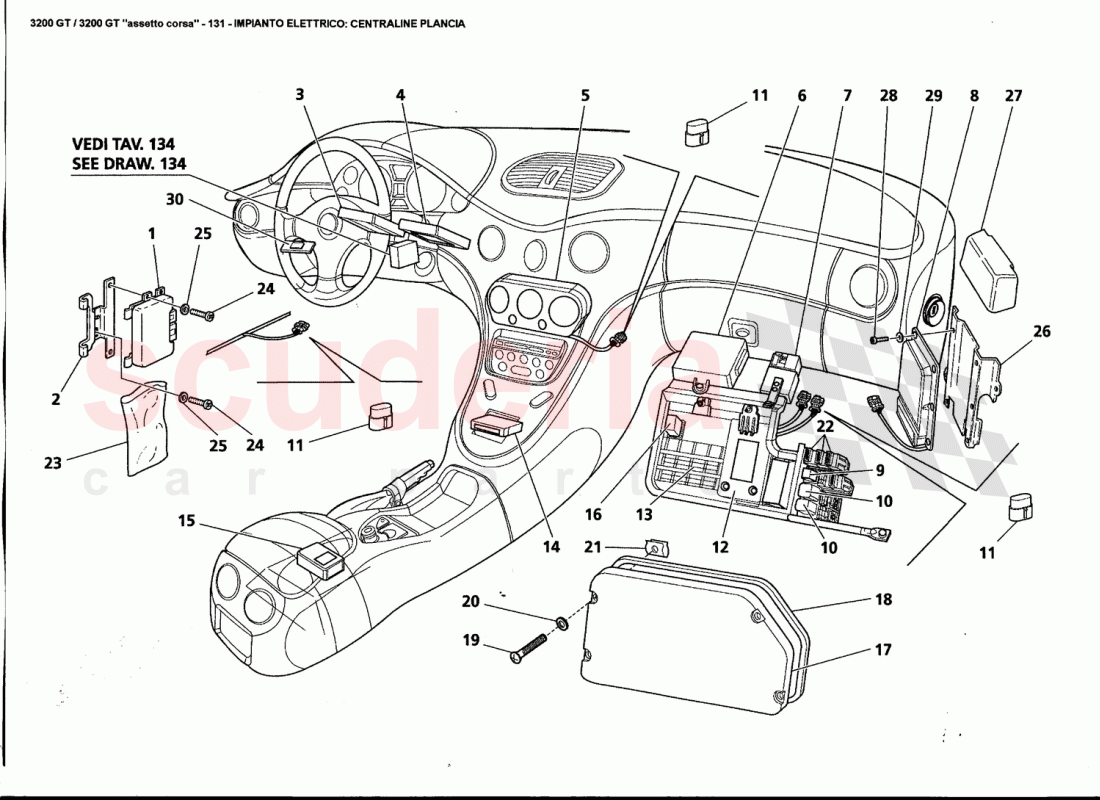

ELECTRICAL SYSTEM: DASHBOARD CONTROL UNITS of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 382905110
AUTOM.GEARBOX CONTROL UNIT
Valid for Automatic Trasmission 		- 1 Enquire
2 382905115
BRACKET FOR AT. CONTROL UNIT
Valid for Automatic Trasmission. 		- 1 Enquire
3 383300211
CAN INTERFACE FOR SPORT INSTRUMENT
Valid for Manual Trasmission 		- 1 Enquire
3 383305212
CAN INTERFACE FOR SPORT INSTRUMENT
Valid for Automatic Trasmission 		- 1 Enquire
3 383301211
CAN INTERFACE FOR NO SPORT INSTRUMENT
Valid for Manual Trasmission 		- 1 Enquire
3 383305211
CAN INTERFACE FOR NO SPORT INSTRUMENT
Valid for Automatic Trasmission 		- 1 Enquire
4 224420
ROOF LIGHT TIMER 		- 1 Enquire
5 209472
AIR CONDITIONING ECU 		- 1 Enquire
6 192673
POWER WINDOW ECU
Valid from Ass.Nr. 1834 		- 1 Enquire
6 383300151
WINDOW RISER ELECTRONIC CONTROL UNIT
Valid till Ass.Nr. 1833 		- 1 Enquire
7 383300193
DOOR LOCKING CONTROL UNIT
Valid till Ass.Nr. 1833 		- 1 Enquire
7 184391
LOCK/UNLOCK DOORS MODULE
Valid from Ass.Nr. 1834 		- 1 Enquire
8 980001026
7.1 ELECTRONIC INJECTION. CONTROL UNIT
Valid for Manual Trasmission / Not for BRA-Valid for GOL.J and AUS all cars / Valid for GS (excluded GOL and J) till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for GD (excluded AUS) till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 		- 1 Enquire
8 383700137
4EM ELECTRONIC INJECTION. CONTROL UNIT
Valid for Manual Trasmission / Not for BRA,GOL,J and AUS / Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		- 1 Enquire
8 383740100
7.1 ELECTRONIC INJECTION. CONTROL UNIT
Valid for Manual Trasmission / Only for Barsil 		- 1 Enquire
8 980001027
7.1 ELECTRONIC INJECTION. CONTROL UNIT
Valid for Automatic Trasmission / Not for BRA-Valid for GOL,J and AUS all cars / Valid for GS (excluded GOL and j) till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for GD (excluded AUS) till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 		- 1 Enquire
8 383705137
4EM ELECTRONIC INJECTION. CONTROL UNIT
Valid for Automatic Trasmission / Not for BRA,GOL,J and AUS / Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		- 1 Enquire
8 383745100
7.1 ELECTRONIC INJECTION. CONTROL UNIT
Valid for Automatic Trasmission / Only for Barsil 		- 1 Enquire
8 980000990
6.9 ELECTRONIC INJECTION. CONTROL UNIT
Valid for Manual Trasmission 		- 1 Enquire
8 980000991
6.9 ELECTRONIC INJECTION. CONTROL UNIT
Valid for Automatic Trasmission 		- 1 Enquire
9 980138147
MICRO-RELAY 		- 1 Enquire
10 313320134
RELAY 12V NORM.OPEN 30A 		- 2 Enquire
11 980000983
DIAGNOSTIC SOCKET CAP 		- 3 Enquire
12 383100155
IGE ELECTRONIC MODULE 		- 1 Enquire
13 46467695
PASSENGER COMPARTMENT JUNCTION BOX 		- 1 Enquire
14 383300167
AIR-BAG CONTROL UNIT 		- 1 Enquire
15 383300184
CATALYST TEMPERATURE CONTROL UNIT
Valid from Ass. Nr.3275 		- 1 Enquire
15 383300174
CATALYST TEMPERATURE CONTROL UNIT
Valid till Ass. Nr.3274 		- 1 Enquire
16 7606542
RELAIS 50 A 		- 1 Enquire
17 388110433
COVER
Only GD 		- 1 Enquire
17 388100433
COVER
Only GS / Valid till Ass.Nr.4337 / See table 149 for cover from Ass.Nr.4338 		- 1 Enquire
18 388100426
GASKET 		- 1 Enquire
19 15963307
SCREW 		- 4 Enquire
20 14498801
Washer 		- 4 Enquire
21 14372271
BRACKET 		- 4 Enquire
22 7601700
DIODE 		- 3 Enquire
23 388105482
CONTROL UNIT GUARD
Valid for A.C. 		- 1 Enquire
24 13274077
SCREW
Valid for A.C. 		- 4 Enquire
25 12637807
Washer
Valid for A.C. 		- 4 Enquire
26 386100524
BRACKET FOR ELETTRONIC CONTROL UNIT 		- 1 Enquire
27 386100388
GUARD FOR WATER 		- 1 Enquire
28 14417527
SCREW 		- 6 Enquire
29 12639901
WASHER 		- 6 Enquire
30 980001017
STANDARD DIAGNOSIS SOCKET 		- 1 Enquire
