ELECTRICAL SYSTEM: ENGINE HARNESS of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - ELECTRICAL SYSTEM: ENGINE HARNESS

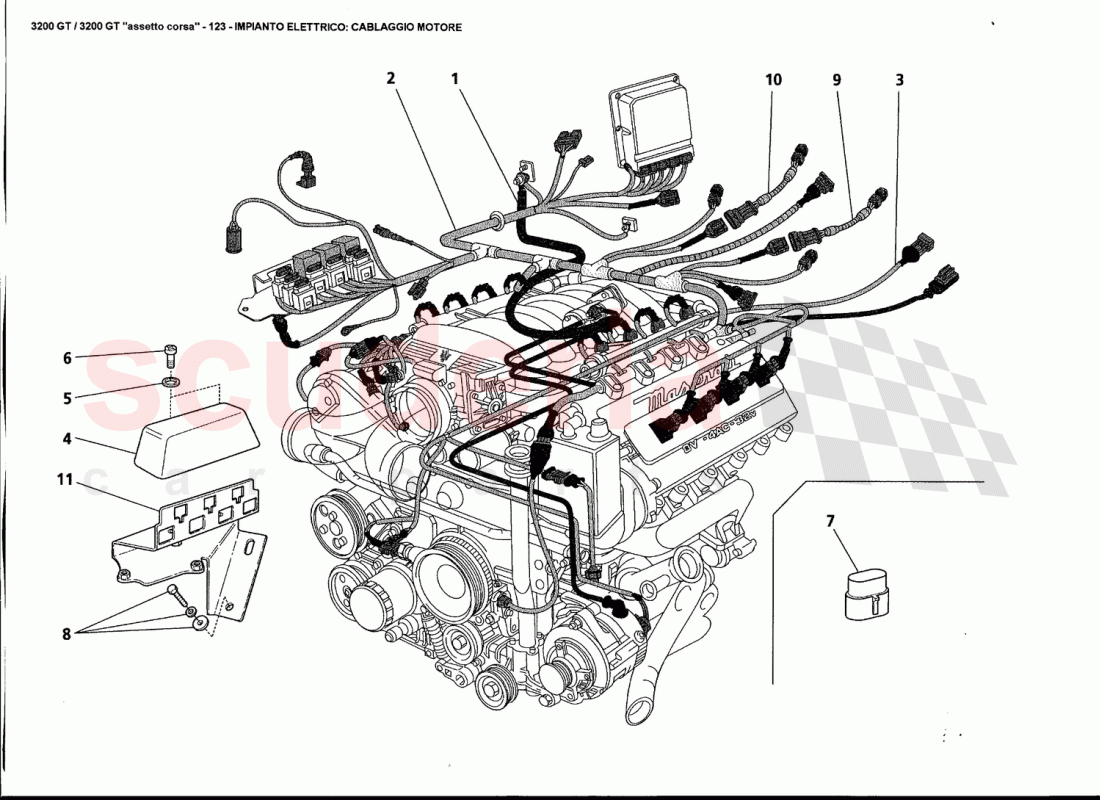

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	383010153	ALTERNATOR AND STARTING MOTOR WIRING	$79.26	To Order
	383000153	ALTERNATOR AND STARTING MOTOR WIRING	$266.17	To Order

Photo	Part No	Description	Price (each)	Stock
	383700168	ELECTRONIC INJECTION WIRING	$2,619.39	To Order
	383700136	ELECTRONIC INJECTION WIRING	$2,619.39	To Order
	383700106	ELECTRONIC INJECTION WIRING	$1,305.76	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	383000123	ENGINE WIRING	$648.15	To Order

Photo	Part No	Description	Price (each)	Stock
	384300378	COVER	$24.70	To Order

Photo	Part No	Description	Price (each)	Stock
	14496400	SPRING WASHER	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	13276177	SCREW	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	980000983	DIAGNOSTIC SOCKET CAP	$4.26	To Order

Photo	Part No	Description	Price (each)	Stock
	11730624	SCREW	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	383000173	LH LAMBDA FEELER CABLE	$19.73	To Order

Photo	Part No	Description	Price (each)	Stock
	383000174	RH LAMBDA FEELER CABLE	$18.75	To Order

Photo	Part No	Description	Price (each)	Stock
	383700112	RELAY BRACKET	$223.67	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	383010153	ALTERNATOR AND STARTING MOTOR WIRING	383010153 ALTERNATOR AND STARTING MOTOR WIRING Only GD	$79.26	1
1	383000153	ALTERNATOR AND STARTING MOTOR WIRING	383000153 ALTERNATOR AND STARTING MOTOR WIRING Only GS	$266.17	1
2	383700168	ELECTRONIC INJECTION WIRING	383700168 ELECTRONIC INJECTION WIRING Valid from Ass. Nr.4452	$2,619.39	1
2	383700136	ELECTRONIC INJECTION WIRING	383700136 ELECTRONIC INJECTION WIRING Valid from Ass. Nr.3810 to Ass. Nr.4451	$2,619.39	1
2	383700106	ELECTRONIC INJECTION WIRING	383700106 ELECTRONIC INJECTION WIRING Valid from Ass.Nr. 1834 till Ass.Nr.3809	$1,305.76	1
2	383700105	ELECTRONIC INJECTION WIRING	383700105 ELECTRONIC INJECTION WIRING Valid till Ass.Nr. 1833	$835.89	1
3	383000123	ENGINE WIRING	383000123 ENGINE WIRING	$648.15	1
4	384300378	COVER	384300378 COVER	$24.70	1
5	14496400	SPRING WASHER	14496400 SPRING WASHER	$1.57	2
6	13276177	SCREW	13276177 SCREW	$2.42	2
7	980000983	DIAGNOSTIC SOCKET CAP	980000983 DIAGNOSTIC SOCKET CAP	$4.26	1
8	11730624	SCREW	11730624 SCREW	$2.84	2
9	383000173	LH LAMBDA FEELER CABLE	383000173 LH LAMBDA FEELER CABLE Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454	$19.73	1
10	383000174	RH LAMBDA FEELER CABLE	383000174 RH LAMBDA FEELER CABLE Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454	$18.75	1
11	383700112	RELAY BRACKET	383700112 RELAY BRACKET	$223.67	1
