Lamborghini Murcielago LP670 - E-gear Control Pedal

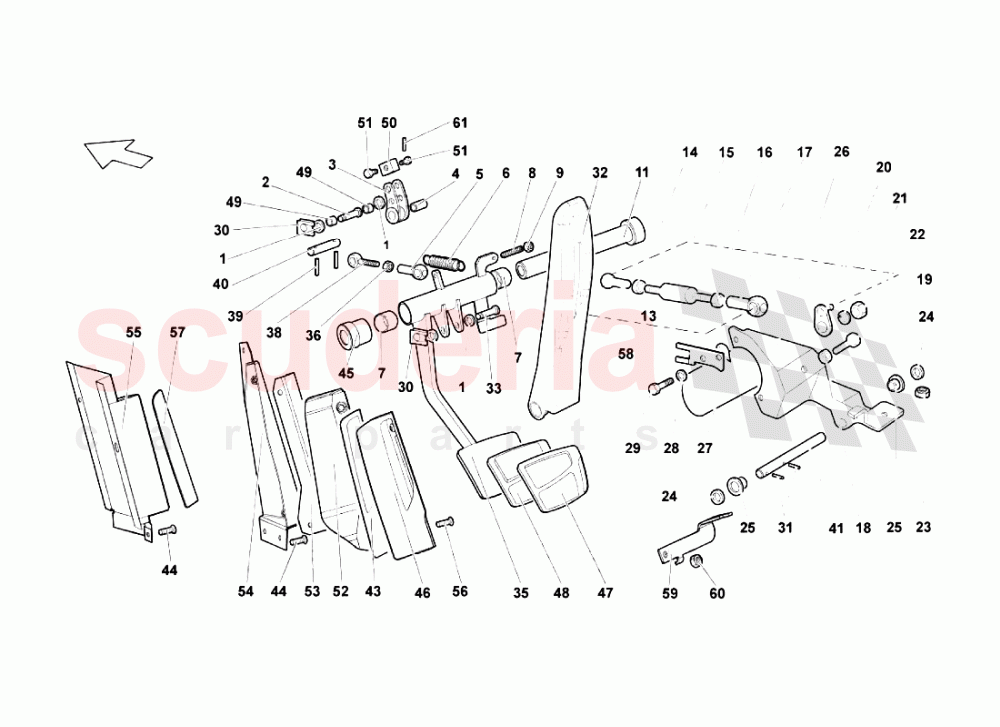

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N1152722	WASHER 10,5X21X2	N1152722 WASHER 10,5X21X2	-	4	Enquire
002	410721966	JOURNAL	410721966 JOURNAL	$200.96	1
003	410721385	LEVER	410721385 LEVER	$115.84	1
004	410721164A	BUSHING	410721164A BUSHING	$13.10	1
005	410721993	BALL JOINT COUPLING	410721993 BALL JOINT COUPLING	$75.68	1
006	410721363	SPRING	410721363 SPRING	$174.74	1
007	410721443	BUSHING	410721443 BUSHING	$240.62	2
008	410721671	ADJUSTING SLEEVE	410721671 ADJUSTING SLEEVE	$23.99	1
009	N1100637	NUT M6	N1100637 NUT M6	-	1	Enquire
011	414721325A	JOURNAL	414721325A JOURNAL	$309.15	1
013	400721214E	BALL JOINT HEAD (LEFT HAND THREAD)	400721214E BALL JOINT HEAD (LEFT HAND THREAD)	$63.44	1
014	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD)	$526.87	1
015	400721743A	SHAFT	400721743A SHAFT	$39.92	1
016	N10689901	NUT M5	N10689901 NUT M5	$0.07 MSRP: ~~7.38~~ (99.1% off)	1
017	400721214D	BALL JOINT HEAD	400721214D BALL JOINT HEAD	$43.41	1
018	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	1	Enquire
019	N1033520	SCREW M8X35	N1033520 SCREW M8X35	-	1	Enquire
020	400721728C	LEVER	400721728C LEVER	$213.04	1
022	N2300212	NUT M6	N2300212 NUT M6	-	1	Enquire
023	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	$0.37	2
024	WHT000697	WASHER	WHT000697 WASHER	$0.98 MSRP: ~~7.24~~ (86.5% off)	2
025	410721543	BUSHING	410721543 BUSHING	$31.25	2
026	400721651A	SUPPORT	400721651A SUPPORT	$156.58	1
027	400907475A	POTENTIOMETER	400907475A POTENTIOMETER	$1,848.13	1
028	N115578	WASHER 6X12X1	N115578 WASHER 6X12X1	-	2	Enquire
029	N10546402	HEXAGON SOCKET HEAD BOLT	N10546402 HEXAGON SOCKET HEAD BOLT	$0.74 MSRP: ~~7.30~~ (89.9% off)	2
030	N126483	CLIP	N126483 CLIP	-	2	Enquire
031	N10206801	PIN	N10206801 PIN	$0.67 MSRP: ~~7.29~~ (90.8% off)	2
032	400721507A	ACCELERATOR PEDAL	400721507A ACCELERATOR PEDAL	$2,419.35	1
033	410721147	JOURNAL	410721147 JOURNAL	$284.28	1
035	414721145C	BRAKE PEDAL	414721145C BRAKE PEDAL	$645.17	1
036	N10155210	NUT	N10155210 NUT	$1.96 MSRP: ~~7.24~~ (72.9% off)	1
038	410721645	TIE ROD	410721645 TIE ROD	$80.93	1
039	N133481	SPRING PIN	N133481 SPRING PIN	-	2	Enquire
040	410721965	JOURNAL	410721965 JOURNAL	$29.77	1
041	400721157	JOURNAL	400721157 JOURNAL	$32.81	1
044	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	N90780901 OVAL HEXAGON SOCKET HEAD BOLT	$0.30 MSRP: ~~7.38~~ (95.9% off)	3
045	410723167	SPACER	410723167 SPACER	$70.42	1
047	400721780A	COVER	400721780A COVER	$297.71	1
048	400721174D	CAP FOR FOOT BRAKE PEDAL	400721174D CAP FOR FOOT BRAKE PEDAL	$43.68	1
049	410721134A	BUSHING	410721134A BUSHING	$223.81	2
050	410721255	BLOCK	410721255 BLOCK	$65.94	1
051	410721379	SCREW	410721379 SCREW	$45.45	2
055	414864418A	FOOTREST DRIVER SIDE	414864418A FOOTREST DRIVER SIDE	$182.14	1
056	N10713901	SCREW M6X50	N10713901 SCREW M6X50	$19.76	2
057	410864857	SHIM	410864857 SHIM	$8.56	1
058	410971806	SUPPORT	410971806 SUPPORT	$34.08	1
059	414971362	SUPPORT	414971362 SUPPORT	$56.59	1
060	N1508213	NUT M6	N1508213 NUT M6	-	1	Enquire
061	N133311	PIN 2.0X12.0	N133311 PIN 2.0X12.0	-	2	Enquire
