Gearbox of Lamborghini Lamborghini Murcielago LP670

View All

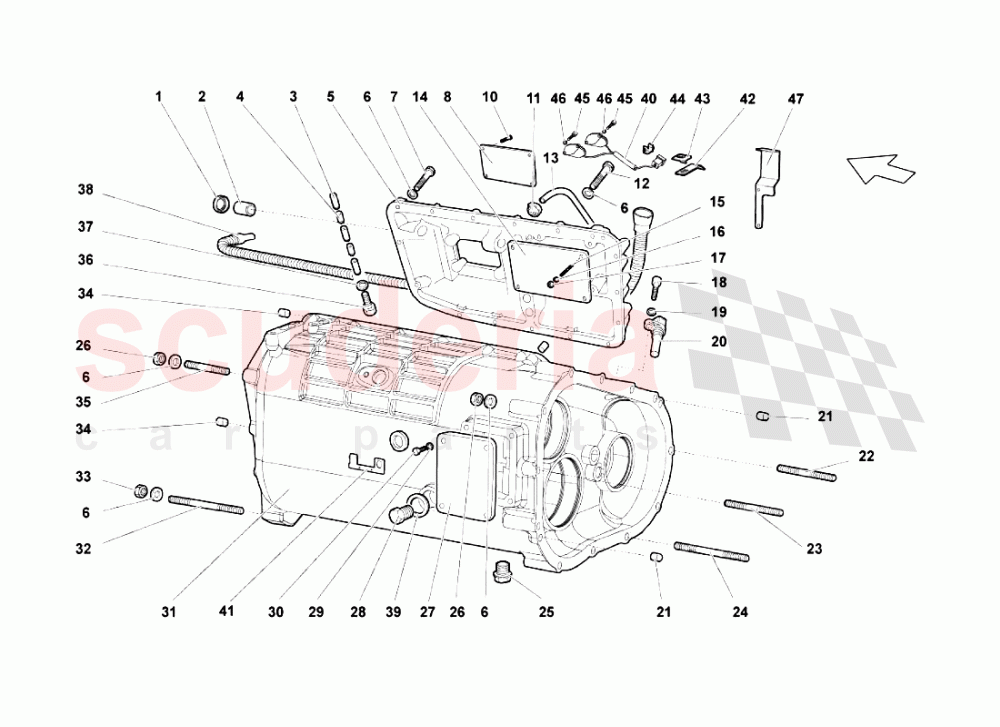

Lamborghini Murcielago LP670 - Gearbox

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	86311520	SEAL RING	86311520 SEAL RING	$20.79	1
002	86311621	BUSHING	86311621 BUSHING	$27.22	1
003	86311281A	PAWL	86311281A PAWL	$45.91	3
004	86311281B	PAWL	86311281B PAWL	$45.91	2
005	86301201B	COVER (MANUAL GEARBOX)	86301201B COVER (MANUAL GEARBOX)	$1,619.60	1
005	86301201C	COVER (E-GEAR)	86301201C COVER (E-GEAR)	$1,391.14	1
006	WHT000771	WASHER	WHT000771 WASHER	$1.19	18
007	N10582103	OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	N10582103 OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	$1.74 MSRP: ~~7.22~~ (75.9% off)	6
008	86301465	COVER (MANUAL GEARBOX)	86301465 COVER (MANUAL GEARBOX)	$105.93	1
008	86301465A	COVER (E-GEAR)	86301465A COVER (E-GEAR)	$61.91	1
010	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	$1.96	4
011	400127217	CLAMP	400127217 CLAMP	$0.40 MSRP: ~~7.33~~ (94.5% off)	1
012	N10700202	ROUND HD. SCREW	N10700202 ROUND HD. SCREW	$1.55 MSRP: ~~7.25~~ (78.6% off)	12
013	86301472	BREATHER PIPE	86301472 BREATHER PIPE	$43.15	1
014	86301827	COVER	86301827 COVER	$59.41	1
015	WHT002943	STUD BOLT M6X12	WHT002943 STUD BOLT M6X12	$15.33	4
016	WHT001197A	WASHER	WHT001197A WASHER	$0.30	4
017	WHT002953	NUT M6	WHT002953 NUT M6	$3.51	4
018	N91084801	HEXAGON SOCKET HEAD BOLT	N91084801 HEXAGON SOCKET HEAD BOLT	$0.83 MSRP: ~~7.29~~ (88.6% off)	2
019	WHT001197A	WASHER	WHT001197A WASHER	$0.30	2
020	86927321	TIMING SENSOR	86927321 TIMING SENSOR	$121.40	2
021	WHT003078	DOWEL	WHT003078 DOWEL	$43.68	2
022	WHT003166	STUD BOLT M8X40	WHT003166 STUD BOLT M8X40	$50.26	1
023	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	$16.60	1
024	WHT002946	STUD BOLT M8X60	WHT002946 STUD BOLT M8X60	$10.96	10
025	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	$26.89	1
026	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	8	Enquire
027	86301173	COVER	86301173 COVER	$105.93	1
028	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	$26.89	1
029	WHT001197A	WASHER	WHT001197A WASHER	$0.30	4
030	N1021626	SCREW M6X18	N1021626 SCREW M6X18	-	4	Enquire
031	86301103F	6-GEAR TRANSMISSION CASE (E-GEAR - MANUAL)	86301103F 6-GEAR TRANSMISSION CASE (E-GEAR - MANUAL)	$4,368.27	1
032	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	$16.60	1
033	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	$2.29 MSRP: ~~7.22~~ (68.3% off)	1
034	WHT003078	DOWEL	WHT003078 DOWEL	$43.68	2
035	WHT003167	STUD BOLT M8X30	WHT003167 STUD BOLT M8X30	$10.49	8
036	N1029315	SCREW M8X16	N1029315 SCREW M8X16	-	1	Enquire
037	N138302	WASHER	N138302 WASHER	-	1	Enquire
038	410971771G	WIRING HARNESS (MANUAL	410971771G WIRING HARNESS (MANUAL	$393.82	1
039	N138271	GASKET	N138271 GASKET	-	1	Enquire
040	86927321A	E-GEAR SENSOR	86927321A E-GEAR SENSOR	$2,768.84	1
041	400326138A	SUPPORT	400326138A SUPPORT	$124.06	1
042	400971890D	BRACKET	400971890D BRACKET	$25.87	1
043	1J0937510A	BRACKET FOR CONNECTOR HOUSING	1J0937510A BRACKET FOR CONNECTOR HOUSING	$4.23	1
044	410868630A	SUPPORT	410868630A SUPPORT	$58.09	2
045	N10662102	Screw M4X12	N10662102 Screw M4X12	$3.24 MSRP: ~~10.05~~ (67.8% off)	4
046	N115557	WASHER	N115557 WASHER	-	4	Enquire
047	86301327A	PROTECTION (E-GEAR)	86301327A PROTECTION (E-GEAR)	$36.56	1
