Lamborghini Murcielago LP670 - Clutch (e-gear)

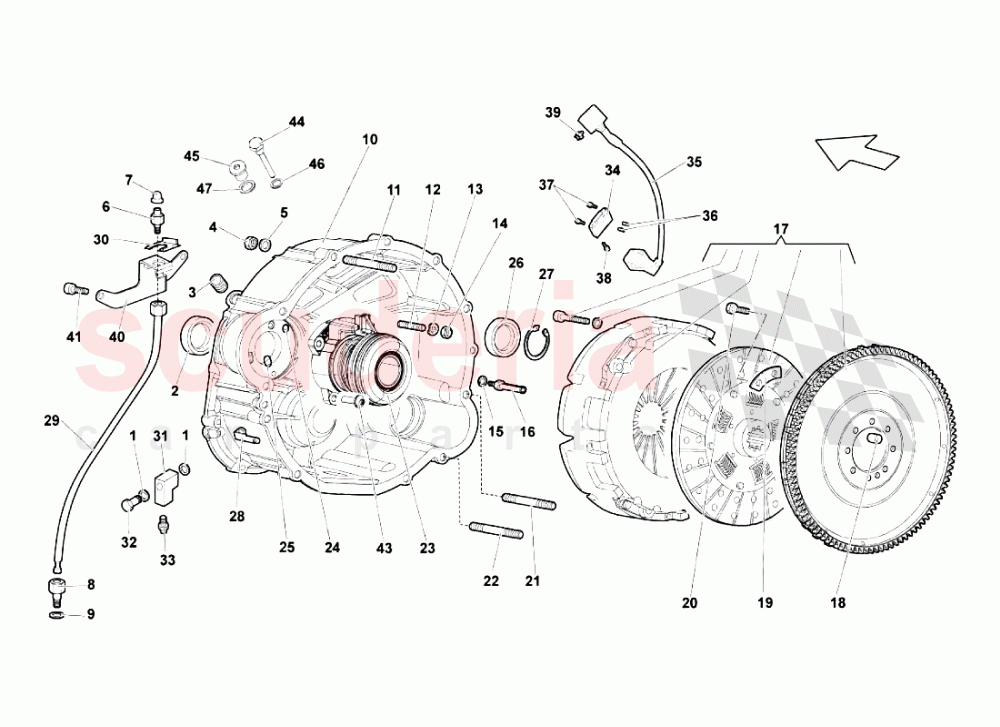

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
004	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	10	Enquire
005	WHT000771	WASHER	WHT000771 WASHER	-	16	Enquire
006	1J0615273	BREATHER VALVE	1J0615273 BREATHER VALVE	-	1	Enquire
007	86301147	DUST CAP	86301147 DUST CAP	-	1	Enquire
008	86323173C	CONNECTION PIECE	86323173C CONNECTION PIECE	-	1	Enquire
009	WHT002219	O-RING	WHT002219 O-RING	-	1	Enquire
010	86323209K	CLUTCH HOUSING	86323209K CLUTCH HOUSING	-	1	Enquire
011	WHT003027	STUD BOLT M8X35	WHT003027 STUD BOLT M8X35	-	11	Enquire
012	WHT002942	STUD BOLT	WHT002942 STUD BOLT	-	3	Enquire
013	WHT003213	WASHER	WHT003213 WASHER	-	3	Enquire
014	N1100637	NUT M6	N1100637 NUT M6	-	2	Enquire
017	7M105269	Balanced Mechanism Clutch	7M105269 Balanced Mechanism Clutch	-	1	Enquire
018	WHT003078	DOWEL	WHT003078 DOWEL	-	1	Enquire
019	410141179	Retaining Plate	410141179 Retaining Plate	-	4	Enquire
020	WHT002951	Hexagon Head Bolt M8x1.25x23	WHT002951 Hexagon Head Bolt M8x1.25x23	-	8	Enquire
021	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	-	2	Enquire
022	WHT003166	STUD BOLT M8X40	WHT003166 STUD BOLT M8X40	-	1	Enquire
023	86141671L	Thrust Bearing	86141671L Thrust Bearing Valid for E-Gear	-	1	Enquire
024	WHT002218	O-RING	WHT002218 O-RING	-	1	Enquire
025	86141131	O-RING	86141131 O-RING	-	1	Enquire
026	86311819	SEAL RING	86311819 SEAL RING	-	1	Enquire
027	WHT003580	SEAL RING	WHT003580 SEAL RING	-	1	Enquire
028	410911085A	BRACKET	410911085A BRACKET	-	1	Enquire
029	86323179A	HYDRAULIC CLUTCH PIPE	86323179A HYDRAULIC CLUTCH PIPE	-	1	Enquire
030	191611715	HOSE BRACKET	191611715 HOSE BRACKET	-	1	Enquire
033	86325274A	CONNECTOR	86325274A CONNECTOR	-	1	Enquire
034	86141305	SUPPORT	86141305 SUPPORT	-	1	Enquire
035	86141297	Clutch Sensor	86141297 Clutch Sensor	-	1	Enquire
036	N10421101	PIN	N10421101 PIN	-	2	Enquire
037	N10295402	SCREW M5X20	N10295402 SCREW M5X20	-	2	Enquire
038	N90659905	SCREW HEX SOCKET M4 X 16	N90659905 SCREW HEX SOCKET M4 X 16	-	2	Enquire
039	410972846	SUPPORT	410972846 SUPPORT	-	2	Enquire
040	86323131A	BRACKET	86323131A BRACKET	-	1	Enquire
041	N91065401	SCREW M8X14	N91065401 SCREW M8X14	-	2	Enquire
043	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT	-	3	Enquire
044	86323961	PLUG	86323961 PLUG	-	1	Enquire
045	N160276	PLUG	N160276 PLUG	-	1	Enquire
046	N138302	WASHER	N138302 WASHER	-	1	Enquire
047	N138494	WASHER	N138494 WASHER	-	1	Enquire
