Lamborghini Murcielago LP670 - Main Shaft

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

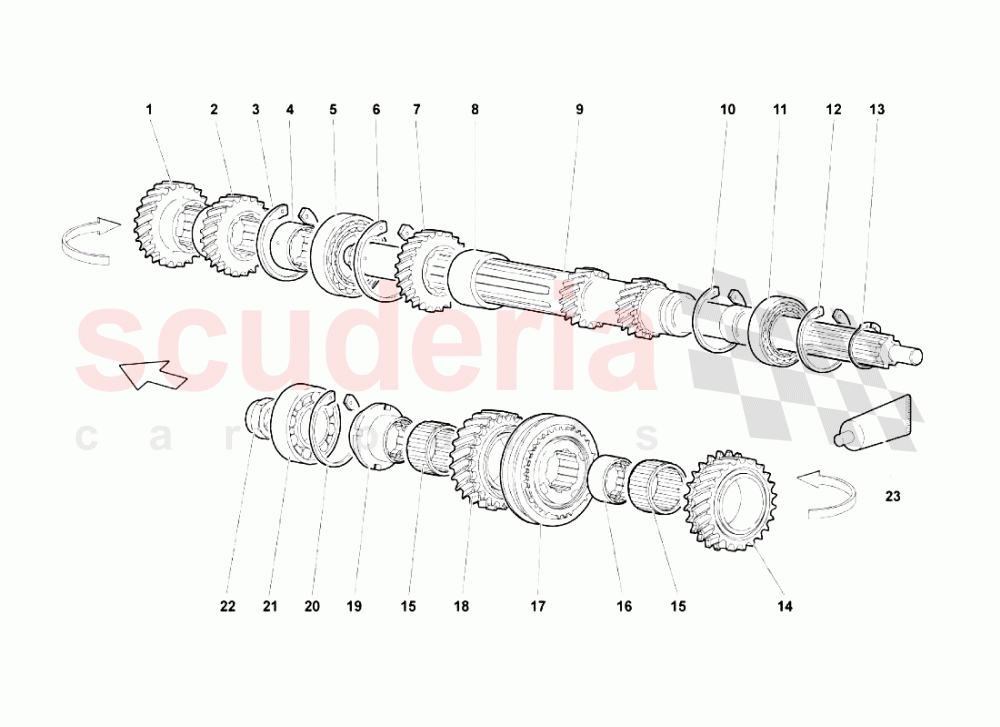

Main Shaft of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 86311149A
FOURTH GEAR 		- 1 Enquire
002 86311131B
THIRD GEAR 		- 1 Enquire
003 WHT003584
SEAL RING 		- 1 Enquire
004 86311187B
INNER RING 		- 1 Enquire
005 86301133
BEARING 080 		- 1 Enquire
006 WHT003584
SEAL RING 		- 1 Enquire
007 86311261
SECOND GEAR 		- 1 Enquire
008 86311357A
SPACER 		- 1 Enquire
009 86311101D
MAIN SHAFT (To together with the ref. 2 of the table 311.03.00) 		- 1 Enquire
010 WHT002544
SEAL RING 		- 1 Enquire
011 86301897
BEARING 		- 1 Enquire
012 WHT002544
SEAL RING 		- 1 Enquire
013 N123761
SEAL RING 		- 1 Enquire
014 86311361G
FIFTH GEAR ASSEMBLY CROWN GEAR 		- 1 Enquire
015 86311228A
Roller Bearing 		- 2 Enquire
016 86301374A
BUSHING 		- 1 Enquire
017 86311309B
SYNCHRONIZING GEAR D.71/76 + CROWN GEAR 		- 1 Enquire
018 86311389F
SIXTH GEAR ASSEMBLY CROWN GEAR 		- 1 Enquire
019 86311693
INNER RING 		- 1 Enquire
020 WHT003584
SEAL RING 		- 1 Enquire
021 86301845
BEARING 		- 1 Enquire
022 86301618
RING NUT 		- 1 Enquire
023 900000130
GREASE 		- 1 Enquire
