Gearbox Oil Pump of Lamborghini Lamborghini Murcielago LP670

View All

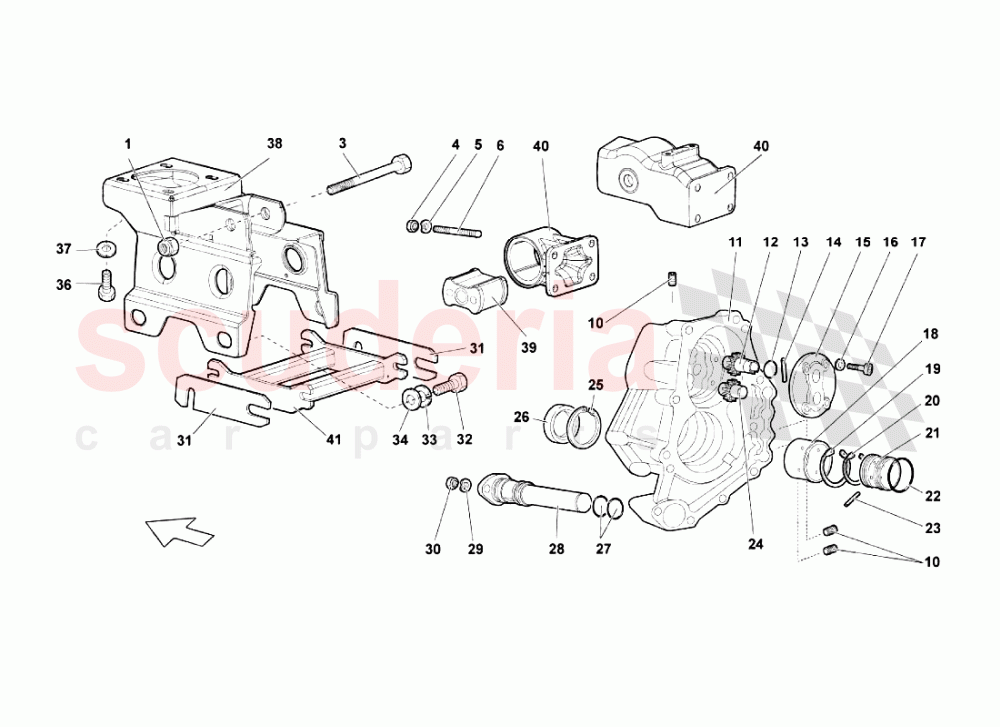

Lamborghini Murcielago LP670 - Gearbox Oil Pump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N10268603	NUT M14X1,5	N10268603 NUT M14X1,5	-	1	Enquire
003	N10306403	SCREW M14X1,5X85	N10306403 SCREW M14X1,5X85	-	1	Enquire
004	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	4	Enquire
005	410422395	WASHER	410422395 WASHER	-	4	Enquire
006	WHT002945	STUD BOLT M8X18	WHT002945 STUD BOLT M8X18	-	4	Enquire
010	86301729	PLUG	86301729 PLUG	-	3	Enquire
011	86301271	FRONT GEARBOX BODY	86301271 FRONT GEARBOX BODY	-	1	Enquire
012	86315021	GEAR	86315021 GEAR	-	1	Enquire
013	WHT003523	SEAL RING	WHT003523 SEAL RING	-	1	Enquire
014	WHT003690	PIN	WHT003690 PIN	-	1	Enquire
015	86315141	COVER	86315141 COVER	-	1	Enquire
016	WHT001197A	WASHER	WHT001197A WASHER	-	4	Enquire
017	N10546402	SCREW M6X16	N10546402 SCREW M6X16	-	4	Enquire
018	86301155	BUSHING	86301155 BUSHING	-	1	Enquire
019	WHT003581	SEAL RING	WHT003581 SEAL RING	-	1	Enquire
020	N122902	RETAINING RING	N122902 RETAINING RING	-	1	Enquire
021	86315167	BUSHING	86315167 BUSHING	-	1	Enquire
022	86323135	PISTON RING	86323135 PISTON RING	-	4	Enquire
023	WHT003583	JOURNAL	WHT003583 JOURNAL	-	1	Enquire
024	86315127	GEAR	86315127 GEAR	-	1	Enquire
025	N122902	RETAINING RING	N122902 RETAINING RING	-	1	Enquire
026	86311321	SEAL RING	86311321 SEAL RING	-	1	Enquire
027	WHT003524	SEAL RING	WHT003524 SEAL RING	-	2	Enquire
028	86301516A	OIL FILTER	86301516A OIL FILTER	-	1	Enquire
029	WHT000771	WASHER	WHT000771 WASHER	-	2	Enquire
030	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	-	2	Enquire
031	410711288A	ADJUSTMENT SHIM	410711288A ADJUSTMENT SHIM	-	6	Enquire
032	N10518402	SCREW M8X30	N10518402 SCREW M8X30	-	4	Enquire
033	N152785	WASHER 8.4	N152785 WASHER 8.4	-	4	Enquire
034	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	4	Enquire
036	WHT002951	Hexagon Head Bolt M8x1.25x23	WHT002951 Hexagon Head Bolt M8x1.25x23	-	4	Enquire
037	N90840802	WASHER	N90840802 WASHER	-	4	Enquire
038	410713292A	SUPPORT (MANUAL GEARBOX)	410713292A SUPPORT (MANUAL GEARBOX)	-	1	Enquire
039	410399663B	SILENTBLOC	410399663B SILENTBLOC	-	1	Enquire
040	86399213	SUPPORT (WITH 0024013586 - MANUAL GEARBOX)	86399213 SUPPORT (WITH 0024013586 - MANUAL GEARBOX)	-	1	Enquire
040	86399213B	SUPPORT (E-GEAR)	86399213B SUPPORT (E-GEAR)	-	1	Enquire
041	410399115A	GEARBOX BRACKET	410399115A GEARBOX BRACKET	-	1	Enquire
