Lamborghini Murcielago LP670 - Front Differential Case

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

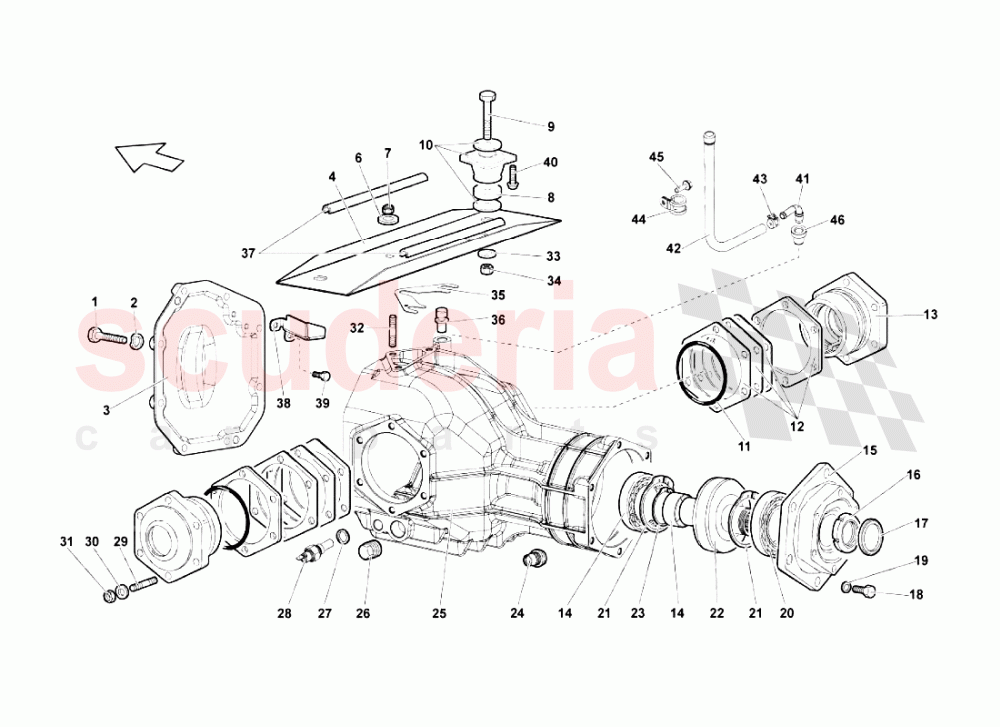

Front Differential Case of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N10545402
SCREW M8X25.00-S1-N 		- 8 Enquire
002 WHT001514
WASHER 		- 8 Enquire
003 1S409410B
COVER 		- 1 Enquire
004 410805153
SUPPORT 		- 1 Enquire
006 WHT001942
WASHER 		- 3 Enquire
007 N1118410
NUT M8 		- 3 Enquire
008 410801499
SPACER 		- 2 Enquire
009 WHT002639
SCREW M12X1.25X70X30 		- 2 Enquire
010 410805991
SUPPORT 		- 2 Enquire
011 WHT002158
SEAL RING 		- 2 Enquire
012 1S409448C
0.075 MM ADJUSTMENT SHIM 		- 3 Enquire
012 1S409448D
0.050 MM ADJUSTMENT SHIM 		- 3 Enquire
012 1S409448B
2.0 MM ADJUSTMENT SHIM 		- 2 Enquire
012 1S409448H
2 MM ADJUSTMENT 		- 2 Enquire
012 1S409448G
1 MM ADJUSTMENT 		- 1 Enquire
013 1S409828A
FLANGE 		- 2 Enquire
014 1S409770
BEARING 		- 1 Enquire
015 1S409129A
FLANGE 		- 1 Enquire
016 1S409761
RING NUT 		- 1 Enquire
017 1S409887
SEAL RING 		- 1 Enquire
018 N10545402
SCREW M8X25.00-S1-N 		- 6 Enquire
019 WHT001514
WASHER 		- 6 Enquire
020 1S409561
BEARING 		- 1 Enquire
021 N123501
RETAINING RING 		- 2 Enquire
022 1S409435B
VISCOUS COUPLING 		- 1 Enquire
023 1S409297
SEAL RING 		- 1 Enquire
024 1S409965
MAGNETIC PLUG 		- 1 Enquire
025 1S409149A
FRONT DIFFERENTIAL CASE 		- 1 Enquire
026 86301141
MAGNETIC PLUG 		- 1 Enquire
027 N138492
WASHER 		- 1 Enquire
028 1S919529
SENSOR 		- 1 Enquire
029 WHT003164
STUD BOLT M8X35 		- 12 Enquire
030 WHT001514
WASHER 		- 12 Enquire
031 N1100845
NUT M8X1,25X6,5 		- 12 Enquire
032 WHT003164
STUD BOLT M8X35 		- 3 Enquire
033 N90840802
WASHER 		- 2 Enquire
034 WHT003355
NUT M12X1,25 		- 2 Enquire
035 1S409267F
1.0 MM SHIM 		- 4 Enquire
037 400133338
GASKET 		- 2 Enquire
038 1S409194
BULKHEAD 		- 1 Enquire
039 N90305304
SCREW M6X10 		- 2 Enquire
040 N90929202
SCREW M10X20.0 		- 4 Enquire
041 2D525118B
ELBOW FITTING 		- 1 Enquire
042 1S409847
OIL BREATHER PIPE 		- 1 Enquire
043 N90686701
SPRING BAND CLAMP 		- 1 Enquire
044 N206027
CLAMP 		- 1 Enquire
045 N10338903
SCREW M6X16 		- 1 Enquire
046 1S409190
BUSHING 		- 1 Enquire
