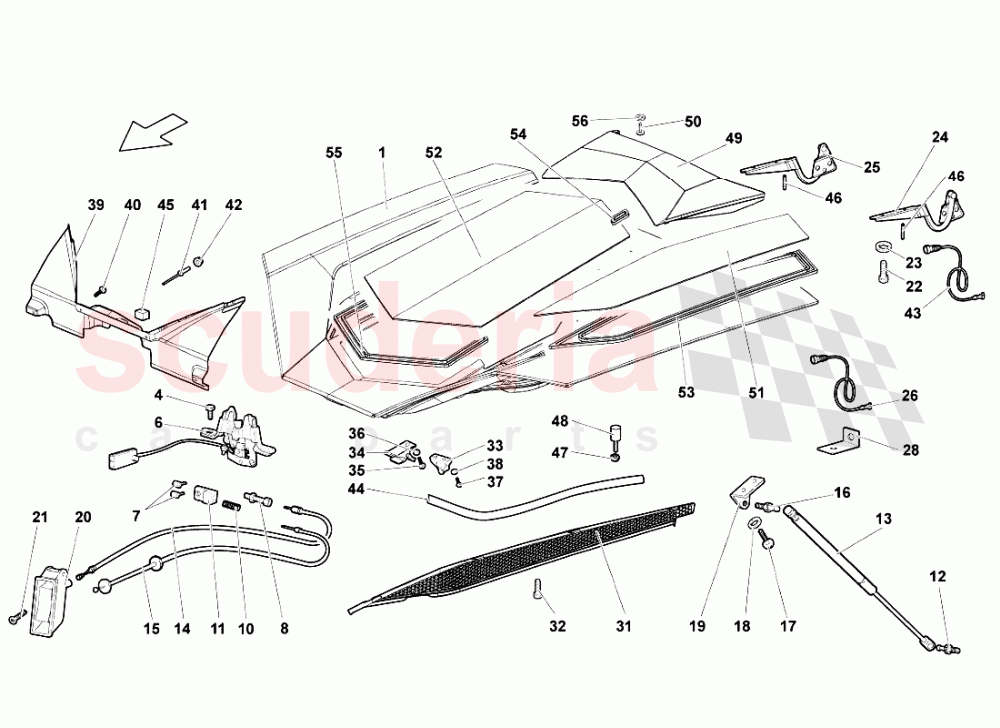

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	417827021	ENGINE HOOD ASSEMBLY (INCLUDES REF. 49)	417827021 ENGINE HOOD ASSEMBLY (INCLUDES REF. 49)	$31,794.25	1
013	418827401A	GAS STRUT	418827401A GAS STRUT	$114.97	2
026	417971170C	STOP LAMP HINGE HARNESS	417971170C STOP LAMP HINGE HARNESS	$21.31	1
049	417827193	COVERING	417827193 COVERING	$7,358.84	1
050	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	$1.07	4
051	417827631	LEFT WINDOW	417827631 LEFT WINDOW	$2,284.93	1
051	417827632	RIGHT WINDOW	417827632 RIGHT WINDOW	$2,284.93	1
052	417827446A	WINDOW	417827446A WINDOW	$3,353.51	1
053	417827651	LH GASKET	417827651 LH GASKET	$237.88	1
053	417827652	RH GASKET	417827652 RH GASKET	$237.88	1
054	417827652A	LH GASKET	417827652A LH GASKET	$88.18	1
054	417827652B	RH GASKET	417827652B RH GASKET	$92.61	1
055	417827651A	GASKET	417827651A GASKET	$324.59	1
056	N10612001	WASHER	N10612001 WASHER	$0.48	4
